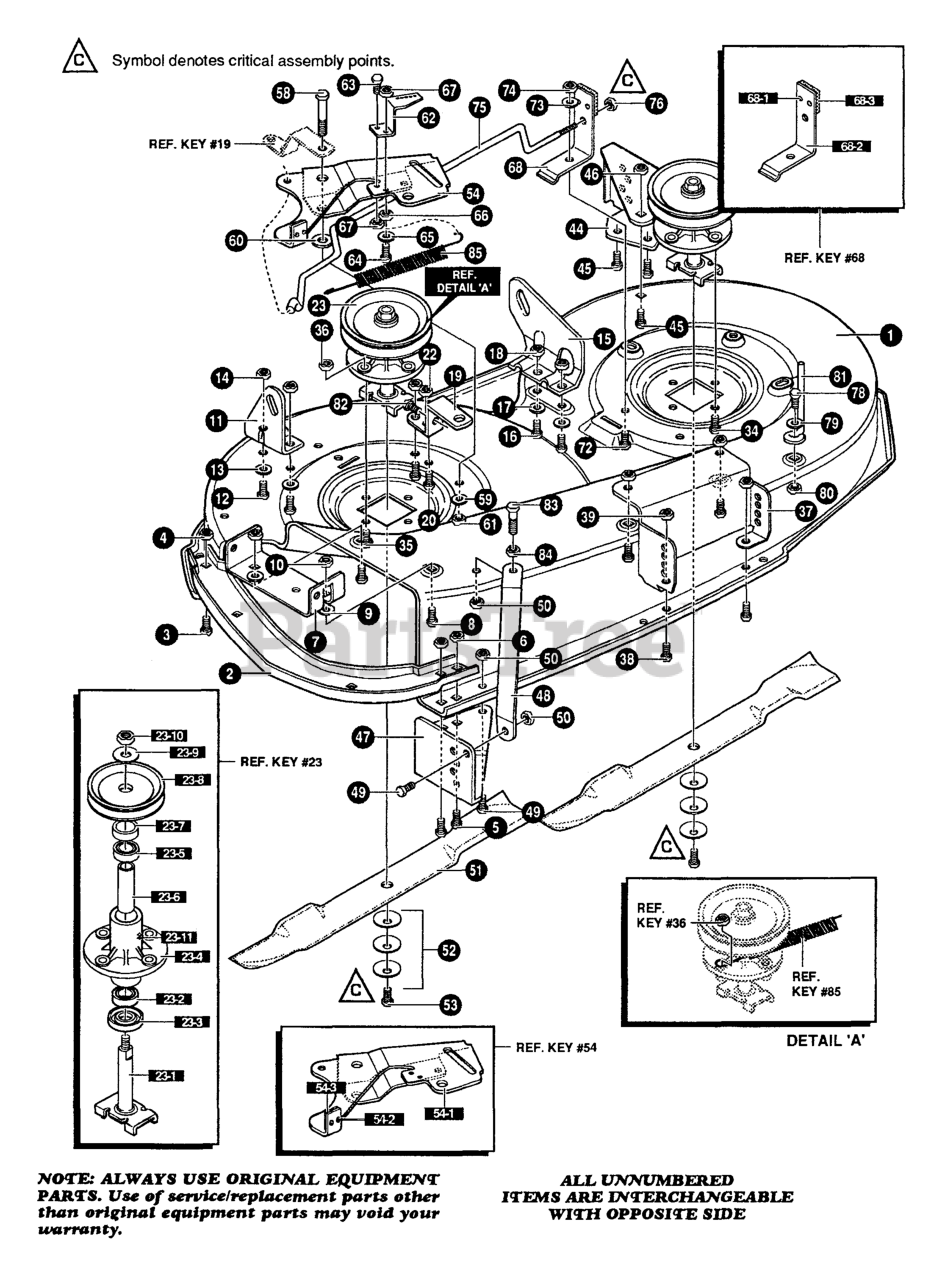

G 4315010 - Murray 43" Lawn Tractor (1997) Pre-painted Deck Assembly Parts Diagram

43" Lawn Tractor

Pre-painted Deck Assembly Parts Diagram

  • Title

1

Murray 325116

43" DECK KIT

$

$

Currently unavailable

2

Murray 326480

TOE GUARD

$

$

Currently unavailable

3

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

4

Murray 1498

NUT, 5/16-18

$

$

Not available

5

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

6

Murray 1498

NUT, 5/16-18

$

$

Not available

7

Murray 317017MA

BRACKET, CHUTE MOUNT

$44.99

$

Usually ships in 2-12 days

0

8

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

9

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

10

Murray 1498

NUT, 5/16-18

$

$

Not available

11

Murray 313929MA

BRACKET, RH, LIFT REAR

$56.99

$

Usually ships in 2-12 days

0

12

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

13

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

14

Murray 1498

NUT, 5/16-18

$

$

Not available

15

Murray 310667MA

BRACKET, LH, LIFT REAR

$64.99

$

Usually ships in 2-12 days

0

16

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

17

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

18

Murray 1498

NUT, 5/16-18

$

$

Not available

19

Murray 326893

BRACE, IDLER SUPPORT

$

$

Currently unavailable

20

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

22

Murray 44108

NUT, 5/16-18
(Superseded to 7044108YP)

$6.99

$

In Stock, only 1 left!

0

23

Murray 337733

QUILL, W/ZERKS

$

$

Currently unavailable

23-1

Murray 56425MA

SHAFT/SADDLE

$62.99

$

Usually ships in 2-12 days

0

23-2

Murray 1255MA

BEARING, BALL

$7.99

$

Usually ships in 2-12 days

0

23-3

Murray 50616MA

DUST SHIELD

$4.99

$

In Stock, only 2 left!

0

23-4

Murray 50702

QUILL HSG EXP
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 6

0

23-5

Murray 49562MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

23-6

Murray 50818MA

SPACER, SLEEVE .669 x .88 x 3.797

$11.99

$

Usually ships in 2-12 days

0

23-7

Murray 331067MA

SPACER, QUILL

$15.99

$

Usually ships in 2-12 days

0

23-8

Murray 333132

PULLEY, QUILL, VSL

$

$

Currently unavailable

23-9

Murray 56365MA

WASHER, SPECIAL QUILL

$5.49

$

Usually ships in 2-12 days

0

23-10

Murray 1282MA

NUT, 7/16-20

$4.49

$

Usually ships in 2-12 days

0

23-11

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

34

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

35

Murray 300345MA

SCREW, 5/16-18 x 1.38

$

$

Not available

36

Murray 1498

NUT, 5/16-18

$

$

Not available

37

Murray 317040MA

BRACKET FRONT

$55.99

$

Usually ships in 2-12 days

0

38

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

39

Murray 1498

NUT, 5/16-18

$

$

Not available

44

Murray 317041MA

BRACKET, GAGE WHEEL, LH

$83.99

$

Usually ships in 2-12 days

0

45

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

46

Murray 1498

NUT, 5/16-18

$

$

Not available

47

Murray 322464

BRACKET, GAGE WHEEL, RH, FRONT

$

$

Currently unavailable

48

Murray 314282

BRACKET, STABILIZER

$

$

Currently unavailable

49

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

50

Murray 1498

NUT, 5/16-18

$

$

Not available

51

Murray 330278MA

BLADE, 21.70

$

$

Not available

52

Murray 2483

WASHER, .39 ID X 1.25 D X .07

$

$

Currently unavailable

53

Murray 47665MA

SCREW, 3/8-24 X 1.25

$6.49

$

Usually ships in 2-12 days

0

54

Murray 322120

IDLER ARM ASSEMBLY

$

$

Currently unavailable

54-1

Murray 322116

ARM, IDLER

$

$

Currently unavailable

54-2

Murray 41601

RIVET

$1.49

$

Usually ships in 2-12 days

0

54-3

Murray 306973MA

BRAKE PAD

$

$

Not available

58

Murray 304420MA

BOLT, .500 X 2.15

$5.49

$

Usually ships in 2-12 days

0

59

Murray 996416

WASHER, FLAT .391 x 1.00 x .125

$

$

Currently unavailable

60

Murray 996307MA

WASHER, FLAT .391 x 1.00 x .209

$3.49

$

Usually ships in 2-12 days

0

61

Murray 45171MA

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

62

Murray 326249

BRACKET, EXTENSION IDLER

$

$

Currently unavailable

63

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

64

Murray 180083

SCREW, 5/16-18 x 1.50

$1.99

$

Usually ships in 2-12 days

0

65

Murray 446363MA

WASHER, FLAT .375 X .88 X .082

$3.49

$

Usually ships in 2-12 days

0

66

Murray 271184

NUT, 5/16-18

$1.99

$

Usually ships in 2-12 days

0

67

Murray 1498

NUT, 5/16-18

$

$

Not available

68

Murray 321828

BLADE BRAKE ASSEMBLY

$

$

Not available

68-1

Murray 135624

RIVET

$

$

Currently unavailable

68-2

Murray 304119

BRAKE ARM

$

$

Currently unavailable

68-3

Murray 306973MA

BRAKE PAD

$

$

Not available

72

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

73

Murray 120393

WASHER, FLAT .344 X .69 X .065

$

$

Not available

74

Murray 1498

NUT, 5/16-18

$

$

Not available

75

Murray 314079

ROD, BRAKE

$

$

Currently unavailable

76

Murray 1502

NUT, 1/4-20

$

$

Not available

78

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

79

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

80

Murray 1498

NUT, 5/16-18

$

$

Not available

81

Murray 325965MA

BELT GUIDE

$14.99

$

In Stock, only 1 left!

0

82

Murray 308231

SCREW, 1/4-20 x 1.25

$

$

Not available

83

Murray 311104

SCREW, 5/16-18 x 5.00

$1.99

$

Usually ships in 2-12 days

0

84

Murray 271184

NUT, 5/16-18

$1.99

$

Usually ships in 2-12 days

0

85

Murray 35410

SPRING

$

$

Currently unavailable
