G 4315110 - Murray 43" Lawn Tractor (1997) Steering Assembly Parts Diagram

43" Lawn Tractor

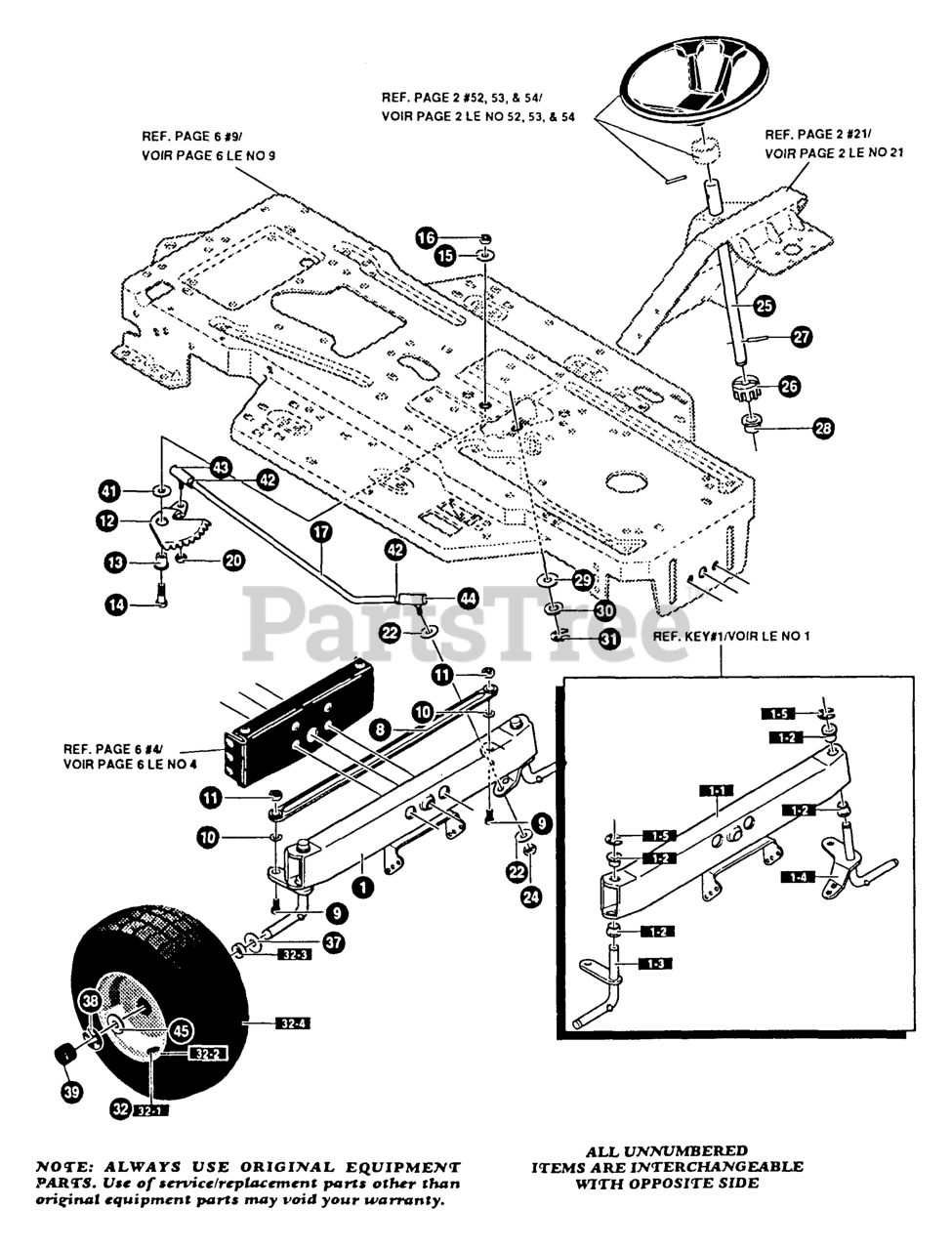

Steering Assembly Parts Diagram

  • Title

1

AXLE, FRONT ASSY

Note: (Order individual parts - Assembly not available)

$

$

Not available

1-1

Murray 300272

FRONT AXLE

$

$

Currently unavailable

1-2

Murray 52407MA

SPINDLE BEARING

$12.99

$

Usually ships in 2-12 days

0

1-3

Murray 9180

ASSY, SPINDLE, RH

$

$

Not available

1-4

Murray 314088

ASSY, SPINDLE, LH

$

$

Currently unavailable

1-5

Murray 36625

RING, RETEX

$

$

Currently unavailable

8

Murray 304590MA

TIE ROD ASSY

$37.99

$

Usually ships in 2-12 days

0

9

Murray 180128MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

10

Murray 120382

WASHER

$

$

Currently unavailable

11

Murray 1499MA

NUT
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

12

Murray 58289MA

SECTOR, STEER

$55.99

$

Usually ships in 2-12 days

0

13

Murray 52406MA

BEARING

$4.99

$

Usually ships in 2-12 days

0

14

Murray 180177

SCREW

$1.49

$

Usually ships in 2-12 days

0

15

Murray 22265MA

WASHER

$4.99

$

Usually ships in 2-12 days

0

16

Murray 1500

NUT

$

$

Currently unavailable

17

Murray 58291MA

STEERING LINK

$42.99

$

Usually ships in 2-12 days

0

20

Murray 412349MA

NUT

$4.99

$

Usually ships in 2-12 days

0

22

Murray 996416

WASHER

$

$

Currently unavailable

24

Murray 412349MA

NUT

$4.99

$

Usually ships in 2-12 days

0

25

Murray 332528

SHAFT, STEERING

$18.99

$

Usually ships in 2-12 days

0

26

Murray 58244MA

PINION, STEER

$8.99

$

Usually ships in 2-12 days

0

27

Murray 58274MA

PIN,DOWEL

$3.99

$

Usually ships in 2-12 days

0

28

Murray 301410MA

BEARING

$4.99

$

Usually ships in 2-12 days

0

29

Murray 301398MA

WASHER

$10.99

$

Usually ships in 2-12 days

0

30

Murray 021682

WASHER

$3.49

$

Usually ships in 2-12 days

0

31

Murray 36625

RING, RETEX

$

$

Currently unavailable

32

Murray 692287

TIRE & RIM

$10.99

$

Usually ships in 2-12 days

0

32-1

Murray 338512

VALVE STEM

$

$

Not available

32-2

Murray 338517MA

RIM, WHEEL

$93.99

$

In Stock, only 1 left!

0

32-3

Murray 338513

BEARING

$

$

Not available

32-4

Murray 338516

TIRE

$

$

Currently unavailable

37

Murray 642

WASHER

$

$

Currently unavailable

38

Murray 36625

RING, RETEX

$

$

Currently unavailable

39

Murray 40394MA

HUB CAP

$3.99

$

Usually ships in 2-12 days

0

41

Murray 49998

WASHER

$1.49

$

Usually ships in 2-12 days

0

42

Murray 124925MA

NUT

$3.99

$

Usually ships in 2-12 days

0

43

Murray 57158

BALL JOINT

$

$

Currently unavailable

44

Murray 21275MA

BALL JOINT

$15.99

$

Usually ships in 2-12 days

0

45

Murray 42815MA

WASHER

$3.99

$

Usually ships in 2-12 days

0
