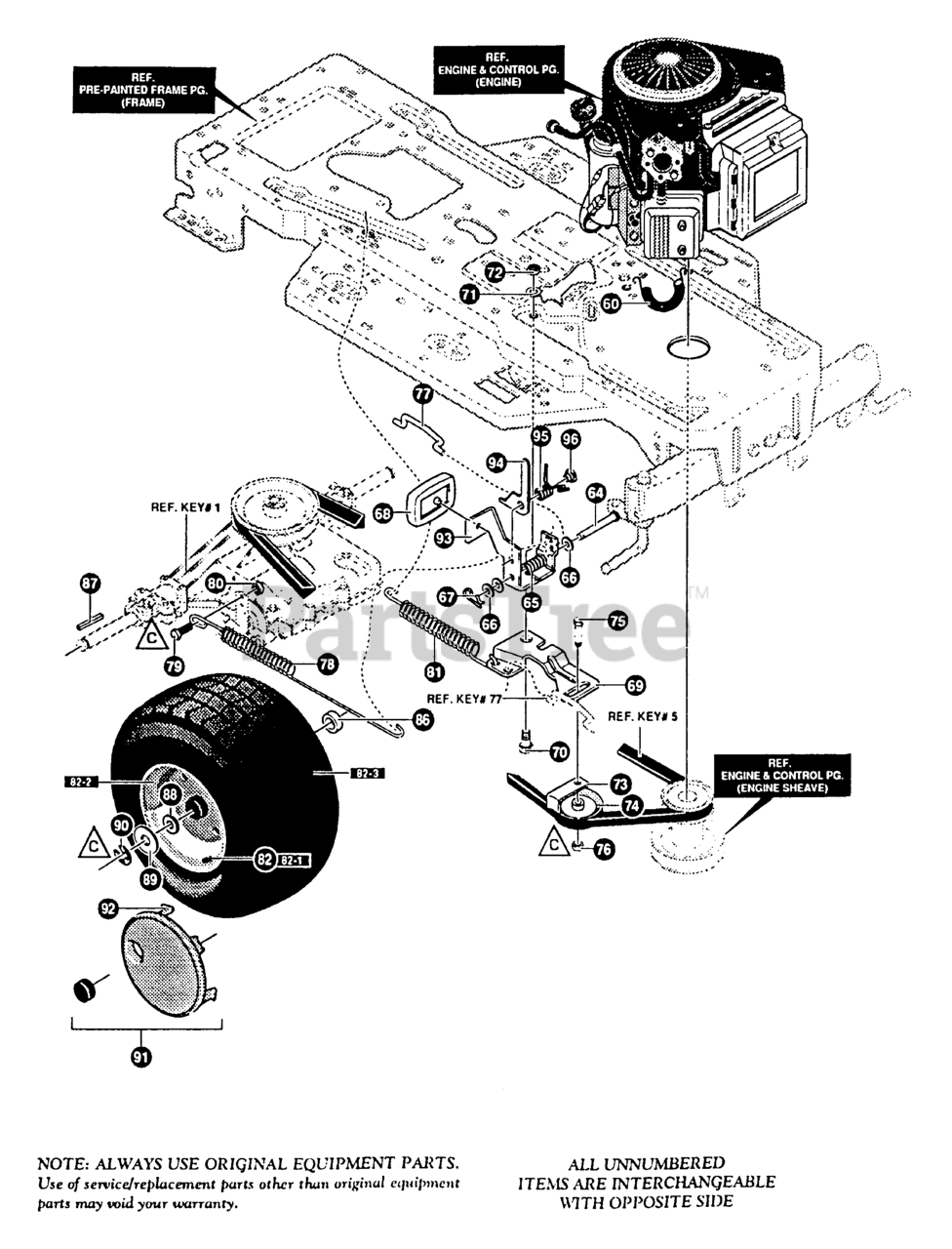

G 4315140 - Murray 43" Lawn Tractor (1997) Motion Drive Assembly (part 2) Parts Diagram

43" Lawn Tractor

Motion Drive Assembly (part 2) Parts Diagram

  • Title

60

Murray 321514

SPRING, DRAG LINK

$2.99

$

Usually ships in 2-12 days

0

64

Murray 319675

PIN, CLEVIS

$3.49

$

Usually ships in 2-12 days

0

65

Murray 57847

SPRING, BRAKE PEDAL
(Superseded to 7057847YP)

$202.99

$

Usually ships in 2-12 days

0

66

Murray 2968

WASHER, FLAT .504 X .75 X .059

$3.49

$

Usually ships in 2-12 days

0

67

Murray 56180MA

PIN, HAIR

$7.99

$

Usually ships in 2-12 days

0

68

Murray 48160MA

PAD, CLUTCH BRAKE W/PRINTING

$4.49

$

Usually ships in 2-12 days

0

69

Murray 320381

ARM, IDLER TRACTION

$

$

Currently unavailable

70

Murray 329989MA

BOLT, .625 X .135

$3.99

$

Usually ships in 2-12 days

0

71

Murray 45602MA

WASHER, FLAT .333 X .87 X .119

$3.99

$

Usually ships in 2-12 days

0

72

Murray 1498

NUT, 5/16-18

$

$

Not available

73

Murray 39659MA

RETAINER, BELT

$14.99

$

Usually ships in 2-12 days

0

74

Murray 35374

PULLEY, IDLER

$

$

Currently unavailable

75

Murray 45892MA

BOLT, 3/8-16 X 1.50

$4.49

$

Usually ships in 2-12 days

0

76

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

77

Murray 57204MA

ROD, CLUTCH

$31.99

$

Usually ships in 2-12 days

0

78

Murray 325937

SPRING, BRAKE

$8.49

$

Usually ships in 2-12 days

0

79

Murray 326131

BOLT, .495 X .31

$

$

Currently unavailable

80

Murray 1498

NUT, 5/16-18

$

$

Not available

81

Murray 330505MA

SPRING, CLUTCH

$18.99

$

Usually ships in 2-12 days

0

82

Murray 692290

TIRE & RIM ASSEMBLY, 20"

$

$

Currently unavailable

82-1

Murray 338512

VALVE STEM

$

$

Not available

81-2

Murray 338524

RIM, WHEEL

$

$

Currently unavailable

82-3

Murray 338526

TIRE, 10"

$

$

Currently unavailable

86

Murray 338184

SPACER

$

$

Currently unavailable

87

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

88

Murray 642

WASHER, FLAT .755 X 1.31 X .075

$

$

Currently unavailable

89

Murray 42815MA

WASHER, FLAT .755 X 1.53 X .07

$3.99

$

Usually ships in 2-12 days

0

90

Murray 36625

RING, RETEX

$

$

Currently unavailable

91

Murray 338428

HUB CAP, 8"

$5.49

$

Usually ships in 2-12 days

0

92

Murray 306669

CLIP, HUBCAP TINN

$

$

Not available

93

Murray 325941-853

PEDAL CLUTCH/BRAKE

$

$

Currently unavailable

94

Murray 9016

LEVER, PARK BRAKE

$2.49

$

Usually ships in 2-12 days

0

95

Murray 57828MA

SPRING, PARKING BRAKE

$16.99

$

Usually ships in 2-12 days

0

96

Murray 57829

RIVET

$

$

Currently unavailable
