G 4315140 - Murray 43" Lawn Tractor (1997) Mower Suspension Assembly Parts Diagram

43" Lawn Tractor

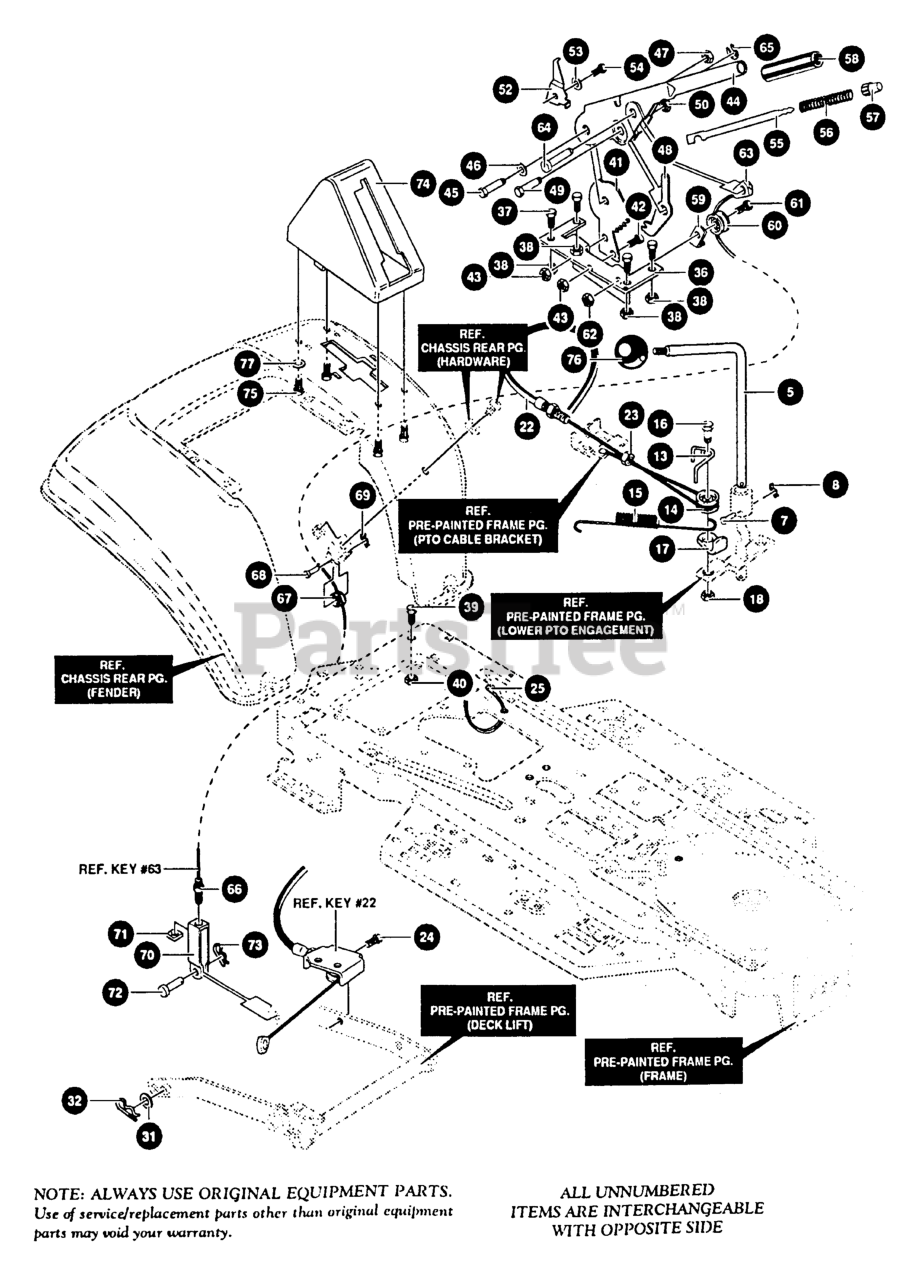

Mower Suspension Assembly Parts Diagram

  • Title

5

Murray 338049

LEVER, PTO UPPER

$6.49

$

Usually ships in 2-12 days

0

7

Murray 304877

PIN, CLEVIS .25D X 1.094

$

$

Currently unavailable

8

Murray 36368MA

PIN, HAIR

$3.99

$

Usually ships in 2-12 days

0

13

Murray 324032MA

SPRING, CABLE KEEPER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 48306MA

PULLEY, METAL

$24.99

$

Usually ships in 2-12 days

0

15

Murray 316648MA

SPRING

$6.49

$

Usually ships in 2-12 days

0

16

Murray 324045

BOLT, .375 X .565

$4.99

$

Usually ships in 2-12 days

0

17

Murray 1288MA

BRACKET, CABLE RETAINER

$

$

Not available

18

Murray 1502

NUT, 1/4-20

$

$

Not available

12

Murray 324055MA

ASSEMBLY, CABLE PTO ENGAGE

$74.99

$

Usually ships in 2-12 days

0

23

Murray 120613

NUT, 1/4-28

$1.99

$

Usually ships in 2-12 days

0

24

Murray 335639

SCREW, 5/16-18 x 0.62

$

$

Currently unavailable

25

Murray 57444

TIE, CABLE

$

$

Not available

31

Murray 417098MA

WASHER, FLAT .531 X 1.06 X .063

$3.99

$

Usually ships in 2-12 days

0

32

Murray 8260

PIN, HAIR

$

$

Currently unavailable

36

Murray 313926

BRACKET, HEIGHT ADJUST

$8.49

$

Usually ships in 2-12 days

0

37

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

38

Murray 1498

NUT, 5/16-18

$

$

Not available

39

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

40

Murray 1498

NET, 5/16-18

$

$

Not available

41

Murray 301238

QUADRANT, HEIGHT ADJUST

$

$

Currently unavailable

42

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

43

Murray 1498

NUT, 5/16-18

$

$

Not available

44

Murray 322292-853

HANDLE, LIFT SHORT

$

$

Currently unavailable

45

Murray 300171MA

BOLT, .500 X .170

$1.99

$

Usually ships in 2-12 days

0

46

Murray 996418

WASHER, FLAT .506 X .75 X .024

$

$

Currently unavailable

47

Murray 44108

NUT, 5/16-18
(Superseded to 7044108YP)

$6.99

$

In Stock, only 1 left!

0

48

Murray 301239MA

PAWL, SQUARE

$5.99

$

Usually ships in 2-12 days

0

49

Murray 300171MA

BOLT, .500 X .270

$1.99

$

Usually ships in 2-12 days

0

50

Murray 44108

NUT, 5/16-18
(Superseded to 7044108YP)

$6.99

$

In Stock, only 1 left!

0

52

Murray 9435MA

POINTER, HEIGHT ADJUST

$119.99

$

Usually ships in 2-12 days

0

53

Murray 138479

WASHER, .195 X .41 X .03

$1.99

$

Usually ships in 2-12 days

0

54

Murray 35287

SCREW, #8-32 X .38

$

$

Currently unavailable

55

Murray 303027MA

ROD, ACTUATOR-SHORT

$27.99

$

Usually ships in 2-12 days

0

56

Murray 58326MA

SPRING, HEIGHT ADJUST

$25.99

$

Usually ships in 2-12 days

0

57

Murray 58325MA

KNOB, HEIGHT ADJUST

$5.99

$

Usually ships in 2-12 days

0

58

Murray 58329MA

GRIP, W/ HOLE BLACK

$5.99

$

In Stock, only 1 left!

0

59

Murray 9149

BRACKET, CABLE RETAINER

$

$

Currently unavailable

60

Murray 48306MA

PULLEY, METAL

$24.99

$

Usually ships in 2-12 days

0

61

Murray 58336

BOLT, .375 X .375

$

$

Not available

62

Murray 1502

NUT, 1/4-20

$

$

Not available

63

Murray 314177MA

ASSEMBLY, CABLE LIFT

$31.99

$

Usually ships in 2-12 days

0

64

Murray 300310MA

PIN, CLEVIS

$5.99

$

In Stock, only 1 left!

0

65

Murray 300311MA

RING, RET E

$3.49

$

Usually ships in 2-12 days

0

66

Murray 120375

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

67

Murray 48306MA

PULLEY, METAL

$24.99

$

Usually ships in 2-12 days

0

68

Murray 300317

PIN, CLEVIS

$1.49

$

Usually ships in 2-12 days

0

69

Murray 8260

PIN, HAIR

$

$

Currently unavailable

70

Murray 9405

CLEVIS, LIFT CABLE

$

$

Not available

71

Murray 120372

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

72

Murray 39522MA

PIN, CLEVIS

$3.99

$

Usually ships in 2-12 days

0

73

Murray 121222

PIN, COTTER

$

$

Not available

74

Murray 333903MA

LIFT COVER

$8.99

$

Usually ships in 2-12 days

0

75

Murray 300340

SCREW, #10 X .75

$1.99

$

Usually ships in 2-12 days

0

76

Murray 321837MA

KNOB

$6.49

$

Usually ships in 2-12 days

0

77

Murray 120392

WASHER, FLAT .281 X .63 X .065

$

$

Not available
