G 4315140 - Murray 43" Lawn Tractor (1997) Steering Assembly Parts Diagram

43" Lawn Tractor

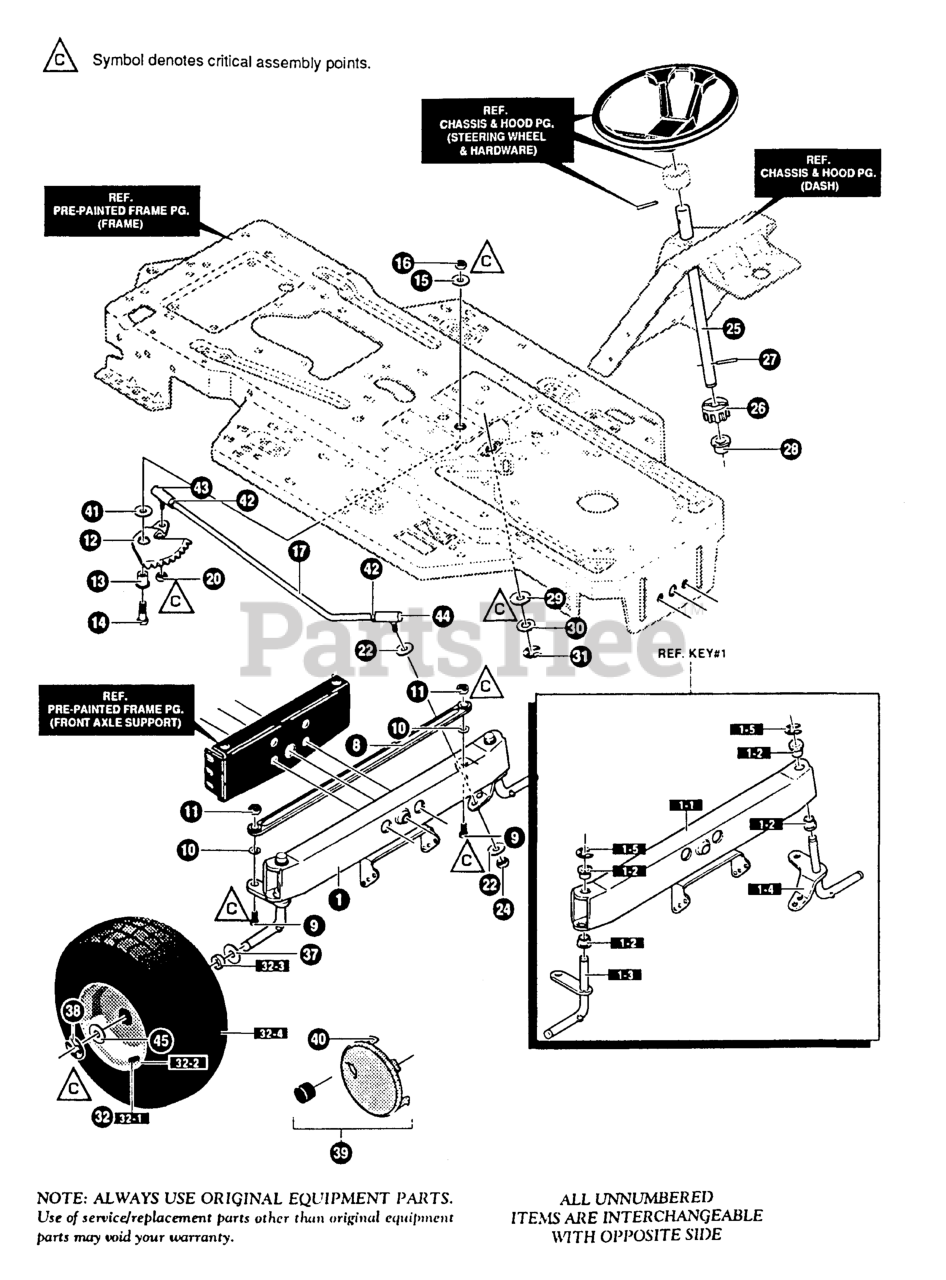

Steering Assembly Parts Diagram

  • Title

1

AXLE, FRONT ASSEMBLY

Note: (Order individual parts - Assembly not available)

$

$

Not available

1-1

Murray 300272

ASSEMBLY FRONT AXLE

$

$

Currently unavailable

1-2

Murray 52407MA

SPINDLE BEARING

$12.99

$

Usually ships in 2-12 days

0

1-3

Murray 9180

ASSMBLY, SPINDLE, RH

$

$

Not available

1-4

Murray 314088

ASSEMBLY, SPINDLE, LH

$

$

Currently unavailable

1-5

Murray 36625

RING, RETEX

$

$

Currently unavailable

8

Murray 304590MA

TIE ROD ASSEMBLY

$37.99

$

Usually ships in 2-12 days

0

9

Murray 180128MA

SCREW, 3/8-16 X 1.75

$3.99

$

Usually ships in 2-12 days

0

10

Murray 120382

WASHER, .393 X .68 X. 10

$

$

Currently unavailable

11

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

12

Murray 58289MA

SECTOR, STEERING

$55.99

$

Usually ships in 2-12 days

0

13

Murray 52406MA

BEARING, FLANGE

$4.99

$

Usually ships in 2-12 days

0

14

Murray 180177

SCREW, 1/2-13 X 1.50

$1.49

$

Usually ships in 2-12 days

0

15

Murray 22265MA

WASHER, FLAT .515 X 1.38 X .119

$4.99

$

Usually ships in 2-12 days

0

16

Murray 1500

NUT, 1/2-13

$

$

Currently unavailable

17

Murray 58291MA

STEERING LINK

$42.99

$

Usually ships in 2-12 days

0

20

Murray 412349MA

NUT, 3/8-14

$4.99

$

Usually ships in 2-12 days

0

22

Murray 996416

WASHER, FLAT .391 X 1.00 X. 125

$

$

Currently unavailable

24

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

25

Murray 332528

SHAFT, STEERING

$18.99

$

Usually ships in 2-12 days

0

26

Murray 58244MA

PINION, STEERING

$8.99

$

Usually ships in 2-12 days

0

27

Murray 58274MA

PIN, DOWEL

$3.99

$

Usually ships in 2-12 days

0

28

Murray 301410MA

BEARING, FLANGE

$4.99

$

Usually ships in 2-12 days

0

29

Murray 301398MA

WASHER, FORMED

$10.99

$

Usually ships in 2-12 days

0

30

Murray 021682

WASHER, FLAT .765 x 1.25 x .042

$3.49

$

Usually ships in 2-12 days

0

31

Murray 36625

RING, RETEX

$

$

Currently unavailable

32

Murray 692287

TIRE & RIM ASSEMBLY, PU 15 X 6.0 X 6

$10.99

$

Usually ships in 2-12 days

0

32-1

Murray 338512

VALVE STEM

$

$

Not available

32-2

Murray 338517MA

RIM, WHEEL

$93.99

$

In Stock, only 1 left!

0

32-3

Murray 338513

BEARING

$

$

Not available

32-4

Murray 338516

TIRE, 15 X 6-6

$

$

Currently unavailable

37

Murray 642

WASHER, FLAT .755 X 1.31 X .075

$

$

Currently unavailable

38

Murray 36625

RING, RETEX

$

$

Currently unavailable

39

Murray 338429

HUB CAP, 6"

$

$

Currently unavailable

40

Murray 306669

CLIP, HUBCAP

$

$

Not available

41

Murray 49998

WASHER, FLAT .520 X 1.25 X .209

$1.49

$

Usually ships in 2-12 days

0

42

Murray 124925MA

NUT, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

43

Murray 57158

BALL JOINT, 3/8 THD SHORT STUD

$

$

Currently unavailable

44

Murray 21275MA

BALL JOINT, 3/8 THD LONG STUD

$15.99

$

Usually ships in 2-12 days

0

45

Murray 42815MA

WASHER, FLAT .755 X 1.53 X .07

$3.99

$

Usually ships in 2-12 days

0
