G 4318030 - Murray 43" Lawn Tractor (1997) Fender Assembly Parts Diagram

43" Lawn Tractor

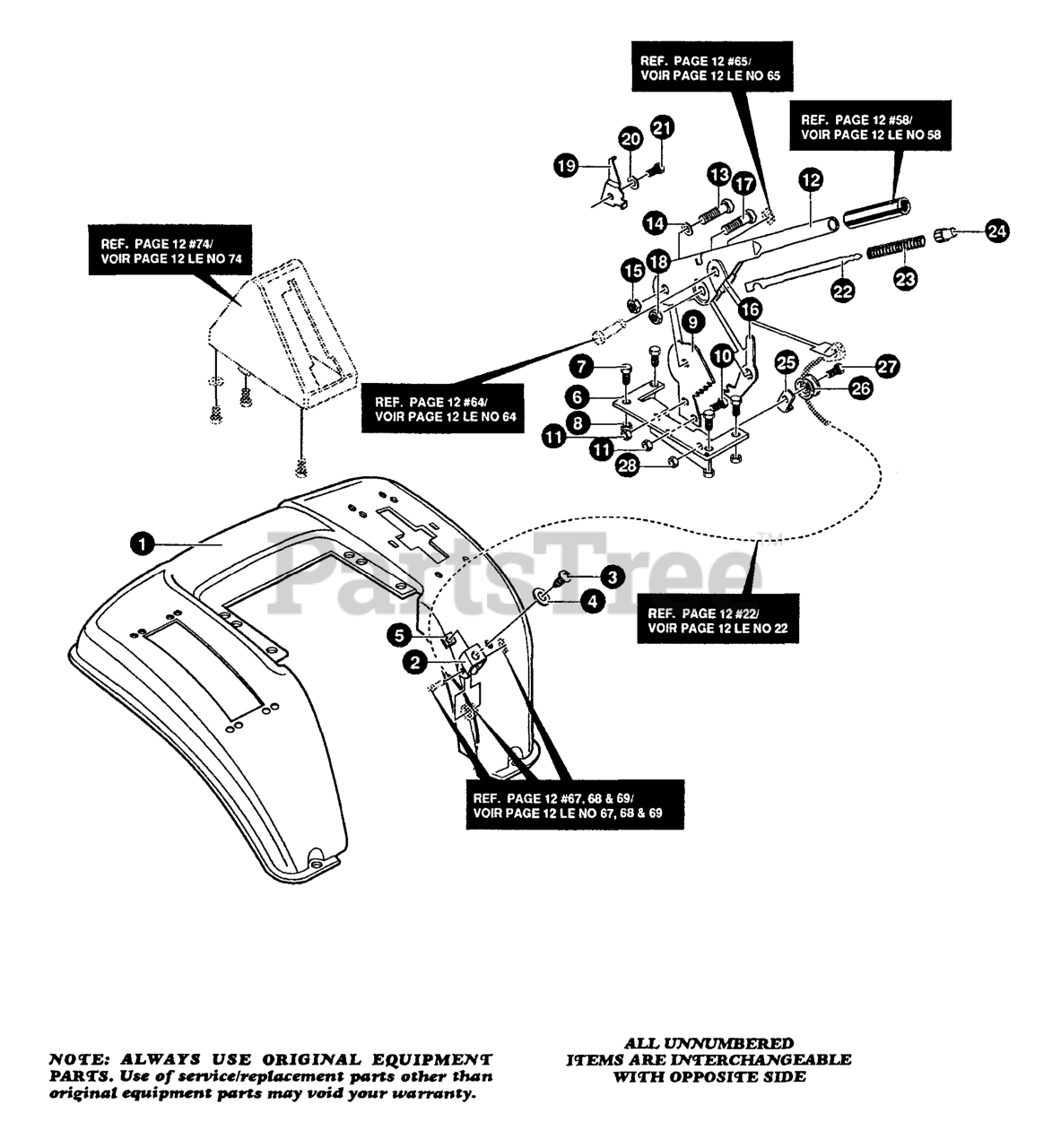

Fender Assembly Parts Diagram

  • Title

1

Murray 308653-884

FENDER

$

$

Currently unavailable

2

Murray 9239

CLEVIS

$

$

Currently unavailable

3

Murray 439455

SCREW

$1.49

$

Usually ships in 2-12 days

0

4

Murray 301551

WASHER

$1.49

$

Usually ships in 2-12 days

0

5

Murray 120373

NUT

$1.99

$

Usually ships in 2-12 days

0

6

Murray 313926

BRKT, HEIGHT ADJUST

$8.49

$

Usually ships in 2-12 days

0

7

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

8

Murray 1498

NUT

$

$

Not available

9

Murray 301238

QUADRANT

$

$

Currently unavailable

10

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

11

Murray 1498

NUT

$

$

Not available

12

Murray 322292

HANDLE, LIFT

$

$

Currently unavailable

13

Murray 300171MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

14

Murray 996418

WASHER

$

$

Currently unavailable

15

Murray 336171

NUT

$

$

Currently unavailable

16

Murray 301239MA

PAWL, SQUARE

$5.99

$

Usually ships in 2-12 days

0

17

Murray 300171MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

18

Murray 336171

NUT

$

$

Currently unavailable

19

Murray 9435MA

POINTER

$119.99

$

Usually ships in 2-12 days

0

20

Murray 138479

WASHER

$1.99

$

Usually ships in 2-12 days

0

21

Murray 35287

SCREW

$

$

Currently unavailable

22

Murray 303027MA

ROD, ACTUATOR

$27.99

$

Usually ships in 2-12 days

0

23

Murray 58326MA

SPRING, HEIGHT ADJUST

$25.99

$

Usually ships in 2-12 days

0

24

Murray 58325MA

KNOB

$5.99

$

Usually ships in 2-12 days

0

25

Murray 9149

CABLE BRACKET

$

$

Currently unavailable

26

Murray 48306MA

PULLEY

$24.99

$

Usually ships in 2-12 days

0

27

Murray 58336

BOLT

$

$

Not available

28

Murray 1502

NUT

$

$

Not available
