G 4318030 - Murray 43" Lawn Tractor (1997) Front Chassis & Hood Assembly Parts Diagram

43" Lawn Tractor

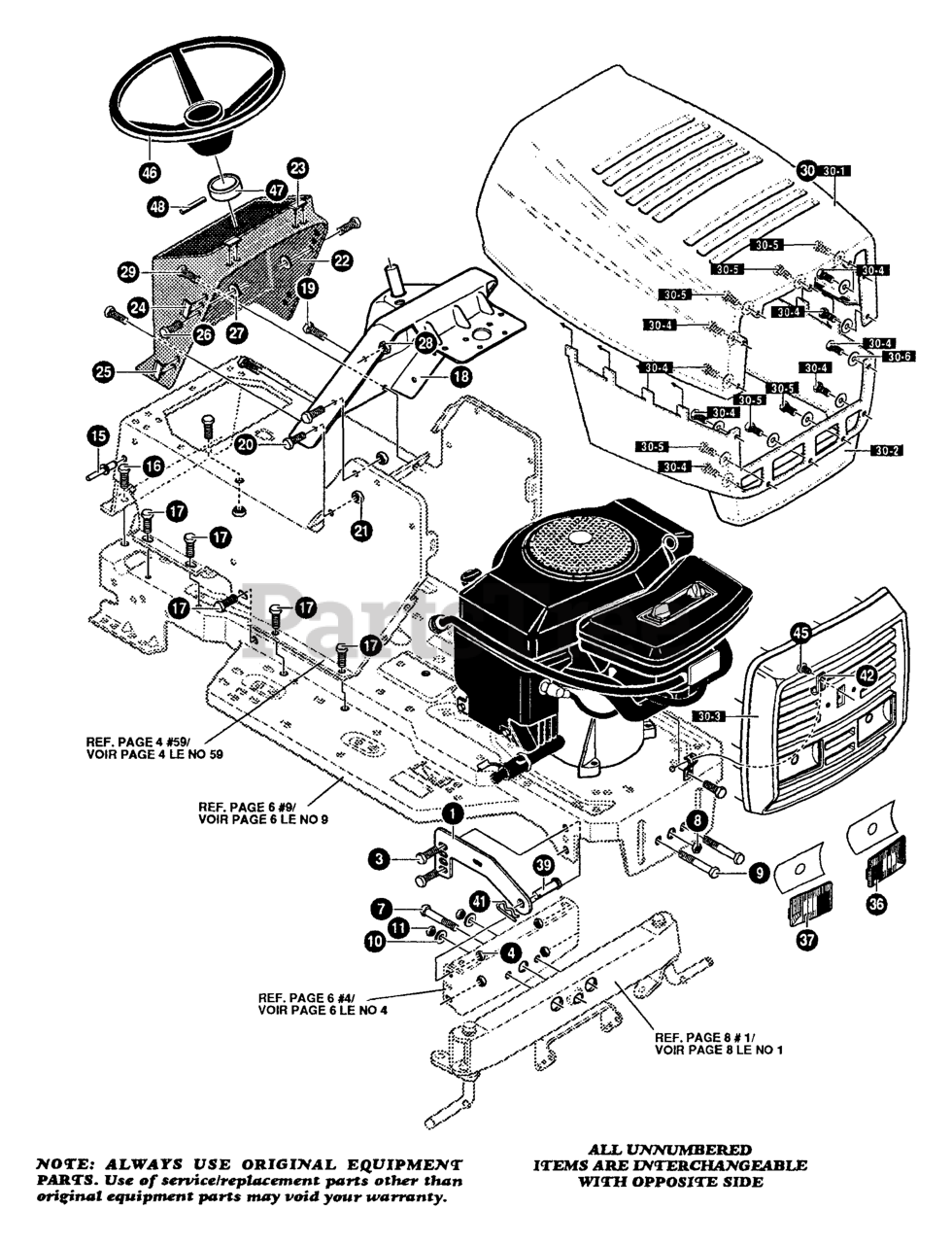

Front Chassis & Hood Assembly Parts Diagram

  • Title

1

Murray 323068-853

BRACKET, HOOD

$3.99

$

Usually ships in 2-12 days

0

3

Murray 56030

SCREW

$

$

Currently unavailable

4

Murray 55273MA

NUT

$3.99

$

Usually ships in 2-12 days

0

7

Murray 308207

BOLT

$3.99

$

Usually ships in 2-12 days

0

8

Murray 309008

NUT

$1.49

$

Usually ships in 2-12 days

0

9

Murray 180138MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

10

Murray 2483

WASHER

$

$

Currently unavailable

11

Murray 1499MA

NUT
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

15

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

17

UNKNOWN

$

$

Not available

18

Murray 324111-853

DASH

$

$

Currently unavailable

19

Murray 995346

SCREW

$1.49

$

Usually ships in 2-12 days

0

20

Murray 44811MA

SCREW

$5.99

$

Usually ships in 2-12 days

0

21

Murray 50352

NUT

$1.99

$

Usually ships in 2-12 days

0

22

Murray 331891

DASH

$

$

Currently unavailable

23

Murray 324491

BUMPER, HOOD

$6.49

$

Usually ships in 2-12 days

0

24

Murray 324491

BUMPER, HOOD

$6.49

$

Usually ships in 2-12 days

0

25

Murray 324492

BUMPER, HOOD

$1.99

$

Usually ships in 2-12 days

0

26

Murray 318139

SCREW

$

$

Not available

27

Murray 996307MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

28

Murray 1502

NUT

$

$

Not available

29

Murray 318304

SCREW

$

$

Currently unavailable

30

Murray 336500

HOOD ASSY

$

$

Currently unavailable

30-1

Murray 331889

HOOD

$104.99

$

Usually ships in 2-12 days

0

30-2

Murray 331890

SKIRT, HOOD

$

$

Currently unavailable

30-3

Murray 331892

GRILLE

$68.99

$

Usually ships in 2-12 days

0

30-4

Murray 316043

SCREW

$0.99

$

Usually ships in 2-12 days

0

30-5

Murray 316881

SCREW

$1.49

$

Usually ships in 2-12 days

0

30-6

Murray 1501

WASHER

$1.99

$

Usually ships in 2-12 days

0

36

Murray 314967

LENS, LH

$

$

Currently unavailable

37

Murray 314968

LENS, RH

$12.99

$

Usually ships in 2-12 days

0

39

Murray 323044

PIN, CLEVIS

$

$

Not available

41

Murray 8260

PIN, HAIR

$

$

Currently unavailable

42

Murray 328042

LANYARD, HOOD

$6.99

$

Usually ships in 2-12 days

0

45

Murray 49050

SCREW

$1.99

$

Usually ships in 2-12 days

0

46

Murray 330848MA

STEERING WHEEL

$84.99

$

Usually ships in 2-12 days

0

47

Murray 301413MA

SPACER, STEER SHAFT

$3.99

$

Usually ships in 2-12 days

0

48

Murray 456378MA

PIN, SPRING

$3.99

$

In Stock, only 1 left!

0

--

Murray 340133

OP MANUAL

$

$

Currently unavailable
