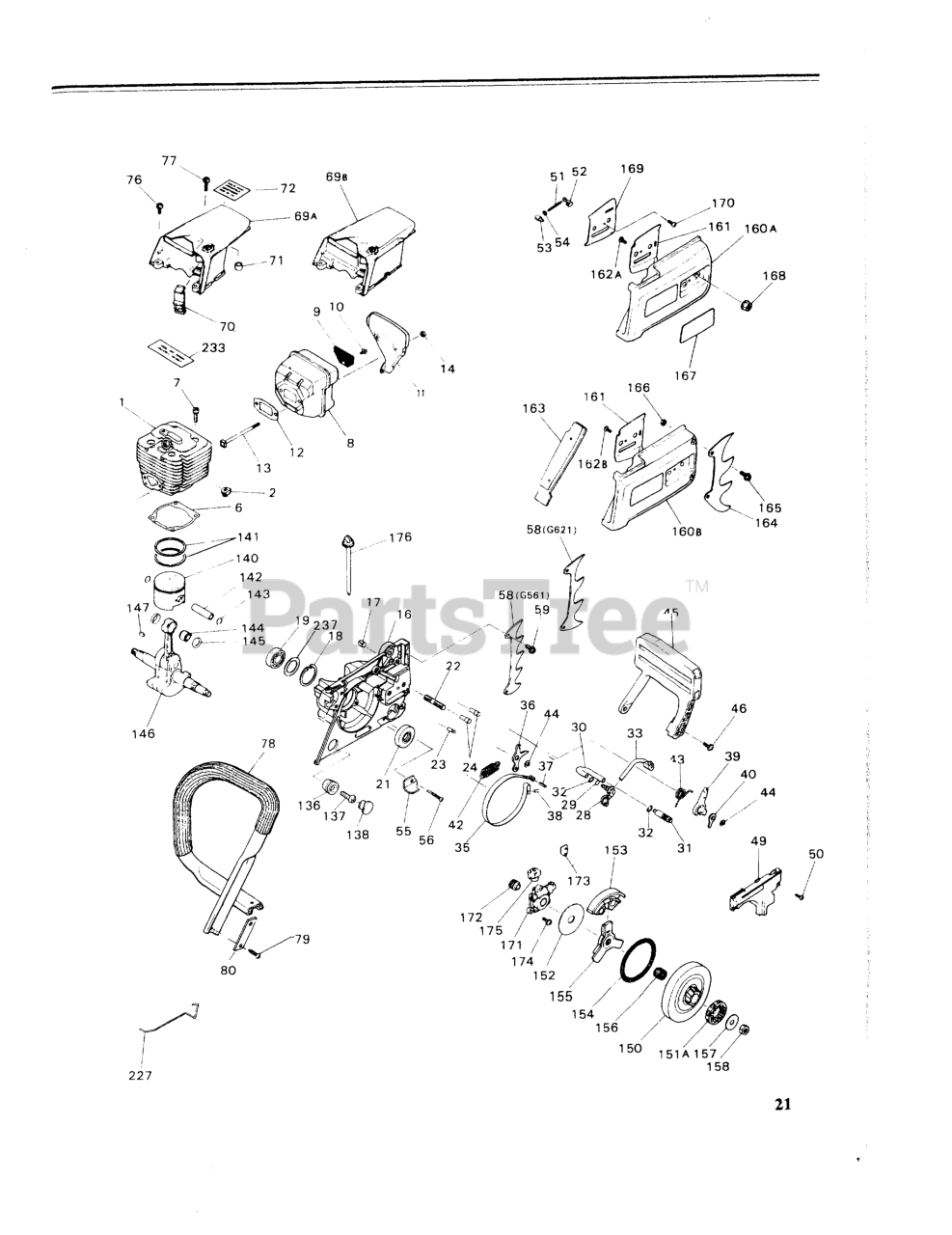

021 - POWER UNIT CONT`D Parts Diagram

  • Title

1

RedMax 261612112

CYLINDER

$152.33

$

Usually ships in 3-10 days

0

2

RedMax 335612141

GROMMET
(Superseded to 514245201)

$

$

Not available

6

RedMax 261614210

GASKET (USE -14211)
(Superseded to 513557501)

$

$

Not available

7

RedMax 331012281

BOLT M5 x 20 (RPLS -12280)
(Superseded to 520959101)

$

$

Not available

NI

RedMax 335915101

848-C91-1510
(Superseded to 848C911510)

$

$

Not available

8

RedMax 335915111

3359-15112
(Superseded to 514254201)

$

$

Not available

9

RedMax 335715120

ARRESTER, SPARK

$3.54

$

Usually ships in 3-10 days

0

10

RedMax 026320408

SCREW, M4 X 8

$0.27

$

Usually ships in 3-10 days

0

11

RedMax 335715133

848-C91-15E4

$

$

Not available

12

RedMax 335615210

GASKET
(Superseded to 514245801)

$

$

Not available

13

RedMax 335615220

BOLT
(Superseded to 514245901)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 335615230

2850-15230
(Superseded to 516960901)

$3.49

$

In Stock, only 1 left!

0

NI

RedMax 261621002

848-C90-2103

$

$

Not available

16

RedMax 261621100

CRANKCASE (USE -21101)
(Superseded to 848C902112)

$

$

Not available

17

RedMax 261621100

CRANKCASE (USE -21101)
(Superseded to 848C902112)

$

$

Not available

18

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 0603006202

T4012-21240
(Superseded to 502849101)

$17.99

$

In Stock, only 4 left!

0

21

RedMax 140021220

T1108-21220
(Superseded to 502849001)

$11.99

$

In Stock, Qty 7

0

22

RedMax 261621230

STUD (RPLS 0205-50825)
(Superseded to 516738001)

$3.49

$

Usually ships in 3-10 days

0

23

RedMax 335021250

PIN
(Superseded to 521049401)

$

$

Not available

24

RedMax 335621270

PIN
(Superseded to 521074401)

$

$

Not available

NI

RedMax 335623100

OIL PIPE COMP
(Superseded to 521074601)

$45.99

$

Usually ships in 3-10 days

0

28

RedMax 335623110

PIPE, OIL
(Superseded to 521074701)

$

$

Not available

29

RedMax 0700001008

O-RING

$0.47

$

Usually ships in 3-10 days

0

30

RedMax 331057312

PIPE

$2.06

$

Usually ships in 3-10 days

0

31

RedMax 331057412

WEIGHT
(Superseded to 520971201)

$

$

Not available

32

RedMax 331057511

CLIP

$0.26

$

Usually ships in 3-10 days

0

33

RedMax 335623211

PIPE, OIL
(Superseded to 521074901)

$

$

Not available

NI

RedMax 335624101

BAND COMP
(Superseded to 521075001)

$

$

Not available

35

RedMax 335624111

BAND
(Superseded to 521075201)

$

$

Not available

36

RedMax 335624120

ARM
(Superseded to 514247101)

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 0402500408

PIN

$0.31

$

Usually ships in 3-10 days

0

38

RedMax 335624140

PIN
(Superseded to 574013101)

$

$

Not available

39

RedMax 335624210

LEVER, BRAKE (USE 2622-24210)
(Superseded to 513571701)

$

$

Not available

40

RedMax 335624220

STOPPER (USE 2622-24500)
(Superseded to 521585101)

$

$

Not available

42

RedMax 262224600

SPRING COMP
(Superseded to 513572201)

$

$

Not available

43

RedMax 335624240

SPRING
(Superseded to 514247601)

$

$

Not available

44

RedMax 030800060

RING, SNAP, M6

$0.07

$

Usually ships in 3-10 days

0

45

RedMax 335624313

GUARD (USE 848-C90-54A4)
(Superseded to 521584001)

$

$

Not available

46

RedMax 261624320

2670-14320
(Superseded to 578468301)

$5.99

$

Usually ships in 3-10 days

0

49

RedMax 335624412

COVER, BRAKE (RPLS -24411)
(Superseded to 514247801)

$

$

Not available

50

RedMax 026360514

SCREW, M5 x 14
(Superseded to 516112001)

$3.49

$

Usually ships in 3-10 days

0

51

RedMax 335025111

ADJUST SCREW
(Superseded to 514234901)

$

$

Not available

52

RedMax 335025121

STOPPER, ADJUS
(Superseded to 514235001)

$

$

Not available

53

RedMax 332021191

NUT (A)
(Superseded to 514204801)

$

$

Not available

54

RedMax 0164120508

WASHER, M5 X .8
(Superseded to 516077501)

$3.49

$

In Stock, only 1 left!

0

55

RedMax 261625210

2616-25211
(Superseded to 516738501)

$

$

Not available

56

RedMax 261625230

SCREW

$1.31

$

Usually ships in 3-10 days

0

58

RedMax 335025310

SPIKE BUMPER

$

$

Not available

59

RedMax 261625320

SCREW
(Superseded to 513558901)

$

$

Not available

NI

RedMax 261631103

COVER COMP (RPLS -31102)
(Superseded to 521583801)

$

$

Not available

69A

RedMax 261631110

COVER

$17.06

$

Usually ships in 3-10 days

0

69B

RedMax 262631110

COVER (G621AVS)
(Superseded to 516760501)

$

$

Not available

70

RedMax 335631120

CAP
(Superseded to 514248101)

$

$

Not available

71

RedMax 335631152

GROMMET (RPLS-31151)

$1.31

$

Usually ships in 3-10 days

0

72

RedMax 335931162

LABEL

$

$

Not available

76

RedMax 026390514

SCREW,M5 X 14 (RPLS 1400-15510
(Superseded to 516113101)

$

$

Not available

77

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

78

RedMax 262032100

HANDLE L
(Superseded to 516753301)

$

$

Not available

79

RedMax 267132210

SCREW (USE 848-825-1901)
(Superseded to 521518001)

$3.49

$

Usually ships in 3-10 days

0

80

RedMax 285132180

PLATE (RPLS 2616-32180)
(Superseded to 516974701)

$

$

Not available

136

RedMax 261635141

DAMPER (RPLS 2670-35110)
(Superseded to 516740701)

$9.49

$

In Stock, Qty 10

0

137

RedMax 149032120

SCREW
(Superseded to 513294401)

$3.49

$

In Stock, only 4 left!

0

138

RedMax 261635181

CAP (RPLS -35180)

$0.89

$

Usually ships in 3-10 days

0

140

RedMax 261641112

PISTON

$

$

Not available

141

RedMax 261641210

RING
(Superseded to 516741601)

$

$

Not available

142

RedMax 336041310

PIN, PISTON

$4.18

$

Usually ships in 3-10 days

0

143

RedMax 335041320

RING, SNAP
(Superseded to 502849801)

$3.49

$

In Stock, only 2 left!

0

144

RedMax 140041410

BEARING
(Superseded to 502849901)

$13.99

$

In Stock, only 2 left!

0

145

RedMax 261641510

WASHER (RPLS 1491-41510)
(Superseded to 502850001)

$5.99

$

In Stock, only 2 left!

0

146

RedMax 261642007

CRANKSHAFT (RPLS -42003)
(Superseded to 516742501)

$

$

Not available

NI

RedMax 130042410

SHIM (REPLACES 848-870-G000)
(Superseded to 516283101)

$

$

Not available

147

RedMax 100043240

KEY
(Superseded to 506689401)

$3.49

$

Usually ships in 3-10 days

0

150

RedMax 335051110

DRUM, CLUTCH
(Superseded to 521058001)

$

$

Not available

151A

RedMax 335051121

RIM SPROCKET, .325, 7-TOOTH

$

$

Not available

NI

RedMax 261651202

CLUTCH ASSY (RPLS -51200)
(Superseded to 516742801)

$

$

Not available

152

RedMax 261651210

PLATE
(Superseded to 516742901)

$

$

Not available

153

RedMax 261651202

CLUTCH ASSY (RPLS -51200)
(Superseded to 516742801)

$

$

Not available

154

RedMax 335051231

SPRING (RPLS -51230)

$3.44

$

Usually ships in 3-10 days

0

155

RedMax 261651202

CLUTCH ASSY (RPLS -51200)
(Superseded to 516742801)

$

$

Not available

156

RedMax 332041410

BEARING
(Superseded to 521005601)

$

$

Not available

157

RedMax 335051320

WASHER
(Superseded to 521058601)

$9.49

$

Usually ships in 3-10 days

0

158

RedMax 331043220

NUT
(Superseded to 520966601)

$3.49

$

In Stock, Qty 5

0

160A

RedMax 335653003

COVER, CHAIN (RPLS. -53002)
(Superseded to 521080801)

$85.99

$

Usually ships in 3-10 days

0

160B

RedMax 261853002

CHAIN COVER
(Superseded to 516750001)

$

$

Not available

161

RedMax 335653220

PLATE (OUT)
(Superseded to 521081101)

$

$

Not available

162A

RedMax 027710410

SCREW, M4 x 10

$0.15

$

Usually ships in 3-10 days

0

162B

RedMax 026100410

SCREW, M4 x 10
(Superseded to 510471701)

$

$

Not available

163

RedMax 261653300

PROCTECTOR

$10.13

$

Usually ships in 3-10 days

0

164

RedMax 261853510

BUMPER SPIKE
(Superseded to 516750301)

$31.99

$

Usually ships in 3-10 days

0

165

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$5.99

$

Usually ships in 3-10 days

0

166

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$3.49

$

In Stock, only 3 left!

0

167

RedMax 335953120

LABEL

$5.09

$

Usually ships in 3-10 days

0

168

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

169

RedMax 335653210

PLATE (IN)
(Superseded to 514250201)

$

$

Not available

170

RedMax 026100410

SCREW, M4 x 10
(Superseded to 510471701)

$

$

Not available

NI

RedMax 335655102

848-C90-6703
(Superseded to 521584101)

$

$

Not available

171

RedMax 335655112

848-C90-6713
(Superseded to 521584201)

$60.36

$

Usually ships in 3-10 days

0

172

RedMax 335655120

GEAR, WORM
(Superseded to 521081501)

$

$

Not available

173

RedMax 335655310

GASKET, PUMP
(Superseded to 514250701)

$3.49

$

In Stock, only 1 left!

0

174

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

175

RedMax 335655450

GROMMET (RPLS -55451)
(Superseded to 521081701)

$

$

Not available

176

RedMax 335655511

SHAFT
(Superseded to 521081901)

$

$

Not available

227

RedMax 261682410

ROD (RPLS 3356-82411)
(Superseded to 513566301)

$

$

Not available

233

RedMax 335983340

LABEL

$5.14

$

Usually ships in 3-10 days

0

237

RedMax 261621250

RING
(Superseded to 516738201)

$

$
