G 62000 (85907) - Snapper 6,200 Watt Portable Generator, 11hp GENERATOR MAIN UNIT Parts Diagram

6,200 Watt Portable Generator, 11hp

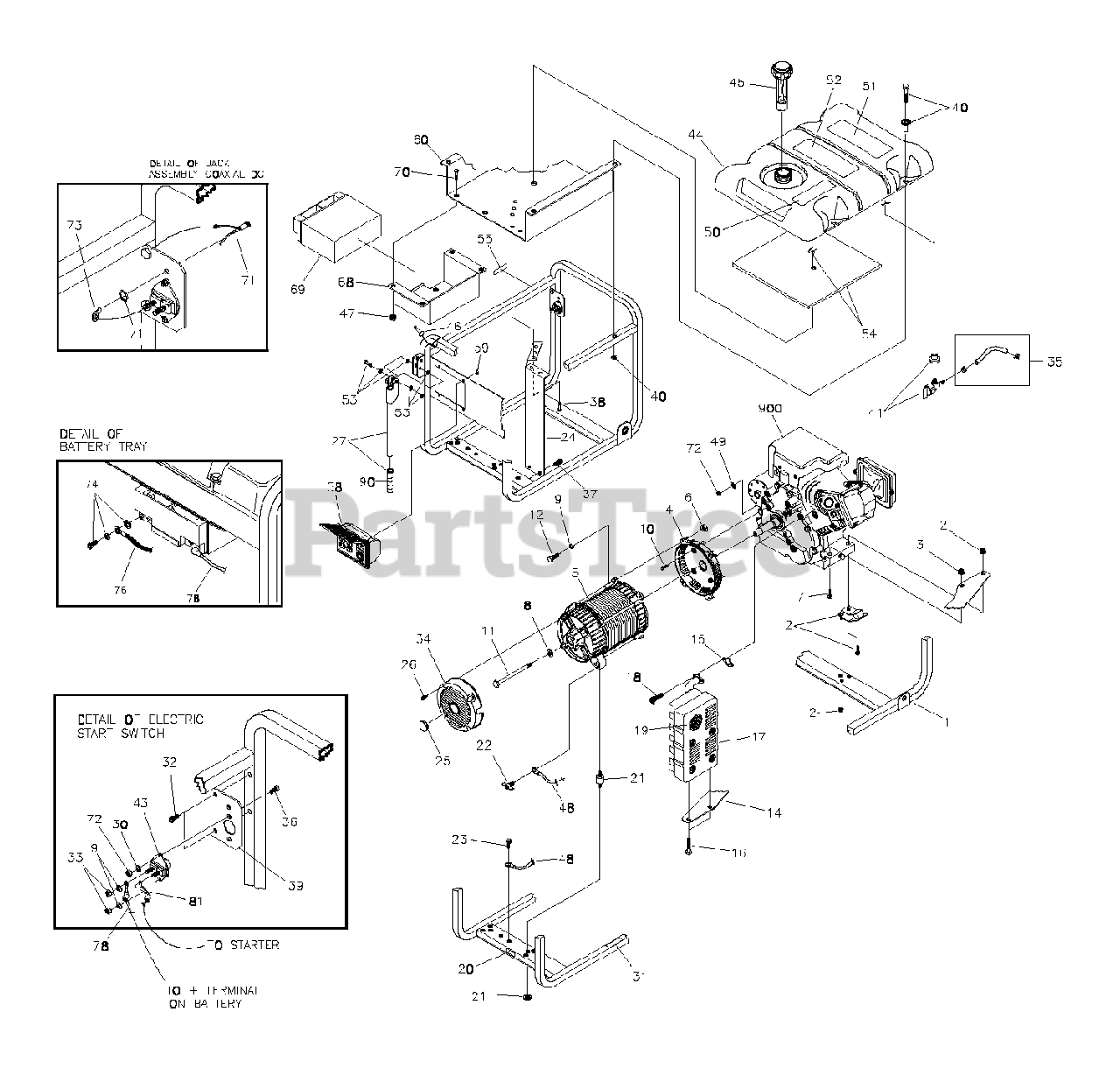

GENERATOR MAIN UNIT Parts Diagram

  • Title

1

Snapper M197464GS

CRADLE
(Superseded to 197464BNGS)

$533.99

$

Usually ships in 2-12 days

0

2

Snapper 194150GS

KIT, Vibration Mount, 45°

$13.99

$

In Stock, Qty 7

0

3

Snapper 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Snapper 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

6

* NUT, Hex M8 - 1.25

$

$

Not available

5

ALTERNATOR ASSEMBLY

Note: (Refer to Alternator Group)

$

$

Not available

7

Snapper 15398GS

TPHMS, M8 - 1.25 x 35

$

$

Currently unavailable

8

Snapper 96796GS

WASHER, Flat M8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

* WASHER, Lock 5/16 - M8

$

$

Not available

10

Snapper 190274DGS

SBHCS, 3/8-16 x 7/8 Lg.

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 187365FGS

HHCS,5/16-24 x 7-7/16

$17.99

$

Usually ships in 2-12 days

0

12

* HHCS, M8 - 1.25 x 25

$

$

Not available

14

Snapper 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Snapper 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 5

0

16

* HHCS, M6 - 1.0 x 12

$

$

Not available

17

Snapper 189008GS

MUFFLER

$

$

Not available

18

* SCREW, 5/16 - 18 x 3/4"

$

$

Not available

19

Snapper 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Snapper B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Snapper 194153GS

KIT, Vibration, Mount

$11.99

$

In Stock, Qty 12

0

22

Snapper 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 86292GS

SCREW, 10-16 x 3/4 Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Snapper 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Snapper 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Snapper 74908GS

SCREW, M5-0.8 x 10,Taptite

$2.99

$

Usually ships in 2-12 days

0

27

Snapper B193200GS

ASSY, Handle (Includes Item 79)

$39.99

$

In Stock, Qty 6

0

30

* WASHER, Lock 1/4

$

$

Not available

31

Snapper 196830GS

DECAL, Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

Snapper 195094GS

SCREW, 10 - 16 x .68 Self-Drill

$2.99

$

Usually ships in 2-12 days

0

33

NUT, 5/16 - 24

$

$

Not available

34

Snapper 195422GS

COVER, Bearing Carrier with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Snapper 791745

KIT-FUEL, Hose (Cut To Fit)

$10.99

$

In Stock, Qty 6

0

36

* HHCS, 1/4 - 20 x 3/4

$

$

Not available

37

Snapper B2153GS

HHCS, 12 - 14 x 7/8" Self Driller

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 56893GS

SCREW, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

39

Snapper 188987GS

BRACKET, Switch

$10.99

$

Usually ships in 2-12 days

0

40

Snapper 195477GS

KIT, Hardware Tank Fuel (Includes Qty. of 4)

$9.99

$

Usually ships in 2-12 days

0

41

Snapper 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

43

Snapper 77282GS

SWITCH, Starter

$76.99

$

In Stock, only 1 left!

0

44

Snapper 194217GS

ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Snapper B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Snapper B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

47

Snapper 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

* WASHER, M6 Shakeproof

$

$

Not available

50

Snapper 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Snapper 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Snapper 189235GS

DECAL, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Snapper 194034GS

KIT, Fold Down Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Snapper 194448GS

KIT, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

55

Snapper 197798GS

DECAL, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

58

Snapper 191757GS

ASSY, Control Panel (see Control Panel page)

$

$

Not available

59

* NUT, Palnut, 3/16"

$

$

Not available

60

Snapper 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

68

Snapper 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Snapper 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

* HHCS, M6 - 1.0 x 12

$

$

Not available

71

Snapper 192531GS

ASSY, Jack, DC

$10.99

$

Usually ships in 2-12 days

0

72

IF REPLACING ORDER 5410501AYP & 5410723AYP

$

$

Not available

73

Snapper 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

74

Snapper 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

76

Snapper 185939KGS

ASSY, Wire, #55

$

$

Not available

78

Snapper 189302CGS

ASSY, Wire, #13

$

$

Not available

81

Snapper 189302GGS

ASSY, Wire, #16

$18.99

$

Usually ships in 2-12 days

0

90

Snapper 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

900

Snapper 210415-0137-E1

ENGINE, Briggs & Stratton

Note: (Refer to Note:**)

$

$

Currently unavailable

Snapper MS3430

MANUAL, OPERATOR'S 3-LANGUAGE

$

$

Not available

Snapper 195618GS

MANUAL-OPERATOR

$14.99

$

Usually ships in 2-12 days

0

Snapper 193384GS

DECAL, Family, CA EVP

$

$

Currently unavailable

Snapper 194274GS

HARNESS, Wire, Power

$86.99

$

Usually ships in 2-12 days

0

Snapper BB3061GS

BOTTLE, Oil (Not Shown)

$13.99

$

In Stock, only 1 left!

0

Snapper B4177GS

CHARGER, Battery, Round Connector, 120 VAC,
(Superseded to 705927)

$38.99

$

Usually ships in 2-12 days

0

Snapper 195843GS

KIT, Decals Service (Not Shown)

$18.99

$

Usually ships in 2-12 days

0

Snapper 100031

GAS ADDITIVE 1 OZ
(Superseded to 100126)

$3.49

$

In Stock, Qty 20+

0
