G 621 AVS (KZA 1003) - RedMax Chainsaw (SN: 200101 - 330137) (2003-01) 026 - POWER UNIT 2 Parts Diagram

Chainsaw

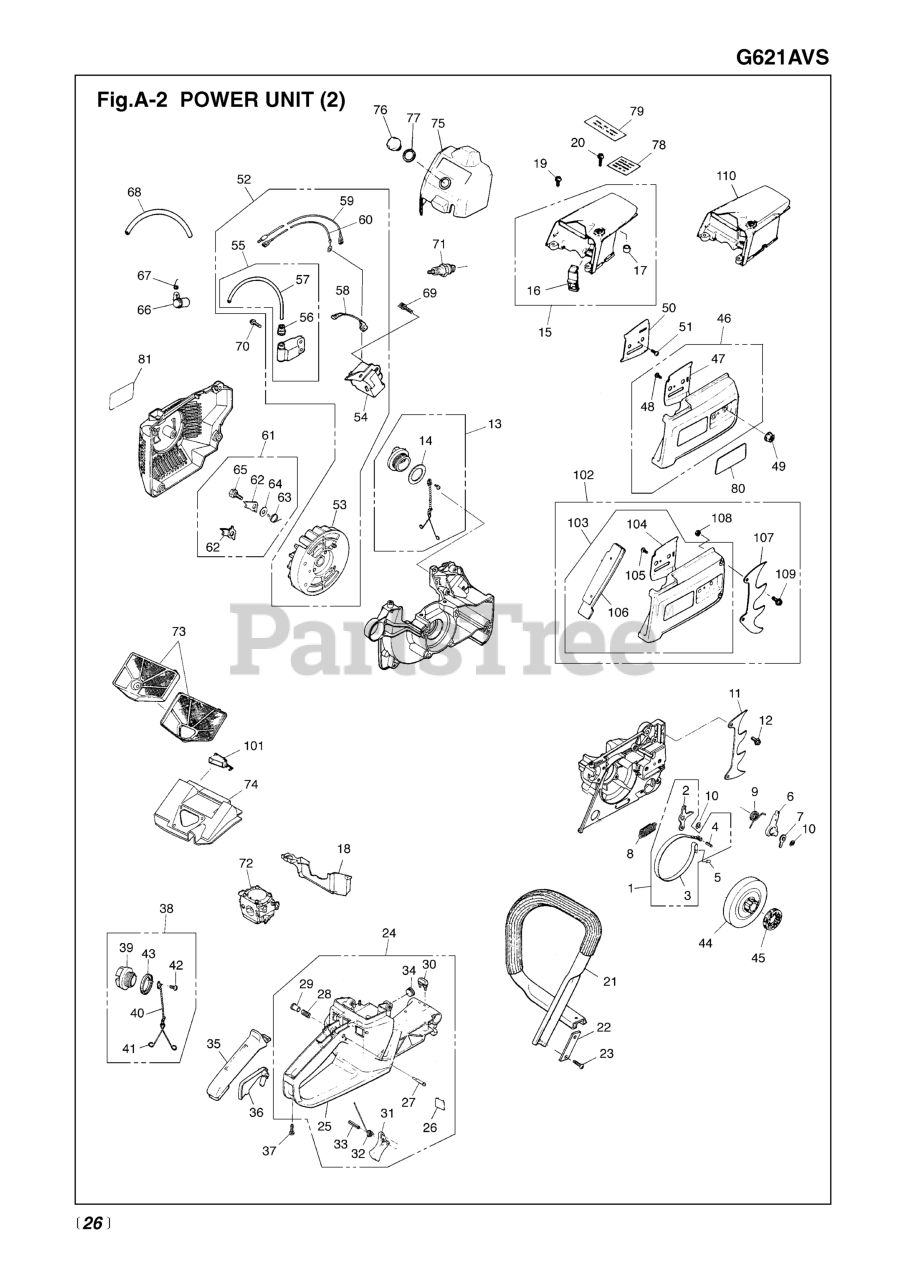

026 - POWER UNIT 2 Parts Diagram

  • Title

1

RedMax 335624101

BAND COMP
(Superseded to 521075001)

$

$

Not available

2

RedMax 335624111

BAND
(Superseded to 521075201)

$

$

Not available

3

RedMax 335624120

ARM
(Superseded to 514247101)

$10.99

$

Usually ships in 3-10 days

0

4

RedMax 0402500408

PIN

$0.31

$

Usually ships in 3-10 days

0

5

RedMax 335624140

PIN
(Superseded to 574013101)

$

$

Not available

6

RedMax 262224210

LEVER, BRAKE (RPLS.3356-24210)
(Superseded to 513571701)

$

$

Not available

7

RedMax 262224500

848-C92-5431
(Superseded to 521585101)

$

$

Not available

8

RedMax 262224600

SPRING COMP
(Superseded to 513572201)

$

$

Not available

9

RedMax 335624240

SPRING
(Superseded to 514247601)

$

$

Not available

10

RedMax 030800060

RING, SNAP, M6

$0.07

$

Usually ships in 3-10 days

0

11

RedMax 262325310

BUMPER SPIKE
(Superseded to 516759101)

$

$

Not available

12

RedMax 261625320

SCREW
(Superseded to 513558901)

$

$

Not available

13

RedMax 335626100

CAP ASSEMBLY
(Superseded to 514247901)

$

$

Not available

14

RedMax 331757220

GASKET
(Superseded to 520993301)

$

$

Not available

15

RedMax 261631103

COVER COMP (RPLS -31102)
(Superseded to 521583801)

$

$

Not available

16

RedMax 335631120

CAP
(Superseded to 514248101)

$

$

Not available

17

RedMax 335631152

GROMMET (RPLS-31151)

$1.31

$

Usually ships in 3-10 days

0

18

RedMax 335631212

SEAL, CYLINDER

$6.19

$

Usually ships in 3-10 days

0

19

RedMax 026390514

SCREW,M5 X 14 (RPLS 1400-15510
(Superseded to 516113101)

$

$

Not available

20

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

21

RedMax 262032100

HANDLE L
(Superseded to 516753301)

$

$

Not available

22

RedMax 285132180

PLATE (RPLS 2616-32180)
(Superseded to 516974701)

$

$

Not available

23

RedMax 267132210

SCREW (USE 848-825-1901)
(Superseded to 521518001)

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 262233005

R HANDLE ASSY (RPLS -33002)
(Superseded to 516756901)

$

$

Not available

25

RedMax 262233105

HANDLE (RPLS -33104)
(Superseded to 516757401)

$

$

Not available

26

RedMax 335033220

PLATE

$1.31

$

Usually ships in 3-10 days

0

27

RedMax 333033250

STOPPER
(Superseded to 514212901)

$

$

Not available

28

RedMax 331033262

50030077
(Superseded to 510815301)

$

$

Not available

29

RedMax 331033271

KNOB
(Superseded to 514178701)

$

$

Not available

30

RedMax 281033280

DAMPER (REPLACES 3356-33281)
(Superseded to 513700301)

$

$

Not available

31

RedMax 335633312

LEVER (RPLS 3356-33311)

$3.09

$

Usually ships in 3-10 days

0

32

RedMax 335633321

SPRING
(Superseded to 510815401)

$

$

Not available

33

RedMax 0402500524

50030081
(Superseded to 510815501)

$

$

Not available

34

RedMax 261633412

DAMPER (RPLS -33411)

$0.97

$

Usually ships in 3-10 days

0

35

RedMax 335634111

GRIP COVER

$14.06

$

Usually ships in 3-10 days

0

36

RedMax 335633352

848-C30-33E3
(Superseded to 521556501)

$

$

Not available

37

RedMax 335632210

SCREW
(Superseded to 521078101)

$

$

Not available

38

RedMax 335034400

TANK CAP ASSY
(Superseded to 514237001)

$

$

Not available

39

RedMax 335026110

CAP-TANK

$

$

Not available

40

RedMax 331757230

CHAIN

$2.71

$

Usually ships in 3-10 days

0

41

RedMax 331757240

3317-57242

$

$

Not available

42

RedMax 027710410

SCREW, M4 x 10

$0.15

$

Usually ships in 3-10 days

0

43

RedMax 335034450

GASKET
(Superseded to 521055701)

$6.99

$

Usually ships in 3-10 days

0

44

RedMax 335051110

DRUM, CLUTCH
(Superseded to 521058001)

$

$

Not available

45

RedMax 336051120

SPROCKET RIM, 3/8, 7-TOOTH

$

$

Not available

46

RedMax 335653003

COVER, CHAIN (RPLS. -53002)
(Superseded to 521080801)

$89.99

$

Usually ships in 3-10 days

0

47

RedMax 335653220

PLATE (OUT)
(Superseded to 521081101)

$

$

Not available

48

RedMax 027710410

SCREW, M4 x 10

$0.15

$

Usually ships in 3-10 days

0

49

RedMax 335053410

NUT
(Superseded to 575960801)

$3.99

$

Usually ships in 3-10 days

0

50

RedMax 335653210

PLATE (IN)
(Superseded to 514250201)

$

$

Not available

51

RedMax 026100410

SCREW, M4 x 10
(Superseded to 510471701)

$

$

Not available

52

RedMax 261671002

NLA

Note: Context Note: @ÿ

$

$

Not available

53

RedMax 261671112

ROTOR (RPLS -71110)
(Superseded to 516743601)

$

$

Not available

54

RedMax 261671210

848-C90-71B1
(Superseded to 521584301)

$119.99

$

Usually ships in 3-10 days

0

55

RedMax 261671301

COIL, IGNITION
(Superseded to 513563801)

$

$

Not available

56

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

57

RedMax 261671331

CORD

$9.24

$

Usually ships in 3-10 days

0

58

RedMax 261671410

CORD
(Superseded to 513564101)

$

$

Not available

59

RedMax 261671420

CORD
(Superseded to 513564201)

$

$

Not available

60

RedMax 261671430

CORD

$

$

Not available

61

RedMax 261871102

ROTOR COMP.
(Superseded to 516750601)

$

$

Not available

62

RedMax 336671120

RATCHET
(Superseded to 521098901)

$

$

Not available

63

RedMax 335071131

SPRING (REPLACES -71130)
(Superseded to 521061101)

$3.49

$

Usually ships in 3-10 days

0

64

RedMax 338871150

WASHER

$0.76

$

Usually ships in 3-10 days

0

65

RedMax 331071142

BOLT
(Superseded to 520972201)

$

$

Not available

66

RedMax 285072110

CAP, PLUG

$5.31

$

Usually ships in 3-10 days

0

67

RedMax 140072121

SPRING PLUG (RPLS 3310-71320)
(Superseded to 544260401)

$2.49

$

Usually ships in 3-10 days

0

68

RedMax 285071320

TUBE

$1.19

$

Usually ships in 3-10 days

0

69

RedMax 335015250

BOLT
(Superseded to 514234401)

$

$

Not available

70

RedMax 026330416

SCREW (REPLACES -30414)

$0.17

$

Usually ships in 3-10 days

0

71

RedMax 335673110

3699-90032-10
(Superseded to 521230201)

$

$

Not available

72

RedMax 336981000

CARBURETOR (HDA-212-1)

$

$

Not available

73

RedMax 335698200

848-C91-8311
(Superseded to 521585001)

$

$

Not available

74

RedMax 336983200

SILENCER

$18.68

$

Usually ships in 3-10 days

0

75

RedMax 262283302

COVER (RPLS -83300)
(Superseded to 516758101)

$39.99

$

Usually ships in 3-10 days

0

76

RedMax 335683322

2841-83320
(Superseded to 513737301)

$14.99

$

Usually ships in 3-10 days

0

77

RedMax 338883340

GASKET, KNOB
(Superseded to 514281501)

$

$

Not available

78

RedMax 336931163

LABEL

$1.42

$

Usually ships in 3-10 days

0

79

RedMax 336931170

LABEL

$

$

Not available

80

RedMax 335953121

LABEL

$1.73

$

Usually ships in 3-10 days

0

81

RedMax 336975131

LABEL

$1.21

$

Usually ships in 3-10 days

0

101

RedMax 261083220

CAP, SILENCER
(Superseded to 516734001)

$

$

Not available

102

RedMax 262306012

DOUBLE SPIKE KIT
(Superseded to 516758601)

$

$

Not available

103

RedMax 261853002

CHAIN COVER
(Superseded to 516750001)

$

$

Not available

104

RedMax 335653220

PLATE (OUT)
(Superseded to 521081101)

$

$

Not available

105

RedMax 026100410

SCREW, M4 x 10
(Superseded to 510471701)

$

$

Not available

106

RedMax 261653300

PROCTECTOR

$10.13

$

Usually ships in 3-10 days

0

107

RedMax 261853510

BUMPER SPIKE
(Superseded to 516750301)

$33.99

$

Usually ships in 3-10 days

0

108

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$3.49

$

In Stock, Qty 20+

0

109

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$5.99

$

Usually ships in 3-10 days

0

110

RedMax 262631110

COVER (G621AVS)
(Superseded to 516760501)

$

$

Not available
