G 621 AVS - RedMax Chainsaw (SN: 642078 & Above) HANDLE CONTROLS Parts Diagram

Chainsaw

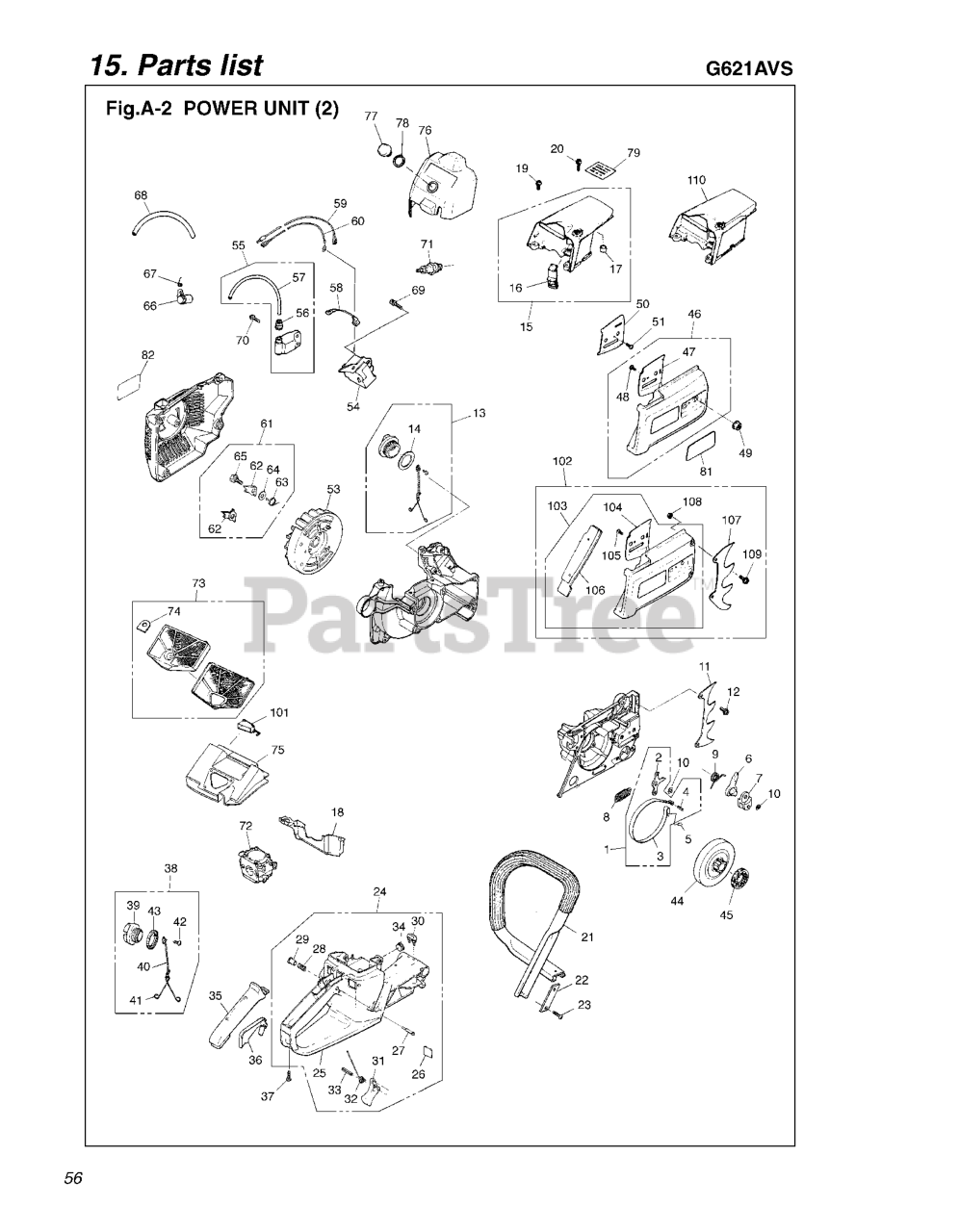

HANDLE CONTROLS Parts Diagram

  • Title

1

RedMax 521075001

BAND COMP

$24.99

$

Usually ships in 3-10 days

0

2

RedMax 514247001

BAND.BRAKE

$14.99

$

Usually ships in 3-10 days

0

3

RedMax 514247101

ARM.BRAKE

$10.99

$

Usually ships in 3-10 days

0

4

RedMax 516123101

PIN

$1.49

$

Usually ships in 3-10 days

0

5

RedMax 521075401

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 516756001

LEVER, BRAKE (RPLS 335624210)
(Superseded to 513571701)

$

$

Not available

7

RedMax 521585101

STOPPER (RPLS 262224500)

$22.99

$

Usually ships in 3-10 days

0

8

RedMax 513572201

SPRING

$21.99

$

Usually ships in 3-10 days

0

9

RedMax 514247601

SPRING

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 510490201

RING

$3.49

$

In Stock, only 1 left!

0

11

RedMax 513574501

$

$

Not available

12

RedMax 513558901

SCREW

$

$

Not available

13

RedMax 514247901

CAP

$

$

Not available

14

RedMax 514198601

GASKET

$

$

Not available

15

RedMax 521583801

COVER COMP (RPLS 261631103)

$27.99

$

Usually ships in 3-10 days

0

16

RedMax 514248101

CAP

$2.49

$

Usually ships in 3-10 days

0

17

RedMax 514248201

GROMMET

$

$

Not available

18

RedMax 514248401

SEAL

$8.99

$

Usually ships in 3-10 days

0

19

RedMax 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

20

RedMax 510482301

SCREW

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 513571301

HANDLE

$

$

Not available

22

RedMax 513797101

PLATE

$2.49

$

Usually ships in 3-10 days

0

23

RedMax 521518001

SCREW (RPLS 267132210)

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 516756901

R HANDLE ASSY(RPL-33002,33000)

$

$

Not available

25

RedMax 516757401

HANDLE (RPLS -33104,-33102)

$

$

Not available

26

RedMax 514235901

PLATE

$2.49

$

Usually ships in 3-10 days

0

27

RedMax 514212901

STOPPER

$

$

Not available

28

RedMax 514178601

$

$

Not available

29

RedMax 514178701

KNOB

$

$

Not available

30

RedMax 513700301

DAMPER

$

$

Not available

31

RedMax 521549901

LEVER (RPLS 335633312)

$5.99

$

Usually ships in 3-10 days

0

32

RedMax 505048001

SPRING

$4.99

$

In Stock, Qty 7

0

33

RedMax 505048101

SPRING PIN

$3.49

$

Usually ships in 3-10 days

0

34

RedMax 513559701

DAMPER(B)

$

$

Not available

35

RedMax 514249101

COVER

$

$

Not available

36

RedMax 521556501

ARM (RPLS 335633350-335633352)

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 514248501

$

$

Not available

38

RedMax 514237001

CAP

$10.99

$

Usually ships in 3-10 days

0

39

RedMax 514235201

$

$

Not available

40

RedMax 514198701

OBSOLETE - CHAIN

$

$

Not available

41

RedMax 514198801

$

$

Not available

42

RedMax 510484601

OBSOLETE - SCREW

$

$

Not available

43

RedMax 514237101

GASKET

$6.99

$

Usually ships in 3-10 days

0

44

RedMax 514239301

DRUM

$

$

Not available

45

RedMax 514256101

OBSOLETE - RIM

$

$

Not available

46

RedMax 521080801

COVER, CHAIN (RPLS 3356-53002)

$85.99

$

Usually ships in 3-10 days

0

47

RedMax 514250301

PLATE

$

$

Not available

48

RedMax 510484601

OBSOLETE - SCREW

$

$

Not available

49

RedMax 575960801

NUT FLANGE

$3.49

$

Usually ships in 3-10 days

0

50

RedMax 514250201

PLATE

$

$

Not available

51

RedMax 510471701

SCREW, M4 X 10

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 516743601

ROTOR (RPLS 261671110)

$83.99

$

Usually ships in 3-10 days

0

54

RedMax 521584301

RESOURCE COIL(RPLS 261671210)

$113.99

$

Usually ships in 3-10 days

0

55

RedMax 513563801

COIL IG

$

$

Not available

56

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

57

RedMax 513564001

CORD

$14.99

$

Usually ships in 3-10 days

0

58

RedMax 513564101

CORD

$

$

Not available

59

RedMax 513564201

CORD

$

$

Not available

60

RedMax 513564301

OBSOLETE - CORD

$

$

Not available

61

RedMax 516750601

OBSOLETE - ROTOR COMP. (RPLS 261871100)

$

$

Not available

62

RedMax 514257601

$

$

Not available

63

RedMax 514240901

SPRING

$3.49

$

Usually ships in 3-10 days

0

64

RedMax 514280801

WASHER

$1.49

$

Usually ships in 3-10 days

0

65

RedMax 514186101

BOLT

$3.99

$

Usually ships in 3-10 days

0

66

RedMax 513765601

CAP

$

$

Not available

67

RedMax 513243301

SPRING PLUG

$4.99

$

Usually ships in 3-10 days

0

68

RedMax 513764701

TUBE

$3.99

$

In Stock, only 1 left!

0

69

RedMax 514234401

BOLT

$

$

Not available

70

RedMax 516064301

SCREW

$

$

Not available

71

RedMax 521228901

$

$

Not available

72

RedMax 514258501

$

$

Not available

73

RedMax 521585001

CLEANER, AIR (RPLS 335698200)

$72.99

$

Usually ships in 3-10 days

0

74

RedMax 521584601

PLATE

$

$

Not available

75

RedMax 514258801

SILENCER

$

$

Not available

76

RedMax 516758101

COVER (RPLS -83301,-83300)

$37.99

$

Usually ships in 3-10 days

0

77

RedMax 514252901

KNOB Z335683322

$

$

Not available

78

RedMax 514281501

GASKET

$

$

Not available

79

RedMax 514258201

LABEL.WARNING

$2.49

$

Usually ships in 3-10 days

0

80

RedMax 511179501

$

$

Not available

81

RedMax 514254901

$

$

Not available

82

RedMax 514258301

$

$

Not available

101

RedMax 513555001

$

$

Not available

102

RedMax 516758601

DOUBLE SPIKE KIT

$

$

Not available

103

RedMax 516750001

CHAIN COVER

$42.99

$

Usually ships in 3-10 days

0

104

RedMax 514250301

PLATE

$

$

Not available

105

RedMax 510471701

SCREW, M4 X 10

$3.99

$

Usually ships in 3-10 days

0

106

RedMax 513563401

OBSOLETE - PROTECTOR

$

$

Not available

107

RedMax 513569401

$

$

Not available

108

RedMax 514183901

NUT

$4.99

$

In Stock, Qty 20+

0

109

RedMax 513615701

RP_SCREW
(Superseded to 578468301)

$5.99

$

Usually ships in 3-10 days

0

110

RedMax 513576201

COVER

$46.99

$

Usually ships in 3-10 days

0
