G1 - Husqvarna Automower Robotic Lawn Mower (1998-2003) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

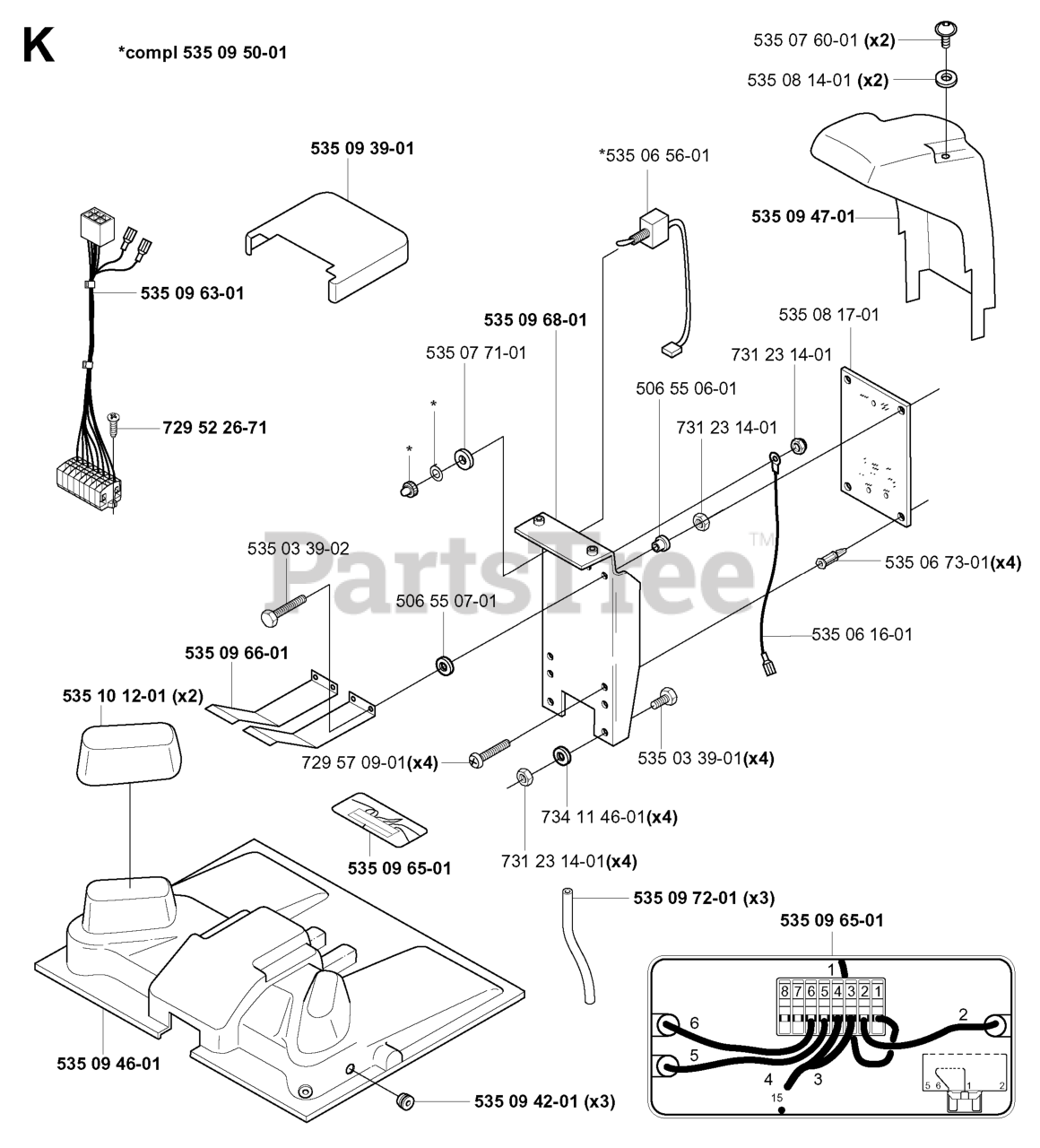

CHARGING STATION Parts Diagram

  • Title

506 55 07-01

Husqvarna 506550701

SPACER

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

535 09 42-01

Husqvarna 535094201

RIVET

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

535 08 14-01

Husqvarna 535081401

WASHER INSULATOR

$

$

Not available

535 07 71-01

Husqvarna 535077101

SPACER SWITCH

$

$

Not available

535 07 60-01

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, only 3 left!

0

535 10 12-01

Husqvarna 535101201

BRACKET
(Superseded to 535101501)

$

$

Not available

535 06 16-01

Husqvarna 535061601

WIRE CHARGE STATION

$

$

Not available

535 06 73-01

Husqvarna 535067301

STANDOFFS CONTROL CARD

$

$

Not available

506 55 06-01

Husqvarna 506550601

SPACER

$5.99

$

In Stock, only 1 left!

0

535 03 39-02

Husqvarna 535033902

SCREW LEAF

$

$

Not available

535 09 46-01

Husqvarna 535094601

COVER

$

$

Not available

535 09 65-01

Husqvarna 535096501

DECAL

$

$

Not available

535 08 17-01

Husqvarna 535081701

CONTROL BOARD, CHARGE STATION
(Superseded to 535103601)

$

$

Not available

729 52 26-71

Husqvarna 729522671

SCREW

$

$

Not available

535 09 68-01

Husqvarna 535096801

BRACKET

$

$

Not available

535 09 63-01

Husqvarna 535096301

CABLE ASSY

$

$

Not available

729 57 09-01

Husqvarna 729570901

Screw

$

$

Not available

535 09 66-01

Husqvarna 535096601

PLATE

$

$

Not available

535 09 39-01

Husqvarna 535093901

COVER

$

$

Not available

535 09 50-01

Husqvarna 535095001

SW COVER

$

$

Not available

535 09 47-01

Husqvarna 535094701

COVER

$

$

Not available

535 06 56-01

Husqvarna 535065601

SWITCH

$

$

Not available

535 03 39-01

Husqvarna 535033901

SCREW

$

$

Not available

535 09 72-01

Husqvarna 535097201

TUBE

$

$

Not available
