G100 K2 QA (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-3331243) CARBURETOR (5) Parts Diagram

Engine, Made in Japan

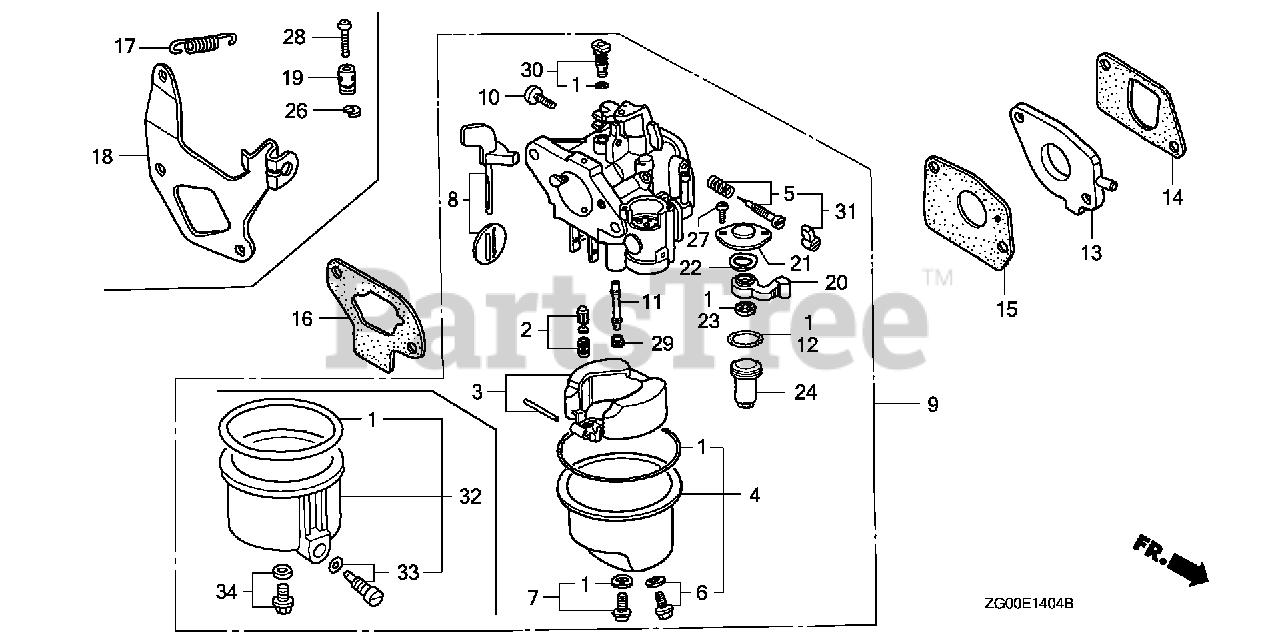

CARBURETOR (5) Parts Diagram

  • Title

1

Honda 16010-ZG0-812

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

$23.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$33.99

$

In Stock, Qty 7

0

3

Honda 16013-ZG0-811

FLOAT SET
(Superseded to 16013-ZDJ-801)

$6.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT (CARBURETOR NO.)

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (CARBURETOR NO.)

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

$12.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET (CARBURETOR NO.)
(Superseded to 16028-ZW6-611)

$16.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZG0-W00

CHOKE SET

$

$

Not available

9

Honda 16100-ZG0-W32

CARBURETOR ASSY. (BF11C C)

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 2 left!

0

11

Honda 16166-ZG0-W20

NOZZLE, MAIN

$

$

Not available

12

Honda 16173-ZG0-811

O-RING

$

$

Not available

13

Honda 16211-ZG0-020

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$13.99

$

In Stock, only 2 left!

0

14

Honda 16212-ZG0-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 7

0

15

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

16

Honda 16269-ZG0-800

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 10

0

20

Honda 16953-ZG0-812

SEE PART DETAILS - PRI; LEVER, VALVE (CARBURETOR NO.)

Note: Use up to Engine SN BF11C B.

$14.99

$

In Stock, only 1 left!

0

20

Honda 16953-ZG0-812

SEE PART DETAILS - PRI; LEVER, VALVE (CARBURETOR NO.)

Note: Use from Engine SN BF11C C.

$14.99

$

In Stock, only 1 left!

0

21

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use up to Engine SN BF11C B.

$4.99

$

In Stock, only 2 left!

0

22

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$4.99

$

In Stock, Qty 10

0

23

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

$4.99

$

In Stock, only 3 left!

0

24

Honda 16967-ZG0-811

CUP, FUEL STRAINER

$

$

Not available

27

Honda 93500-03006-0G

SCREW, PAN (3X6)

Note: Use up to Engine SN BF11C B.

$0.99

$

In Stock, only 3 left!

0

27

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BF11C C.

$1.49

$

In Stock, only 4 left!

0

29

Honda 99101-187-0580

JET, MAIN (#58)

$12.99

$

Usually ships in 3-6 days

0

29

Honda 99101-187-0520

SEE PART DETAILS - SUP; JET, MAIN (#52)

$

$

Not available

29

Honda 99101-187-0550

SEE PART DETAILS - SUP; JET, MAIN (#55)
(Superseded to 99101-ZG0-0550)

$12.99

$

In Stock, only 3 left!

0

30

Honda 99204-ZE2-0380

JET SET, PILOT (#38) (CARBURETOR NO.)

Note: Use from Engine SN BF11C B.

$26.99

$

Usually ships in 3-6 days

0

30

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (CARBURETOR NO.)

Note: Use up to Engine SN BF11C A.

$26.99

$

In Stock, only 2 left!

0
