G100 K2 QA (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-3331243) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

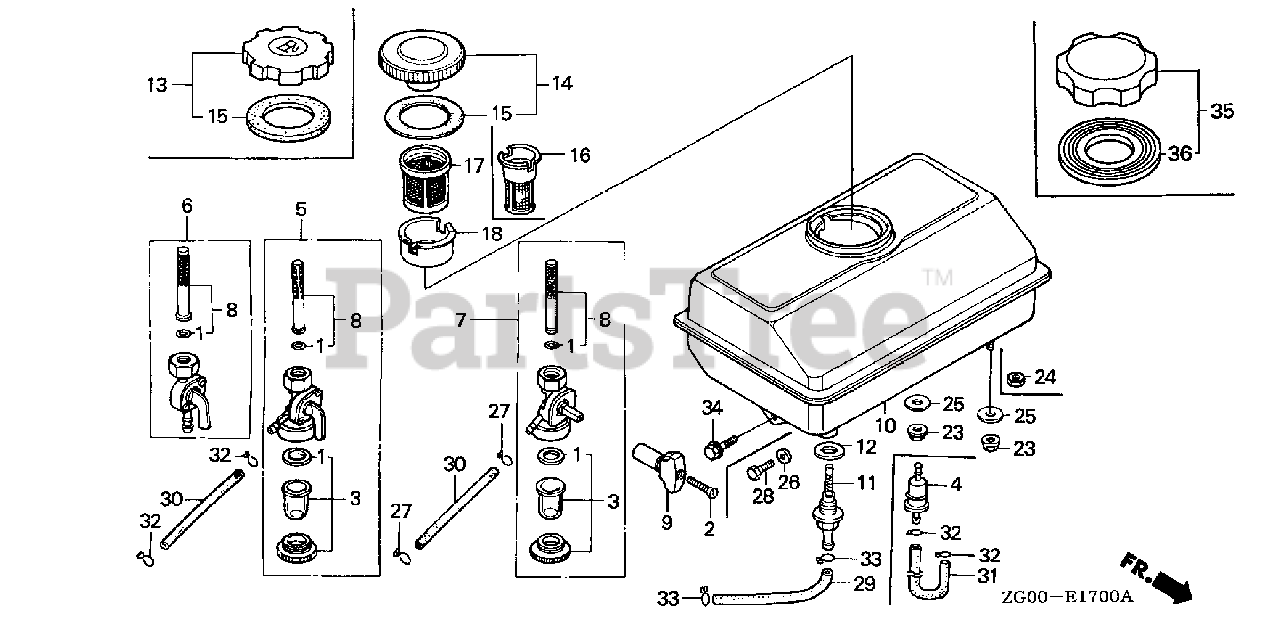

FUEL TANK (1) Parts Diagram

  • Title

10

Honda 17510-ZG0-W00ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Not available

11

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$9.99

$

In Stock, Qty 17

0

12

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$4.49

$

In Stock, Qty 20+

0

13

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3015990 to 3204737.

$

$

Not available

13

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3204738.

$

$

Not available

14

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Engine SN 3015989.

$23.99

$

Usually ships in 3-6 days

0

14

Honda 17620-ZE2-W00

SEE PART DETAILS - SUP; CAP, FUEL FILLER

Note: Use up to Engine SN 3015989.

$

$

Not available

15

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use from Engine SN 3015990.

$

$

Not available

15

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3015989.

$

$

Not available

15

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-ZE1-000)

Note: Use from Engine SN 3015990.

$4.49

$

In Stock, only 2 left!

0

16

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

In Stock, only 2 left!

0

23

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

29

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X55)

$60.99

$

In Stock, only 4 left!

0

33

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

34

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 20+

0
