G100 QAH (G100) - Honda Engine, Made in Japan (SN: G100-1000001 - G100-1490769) CONTROL (1) Parts Diagram

Engine, Made in Japan

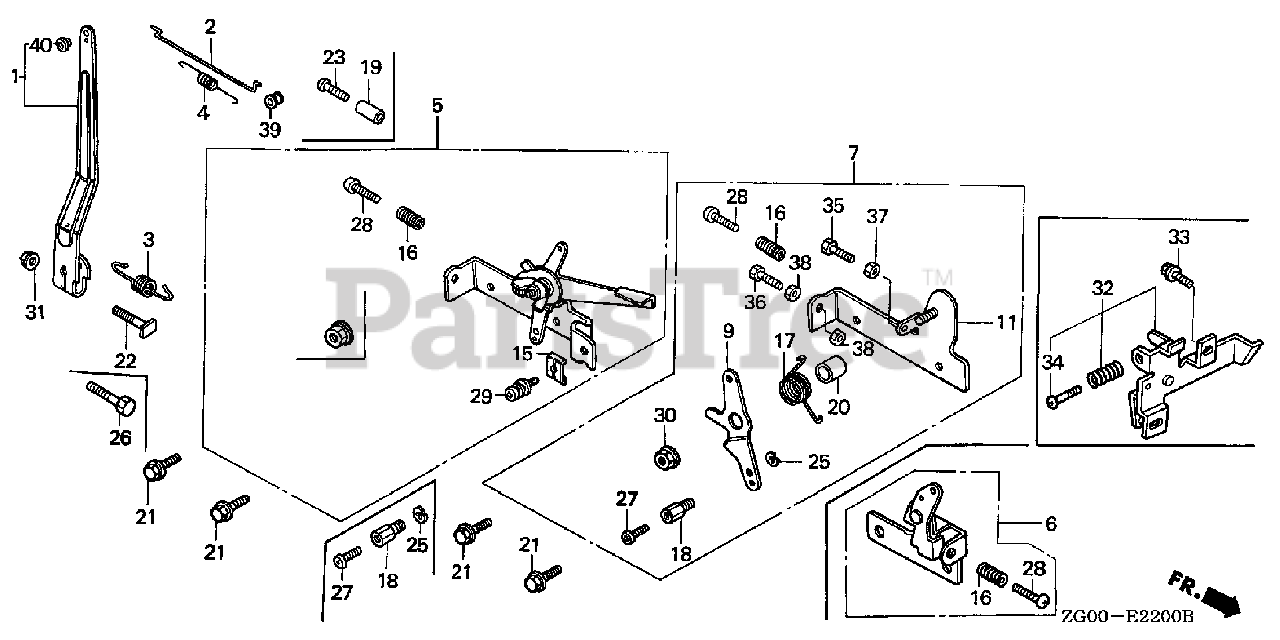

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-896-000

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16555-896-000

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16561-896-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Not available

4

Honda 16562-896-000

SPRING, THROTTLE RETURN

$5.49

$

In Stock, only 1 left!

0

5

Honda 16570-ZG0-000

CONTROL ASSY. Use from Engine SN 1443596.

$

$

Not available

5

Honda 16570-896-010

CONTROL ASSY. Use up to Engine SN 1023549.

$

$

Not available

5

Honda 16570-896-010

CONTROL ASSY.

Note: Use from Engine SN 1023550 to 1443595.

$

$

Not available

15

Honda 16576-891-000

HOLDER, CABLE

$5.99

$

In Stock, only 1 left!

0

16

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.99

$

In Stock, only 3 left!

0

21

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-08)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

22

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.99

$

In Stock, Qty 18

0

28

Honda 93500-05020-0A

SCREW, PAN (5X20) Use from Engine SN 1443596.

$1.49

$

In Stock, Qty 9

0

28

Honda 93500-05025-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X25)

Note: Use up to Engine SN 1443595.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93893-05016-00

SCREW-WASHER (5X16)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
