G100 QAH (G100) - Honda Engine, Made in Japan (SN: G100-1000001 - G100-1490769) IGNITION COIL (1) Parts Diagram

Engine, Made in Japan

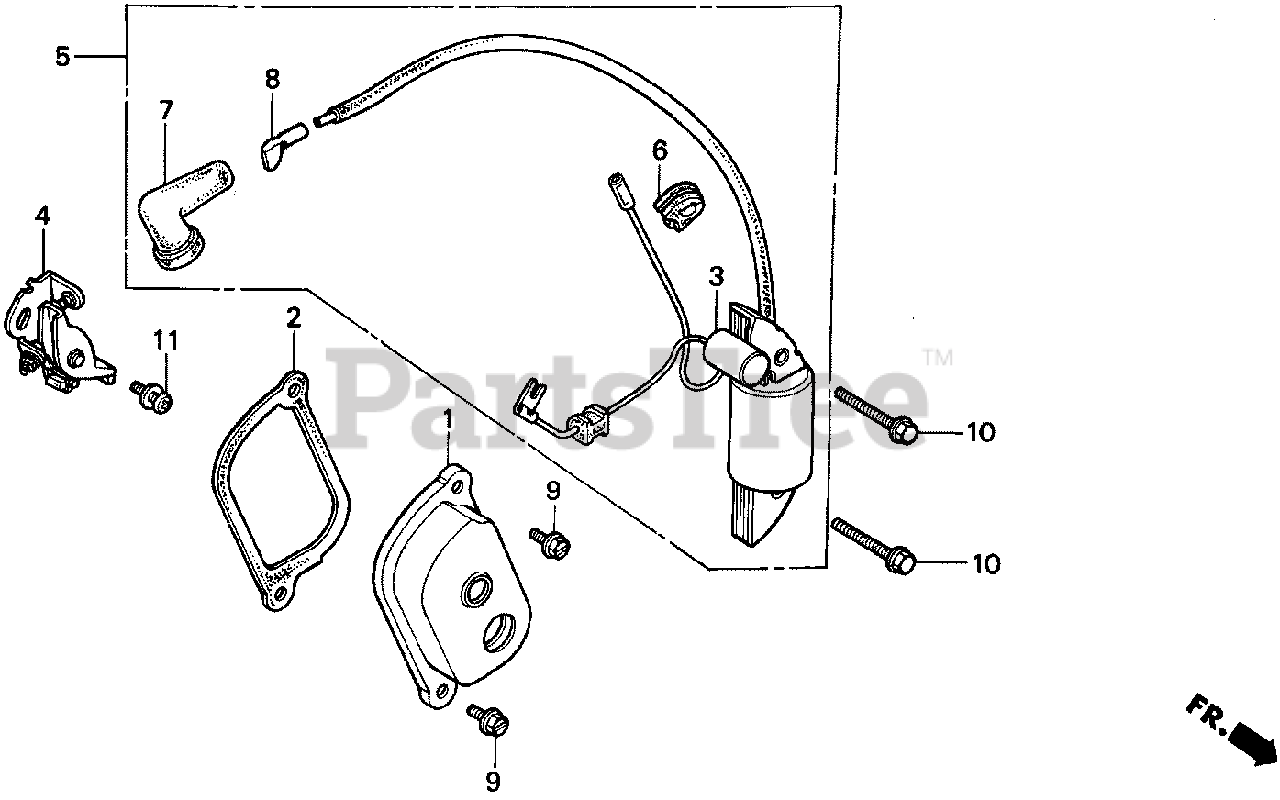

IGNITION COIL (1) Parts Diagram

  • Title

1

Honda 30211-896-000

COVER, POINTS

Note: (Honda Code 0927988).

$22.99

$

Usually ships in 3-6 days

0

2

Honda 30215-896-000

GASKET, POINT COVER

Note: (Honda Code 0927996).

$

$

Currently unavailable

2

Honda 30215-896-306

GASKET, BREAKER COVER

Note: (Honda Code 4540563).

$6.99

$

Usually ships in 3-6 days

0

3

Honda 30251-896-003

CONDENSER

Note: Use from Engine SN 1055363. (Honda Code 1033232).

$31.99

$

Usually ships in 3-6 days

0

4

Honda 30280-896-003

POINTS ASSY.

Note: (Honda Code 0928002).

$34.99

$

Usually ships in 3-6 days

0

5

Honda 30560-896-003

COIL ASSY., IGNITION (NOT AVAILABLE)

Note: (Honda Code 0928010).

$

$

Not available

6

Honda 30563-883-790

GROMMET, WIRE

Note: (Honda Code 1063817).

$

$

Currently unavailable

7

Honda 30701-888-013

CAP, IGNITION (SUMITOMO)

Note: (Honda Code 1024439).

$

$

Currently unavailable

7

Honda 30701-888-014

CAP, IGNITION (TOYO)

Note: (Honda Code 4483301).

$

$

Not available

7

Honda 30701-888-014

CAP, IGNITION (TOYO)

Note: Use from Engine SN 1091437. (Honda Code 4483301).

$

$

Not available

8

Honda 30702-888-003

TERMINAL, PLUG

Note: (Honda Code 0747782).

$10.99

$

Usually ships in 3-6 days

0

9

Honda 90002-892-000

BOLT, FLANGE (5X10)

Note: (Honda Code 0928051).

$1.99

$

In Stock, Qty 5

0

10

Honda 90007-896-000

BOLT, FLANGE (5X25)

Note: (Honda Code 0928069).

$

$

Not available

11

Honda 90051-883-000

SCREW-WASHER (5X12)

Note: (Honda Code 0649699).

$2.49

$

Usually ships in 3-6 days

0
