G1410 (8749-0) - Generac 1,350 Watt Portable Generator Generator Parts Diagram

1,350 Watt Portable Generator

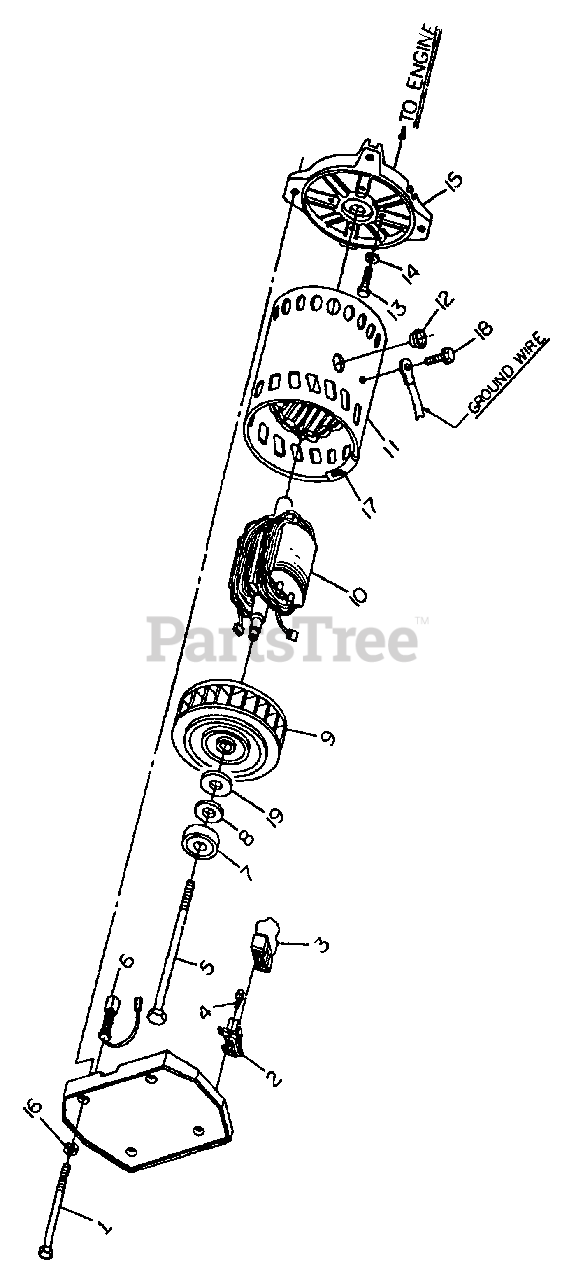

Generator Parts Diagram

  • Title

1

Briggs & Stratton 44395E

BOLT, Stator

Note: (G1450, G2450 Only)

$

$

Not available

1

Briggs & Stratton 44395H

BOLT, Stator

Note: (G4050 Only)

$

$

Currently unavailable

2

Briggs & Stratton 22694

HOUSING, Receptacle (White)
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

4

Briggs & Stratton 59636

SCREW - No. 4 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 58885A

BOLT, Rotor

Note: (G1450, G2450 Only)

$

$

Not available

5

Briggs & Stratton 58885B

BOLT, Rotor

Note: (G4050 Only)

$

$

Currently unavailable

6

Briggs & Stratton 59606

BRUSH (Red) - Positive

$

$

Not available

6

Briggs & Stratton 59606A

Brush - Neutral

$

$

Not available

7

Briggs & Stratton 24049

BEARING

$

$

Not available

8

Briggs & Stratton 58886

WASHER (Special)
(Superseded to 58886GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 58868

FAN, Cooling

$

$

Currently unavailable

10

Briggs & Stratton 61798

ASSEMBLY, Rotor and Fan

Note: (G1450 Only)

$

$

Currently unavailable

10

Briggs & Stratton 59600

ASSEMBLY, Rotor and Fan

Note: (G2450 Only)

$

$

Currently unavailable

10

Briggs & Stratton 59625

ASSEMBLY, Rotor and Fan

Note: (G4050 Only)

$

$

Currently unavailable

11

Briggs & Stratton 61780

STATOR
(Superseded to 5061780)

Note: (G1450 Only)

$5.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 61765

STATOR

Note: (G2450 Only)

$

$

Currently unavailable

11

Briggs & Stratton 63098

STATOR (G4050 Only)
(Superseded to 7063098YP)

$435.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23484D

BUSHING, Snap

$

$

Currently unavailable

13

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

14

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 60220D

HOUSING, Engine Adapter

Note: (G1450, G2450 Only)

$

$

Currently unavailable

15

Briggs & Stratton 60220E

HOUSING, Engine Adapter

Note: (G4050 Only)

$

$

Currently unavailable

16

Briggs & Stratton 50993

NUT, Lock - 1/4"-20

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 56326

TRIM, Vinyl - 3 1/2" Long

$

$

Currently unavailable

18

Briggs & Stratton 24489

SCREW (Crimtite) - No. 10-24 x 3/8"

$

$

Currently unavailable

19

-----

UNKNOWN

$

$

Not available
