G150 QZDU (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) PISTON Parts Diagram

Engine, Made in Japan

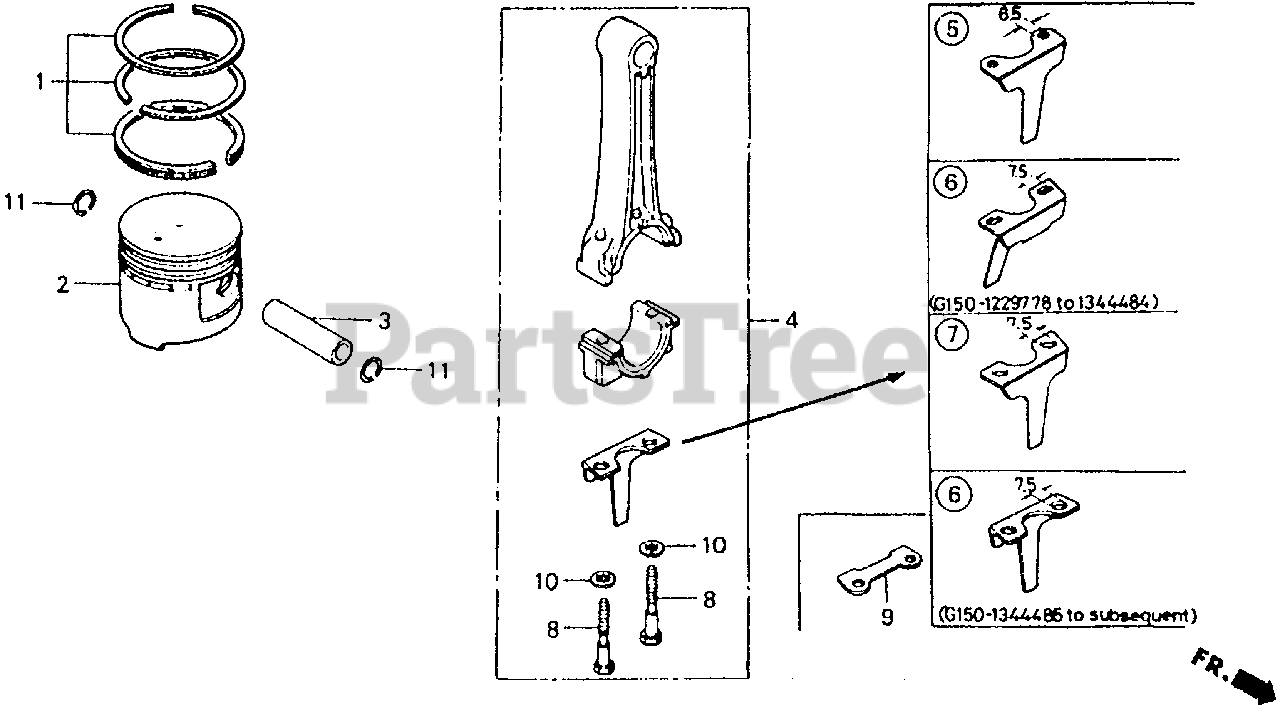

PISTON Parts Diagram

  • Title

1

Honda 13010-887-000

RING SET, PISTON (STD) (Honda Code 0635045).

$40.99

$

In Stock, only 1 left!

0

1

Honda 13011-887-000

RING SET, PISTON (OS 0.25) (OS) (Honda Code 0635052).

Note: (Optional).

$30.99

$

Usually ships in 0 days

0

1

Honda 13012-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (OS) (Honda Code 0635060).

Note: (Optional).

$

$

Not available

1

Honda 13013-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (OS) (Honda Code 0635078).

Note: (Optional).

$

$

Not available

2

Honda 13101-887-003

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 0707356).

$104.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (OS 0.25) (OS) (Honda Code 0635094).

Note: (Optional).

$

$

Not available

2

Honda 13103-887-000

PISTON (OS 0.50) (OS) (Honda Code 0635102).

Note: (Optional).

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (OS) (Honda Code 0635110).

Note: (Optional).

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON (Honda Code 0636183).

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-887-030

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0875823).
(Superseded to 13200-887-050)

$

$

Not available

4

Honda 13200-887-050

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 6400964).

$

$

Not available

4

Honda 13200-887-335

ROD ASSY., CONNECTING (US 0.25) (Honda Code 0875831).
(Superseded to 13200-887-506)

Note: (Optional).

$91.99

$

Usually ships in 3-6 days

0

6

Honda 13281-887-020

DIPPER, CONNECTING ROD (Honda Code 0875849).

$8.49

$

Usually ships in 3-6 days

0

8

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM) (Honda Code 0821272).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90432-889-003

SEE PART DETAILS - PRI; WASHER, LOCK (7MM) (Honda Code 0821280).

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM) (Honda Code 0747808).
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM) (Honda Code 0156018).

$1.49

$

Usually ships in 3-6 days

0
