G150 UA5 (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

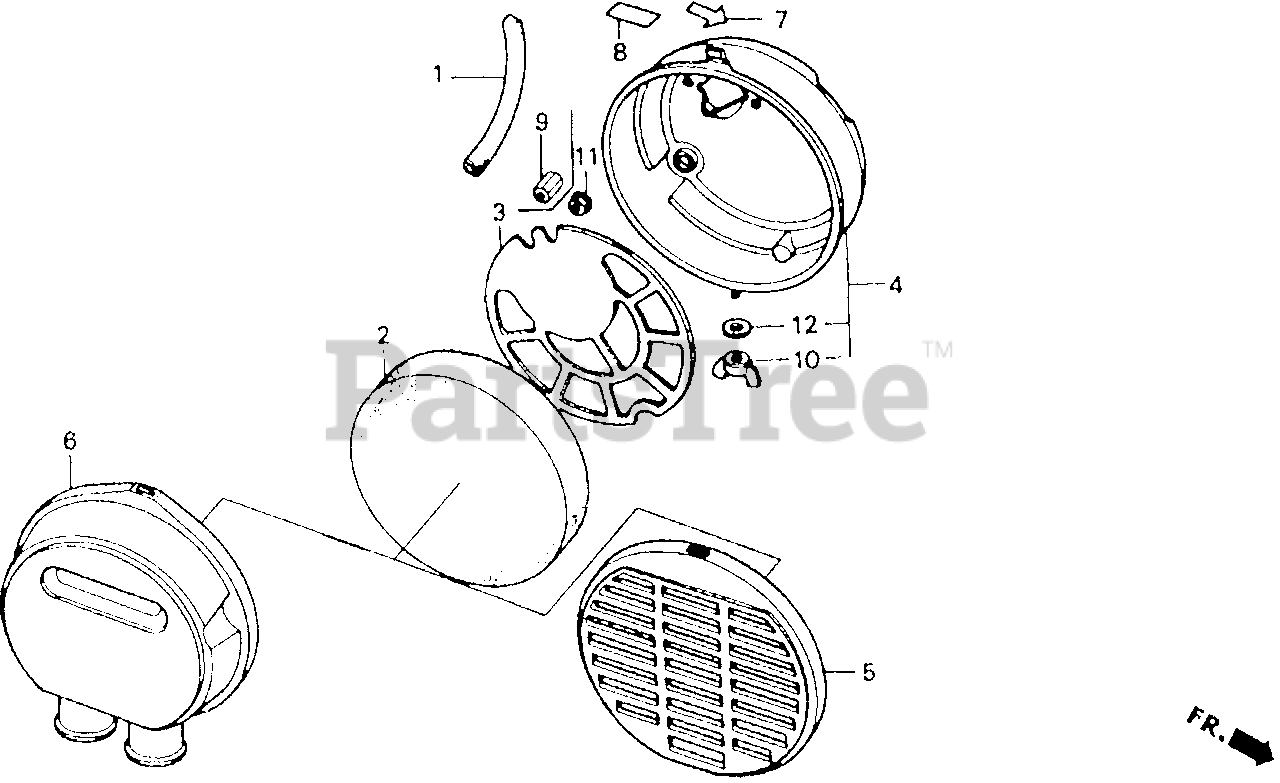

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 15721-732-000

SEE PART DETAILS - PRI; TUBE, BREATHER (Honda Code 1324995).

$

$

Not available

2

Honda 17211-883-010

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 0674598).

$9.49

$

In Stock, only 1 left!

0

3

Honda 17212-883-010

GRID, AIR CLEANER (Honda Code 0674606).

$9.49

$

In Stock, only 1 left!

0

4

Honda 17220-883-020

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER (Honda Code 0770800).

$

$

Not available

5

Honda 17231-883-020

SEE PART DETAILS - PRI; COVER, AIR CLEANER (Honda Code 0708750).

$30.99

$

Usually ships in 3-6 days

0

6

Honda 17231-883-632

SEE PART DETAILS - PRI; COVER, AIR CLEANER (Honda Code 0688499).

Note: (Optional). Use from Engine SN 1042144.

$

$

Not available

7

Honda 87528-883-661

SEE PART DETAILS - PRI; MARK, CHOKE (Honda Code 0761163).

Note: Use up to Engine SN 1131402.

$2.49

$

Usually ships in 3-6 days

0

8

Honda 87528-883-680

MARK, CHOKE (Honda Code 0803684).

Note: Use from Engine SN 1131403.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 90282-329-000

NUT (6X15) (Honda Code 0293795).

Note: Use from Engine SN 1194247 to 1366847.

$5.99

$

Usually ships in 3-6 days

0

10

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

11

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

Note: Use up to Engine SN 1194246.

$0.99

$

In Stock, Qty 12

0

11

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

Note: Use from Engine SN 1366848.

$0.99

$

In Stock, Qty 12

0

12

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM) (Honda Code 0059071).

$

$

Currently unavailable

12

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0
