G150 UA5 (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

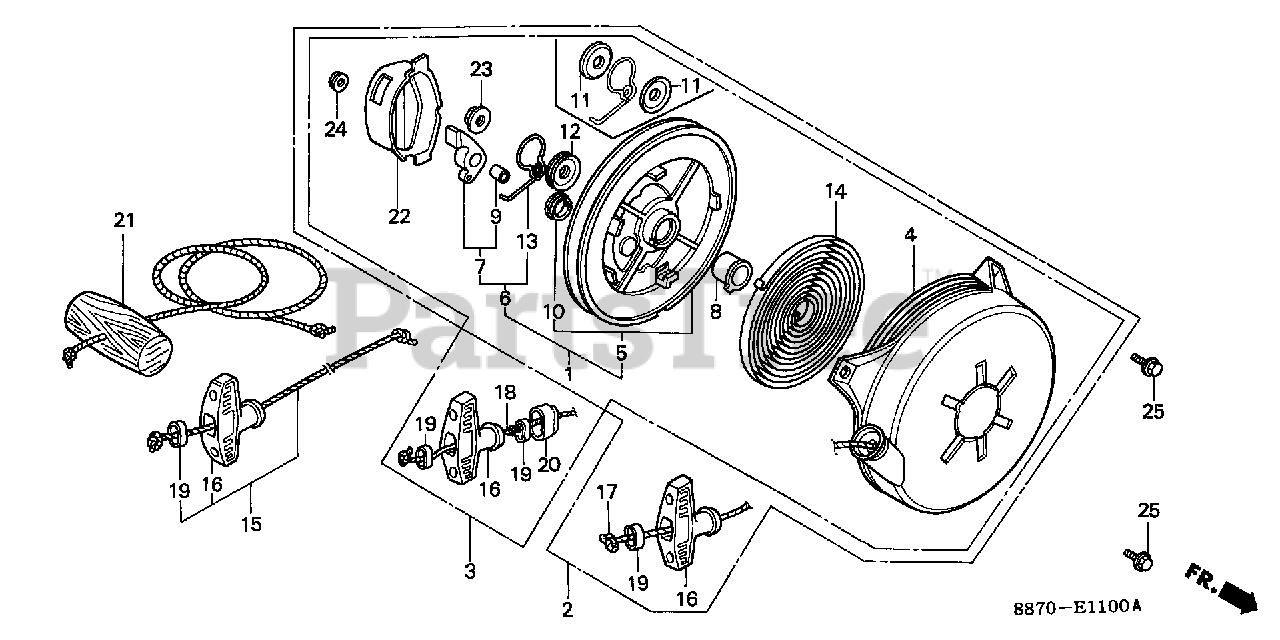

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28040-883-000

REEL KIT, STARTER Use up to Engine SN 1364584.

$

$

Not available

2

Honda 28400-883-040ZC

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-883-505)

Note: Use up to Engine SN 1364584.

$

$

Not available

4

Honda 28410-883-030ZB

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED)

Note: Use up to Engine SN 1364584.

$

$

Currently unavailable

5

Honda 28040-883-000

REEL KIT, STARTER

Note: Use up to Engine SN 1364584.

$

$

Not available

5

Honda 28420-889-010

REEL, STARTER

Note: Use from Engine SN 1364585.

$36.99

$

Usually ships in 3-6 days

0

6

Honda 28421-883-315

RATCHET KIT Use up to Engine SN 1072857.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 28421-883-315

RATCHET KIT Use up to Engine SN 1364584.

$15.99

$

Usually ships in 3-6 days

0

7

Honda 28421-883-315

RATCHET KIT

Note: Use up to Engine SN 1072857.

$15.99

$

Usually ships in 3-6 days

0

7

Honda 28422-883-020

RATCHET

Note: Use from Engine SN 1072858 to 1364584.

$

$

Not available

7

Honda 28422-883-020

RATCHET

Note: Use from Engine SN 1364585.

$

$

Not available

8

Honda 28424-883-000

BOSS, REEL

$5.99

$

Usually ships in 3-6 days

0

9

Honda 28425-883-300

BUSH, RATCHET

Note: Use up to Engine SN 1364584.

$

$

Not available

9

Honda 28425-889-300

BUSH, RATCHET

Note: Use from Engine SN 1364585.

$4.49

$

In Stock, only 1 left!

0

10

Honda 28427-883-300

BUSH, REEL STARTER

Note: Use from Engine SN 1072858.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 28431-883-000

PLATE, FRICTION

Note: Use up to Engine SN 1364584.

$

$

Not available

12

Honda 28432-883-000

PLATE, FRICTION

Note: Use from Engine SN 1364585.

$5.49

$

Usually ships in 3-6 days

0

13

Honda 28421-883-315

RATCHET KIT

Note: Use up to Engine SN 1072857.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 28441-883-020

SPRING, FRICTION

Note: Use from Engine SN 1072858 to 1364584.

$9.49

$

In Stock, only 1 left!

0

13

Honda 28441-883-020

SPRING, FRICTION

Note: Use from Engine SN 1364585.

$9.49

$

In Stock, only 1 left!

0

14

Honda 28442-883-000

SPRING, RETURN

$19.99

$

In Stock, only 2 left!

0

16

Honda 28461-883-000

GRIP, STARTER

$8.99

$

In Stock, only 1 left!

0

17

Honda 28462-883-000

SEE PART DETAILS - SUP; ROPE, STARTER

$

$

Currently unavailable

19

Honda 28463-883-000

SUPPORT, GRIP

$3.99

$

Usually ships in 3-6 days

0

21

Honda 28470-816-000

ROPE, STARTER

Note: Use from Engine SN 1453515.

$9.49

$

Usually ships in 3-6 days

0

22

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, STARTER REEL
(Superseded to 28474-YA0-N40)

$11.99

$

In Stock, only 1 left!

0

23

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

24

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

25

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 5

0
