G1600 (9483-0) - Generac 1,400 Watt Portable Generator Cradle - 1400 Watt Generator No. 67443 Parts Diagram

1,400 Watt Portable Generator

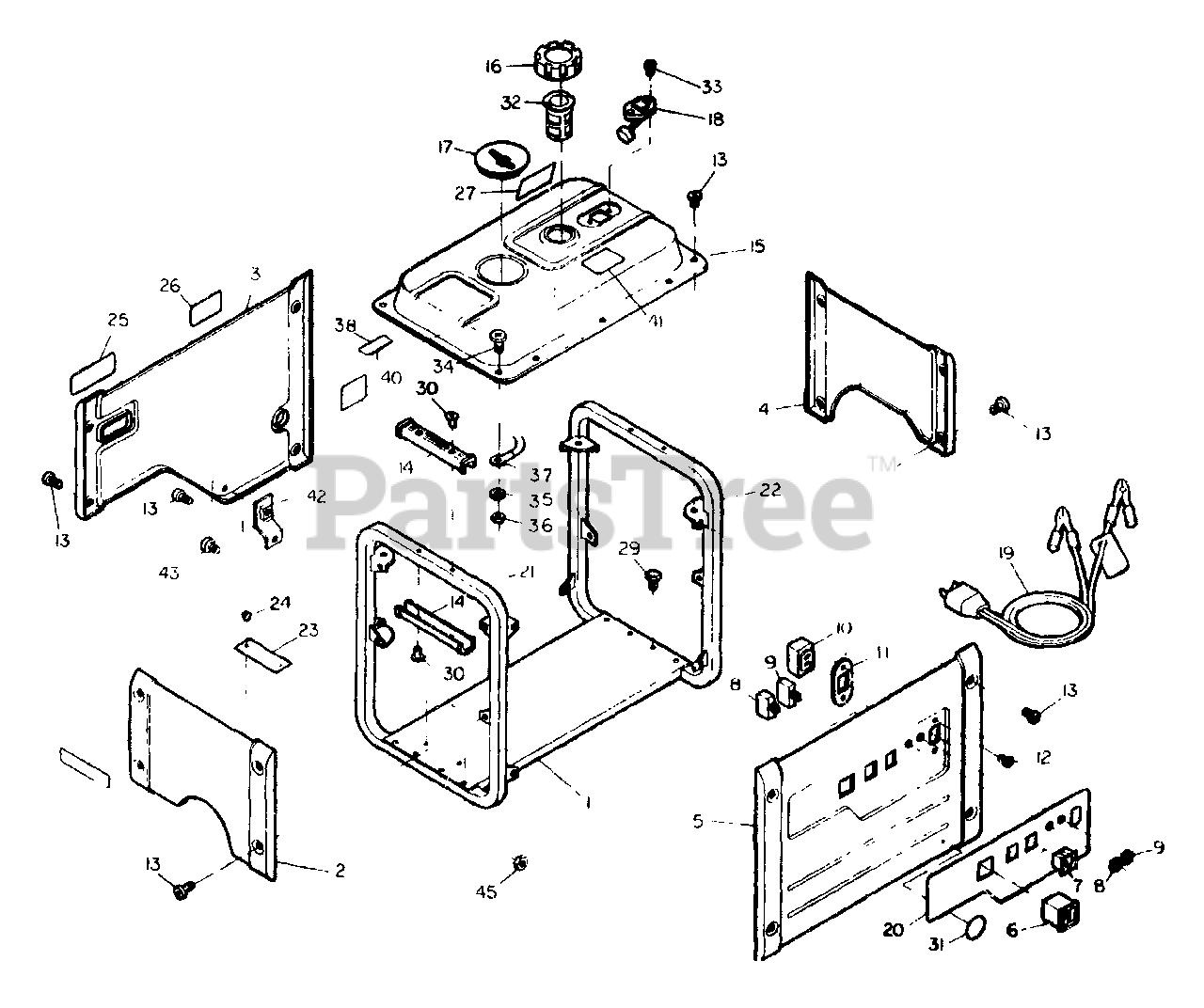

Cradle - 1400 Watt Generator No. 67443 Parts Diagram

  • Title

1

Briggs & Stratton 66394

BASE, Engine Cradle

$

$

Currently unavailable

2

Briggs & Stratton 66456

PANEL, Engine End

$

$

Currently unavailable

3

Briggs & Stratton 66457

PANEL, Muffler

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66453

PANEL, Generator End

$

$

Currently unavailable

5

Briggs & Stratton 66455

PANEL, Receptacle and Control

$

$

Currently unavailable

6

Briggs & Stratton 66817

SWITCH, Engine - Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 66818

RECEPTACLE - 120 Volts a-c, 15 Ampere
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66861

BREAKER, Circuit - 12 AC Amperes

$

$

Currently unavailable

9

Briggs & Stratton 66820

BREAKER, Circuit - 10 DC Amperes

$

$

Not available

10

Briggs & Stratton 66821

RECEPTACLE - 12 Volts d-c
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66822

RETAINER, 12 Volts d-c Receptacle
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66828

SCREW, Machine - M3-0.50 x 8mm

$20.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66827

SCREW, Machine (with LOCKWASHER) - M5-0.80 x 12 mm

$

$

Not available

14

Briggs & Stratton 66450

COVER, Handle

$

$

Not available

15

Briggs & Stratton 69661

TANK, Fuel - 2.34 U.S. Gallon

$

$

Not available

16

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

17

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

INDICATOR, Fuel Level

$

$

Not available

19

Briggs & Stratton 65787

CABLE, Battery Charge

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 67432

DECAL, Receptacle and Control Panel

$

$

Currently unavailable

21

Briggs & Stratton 66392

CRADLE, Engine End

$

$

Currently unavailable

22

Briggs & Stratton 66393

CRADLE, Generator End

$

$

Currently unavailable

23

Briggs & Stratton 67430A

PLATE, Data

$

$

Currently unavailable

24

Briggs & Stratton 66829

RIVET- 3 mm

$

$

Currently unavailable

25

Briggs & Stratton 66823

DECAL, Choke

$

$

Currently unavailable

26

Briggs & Stratton 66824

DECAL- Caution Hot

$

$

Currently unavailable

27

Briggs & Stratton 67441B

DECAL- Starting Data

$

$

Currently unavailable

29

Briggs & Stratton 67459

SCREW (Crimptite)

$

$

Currently unavailable

30

Briggs & Stratton 66831

RIVET, Black - 4 mm

$

$

Not available

31

Briggs & Stratton 66864

DECAL - U.S.D.A.

$

$

Not available

32

Briggs & Stratton 70630

FILTER, Fuel

$

$

Currently unavailable

33

Briggs & Stratton 52749

SCREW, Machine - M5-0.80 x 12mm

$

$

Currently unavailable

34

Briggs & Stratton 52619

SCREW, Machine - M5-0.80 x 20mm
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67444

WASHER, Serrated - M5

$

$

Currently unavailable

36

Briggs & Stratton 51716

NUT, Hex - M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 6639521

WIRE, Ground - Green

$

$

Currently unavailable

38

DECAL - Unleaded Fuel

Note: Contact Generac for quantity required

$

$

Not available

39

DECAL - Air Cleaner

Note: Contact Generac for quantity required

$

$

Not available

40

DECAL, Lubrication

Note: Contact Generac for quantity required

$

$

Not available

41

Briggs & Stratton 69674

DECAL- Fuel Caution

$

$

Currently unavailable

42

Briggs & Stratton 69632

BRACKET, Cover Support

$

$

Currently unavailable

43

Briggs & Stratton 66890

SCREW, Machine M6-1.00 x 12mm (w/Washer)
(Superseded to 66890GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 49813

NUT, Hex - M6
(Superseded to 49813GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 67442

MANUAL, Owner's
(Superseded to 67442GS)

$14.99

$

Usually ships in 2-12 days

0
