G2 - Husqvarna Automower Robotic Lawn Mower (2003-2006) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

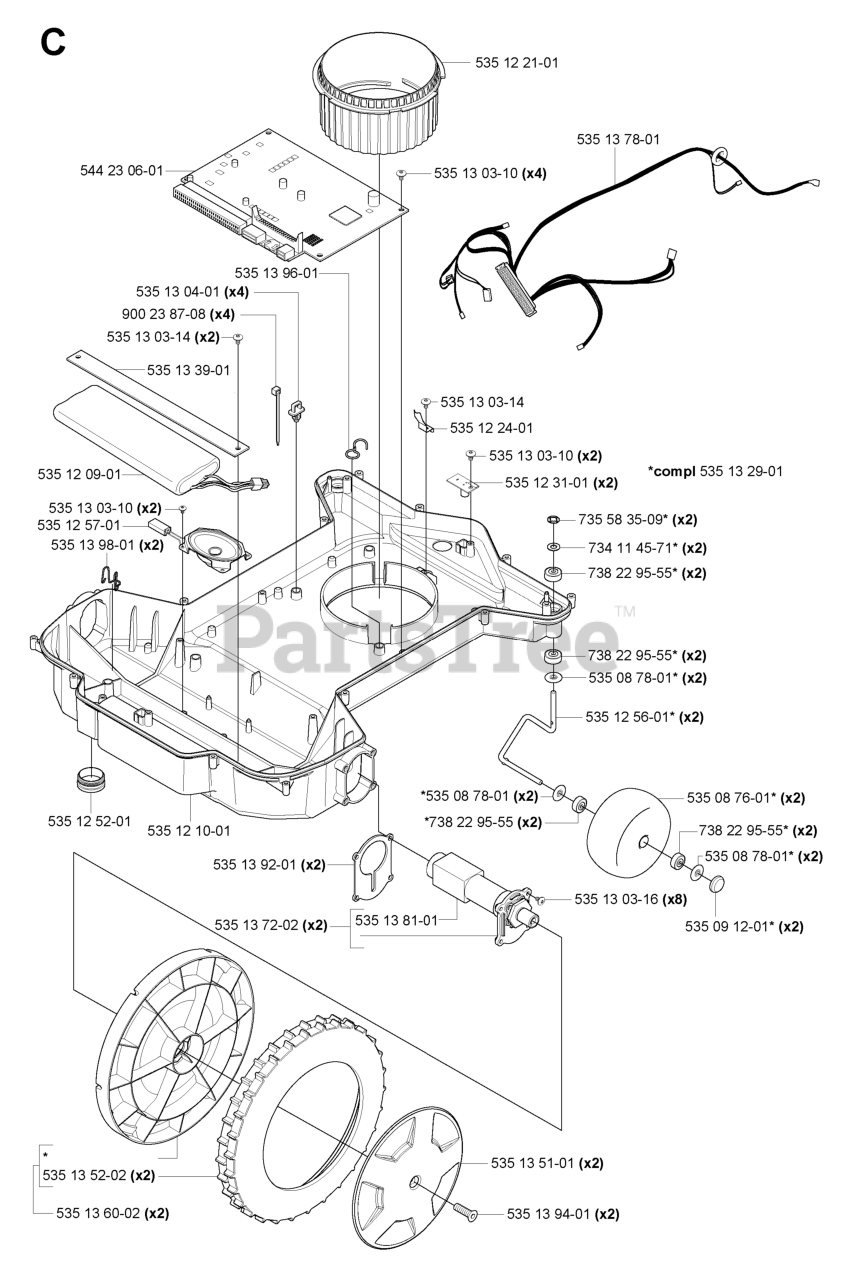

CHASSIS LOWER Parts Diagram

  • Title

535 12 31-01

Husqvarna 535123101

RP PRINTED CIRCUIT CARD
(Superseded to 592852201)

$22.99

$

Usually ships in 3-10 days

0

535 13 92-01

Husqvarna 535139201

GASKET

$7.99

$

Usually ships in 3-10 days

0

535 13 52-02

Husqvarna 535135202

TIRE
(Superseded to 535136003)

$34.99

$

Usually ships in 3-10 days

0

535 12 24-01

Husqvarna 535122401

SPRING

$

$

Not available

535 08 78-01

Husqvarna 535087801

WASHER, SEALING

$

$

Not available

535 09 12-01

Husqvarna 535091201

RETAINER, AXLE CAP

$3.49

$

Usually ships in 3-10 days

0

535 13 60-02

Husqvarna 535136002

WHEEL, CPL
(Superseded to 535136003)

$34.99

$

Usually ships in 3-10 days

0

535 13 96-01

Husqvarna 535139601

HOLDER

$

$

Not available

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 13 72-02

Husqvarna 535137202

WHEEL MOTOR W/GEARBOX

$318.99

$

Usually ships in 3-10 days

0

535 13 78-01

Husqvarna 535137801

CABLE ASSY

$

$

Not available

535 13 98-01

Husqvarna 535139801

HOLDER

$

$

Not available

535 12 10-01

Husqvarna 535121001

CHASSIS

$

$

Not available

535 13 03-16

Husqvarna 535130316

RP SCREW
(Superseded to 575543316)

$

$

Not available

535 13 81-01

Husqvarna 535138101

RP MOTOR, EXCL, GEARBOX
(Superseded to 535137202)

$318.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 13 51-01

Husqvarna 535135101

HUB CAP

$

$

Not available

535 13 39-01

Husqvarna 535133901

HOLDER

$

$

Not available

535 12 09-01

Husqvarna 535120901

BATTERY
(Superseded to 535120902)

$283.99

$

Usually ships in 3-10 days

0

535 12 56-01

Husqvarna 535125601

BRACKET

$

$

Not available

544 23 06-01

Husqvarna 544230601

MAIN CIRCUIT BOARD
(Superseded to 592852001)

$375.99

$

Usually ships in 3-10 days

0

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 13 94-01

Husqvarna 535139401

SCREW

$

$

Not available

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

738 22 95-55

Husqvarna 738229555

BEARING

$

$

Not available

734 11 45-71

Husqvarna 734114571

Washer 0 5.3

$

$

Not available

535 13 04-01

Husqvarna 535130401

BRACKET FOR BAND

$

$

Not available

900 23 87-08

Husqvarna 900238708

BAND

$

$

Not available

535 12 57-01

Husqvarna 535125701

LOUD SPEAKER

$

$

Not available

535 12 21-01

Husqvarna 535122101

NUT

$

$

Not available

535 13 29-01

Husqvarna 535132901

WHEEL

$

$

Not available

535 12 52-01

Husqvarna 535125201

PLUG

$

$

Not available

735 58 35-09

Husqvarna 735583509

WASHER

$

$

Not available

535 08 76-01

Husqvarna 535087601

RP WHEEL, FRONT
(Superseded to 575231701)

$20.99

$

Usually ships in 3-10 days

0
