G200 UA5 (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

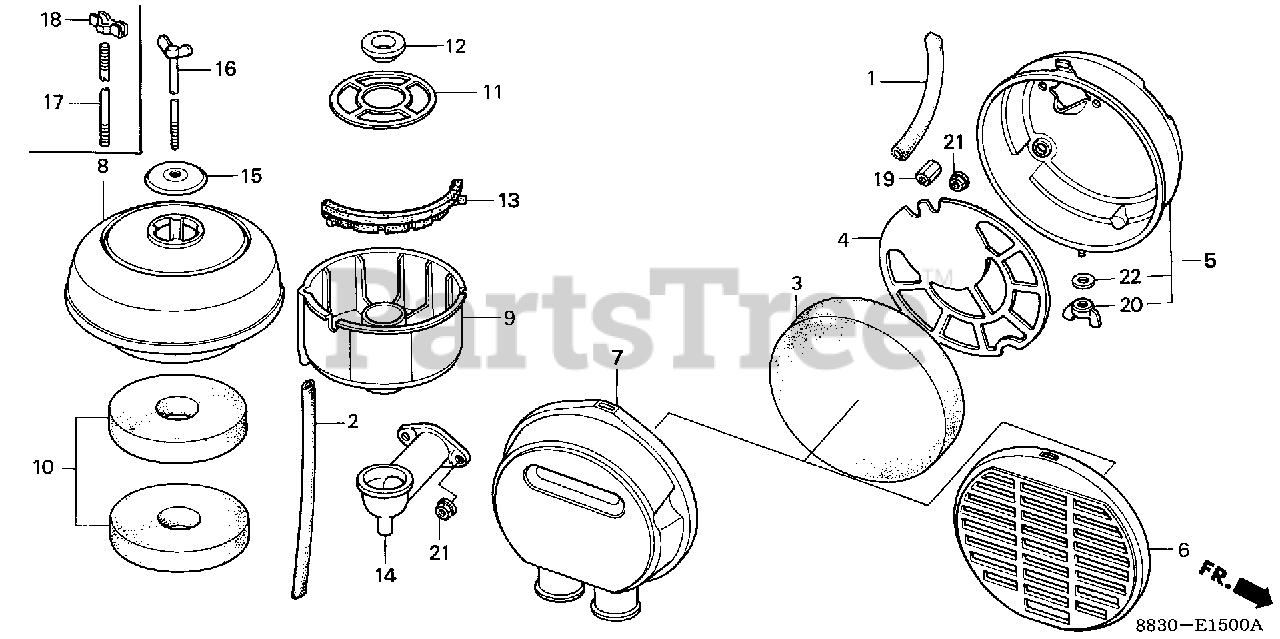

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 15721-883-010

TUBE, BREATHER Use up to Engine SN 1259988.

$

$

Currently unavailable

1

Honda 15721-883-020

TUBE, BREATHER

Note: Use from Engine SN 1259989 to 1556857.

$

$

Currently unavailable

1

Honda 15721-883-030

TUBE, BREATHER

Note: Use from Engine SN 1556858.

$7.49

$

Usually ships in 3-6 days

0

3

Honda 17211-883-010

ELEMENT, AIR CLEANER

$9.49

$

In Stock, only 1 left!

0

4

Honda 17212-883-010

GRID, AIR CLEANER

$11.99

$

Usually ships in 3-6 days

0

5

Honda 17220-883-020

HOUSING, AIR CLEANER Use up to Engine SN 1259988.

$

$

Not available

5

Honda 17220-883-020

HOUSING, AIR CLEANER

Note: Use from Engine SN 1259989.

$

$

Not available

6

Honda 17231-883-020

COVER, AIR CLEANER Use up to Engine SN 1112750.

$

$

Not available

6

Honda 17231-883-020

COVER, AIR CLEANER

Note: Use from Engine SN 1112751.

$

$

Not available

7

Honda 17231-883-632

COVER, AIR CLEANER

$

$

Not available

19

Honda 90282-329-000

NUT (6X15) Use from Engine SN 1298562 to 1537530.

$7.49

$

Usually ships in 3-6 days

0

20

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.99

$

In Stock, Qty 14

0

21

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 6

0

22

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
