G2450 (8773-0) - Generac 2,250 Watt Portable Generator Sheet Metal And Base No. 63157 Parts Diagram

2,250 Watt Portable Generator

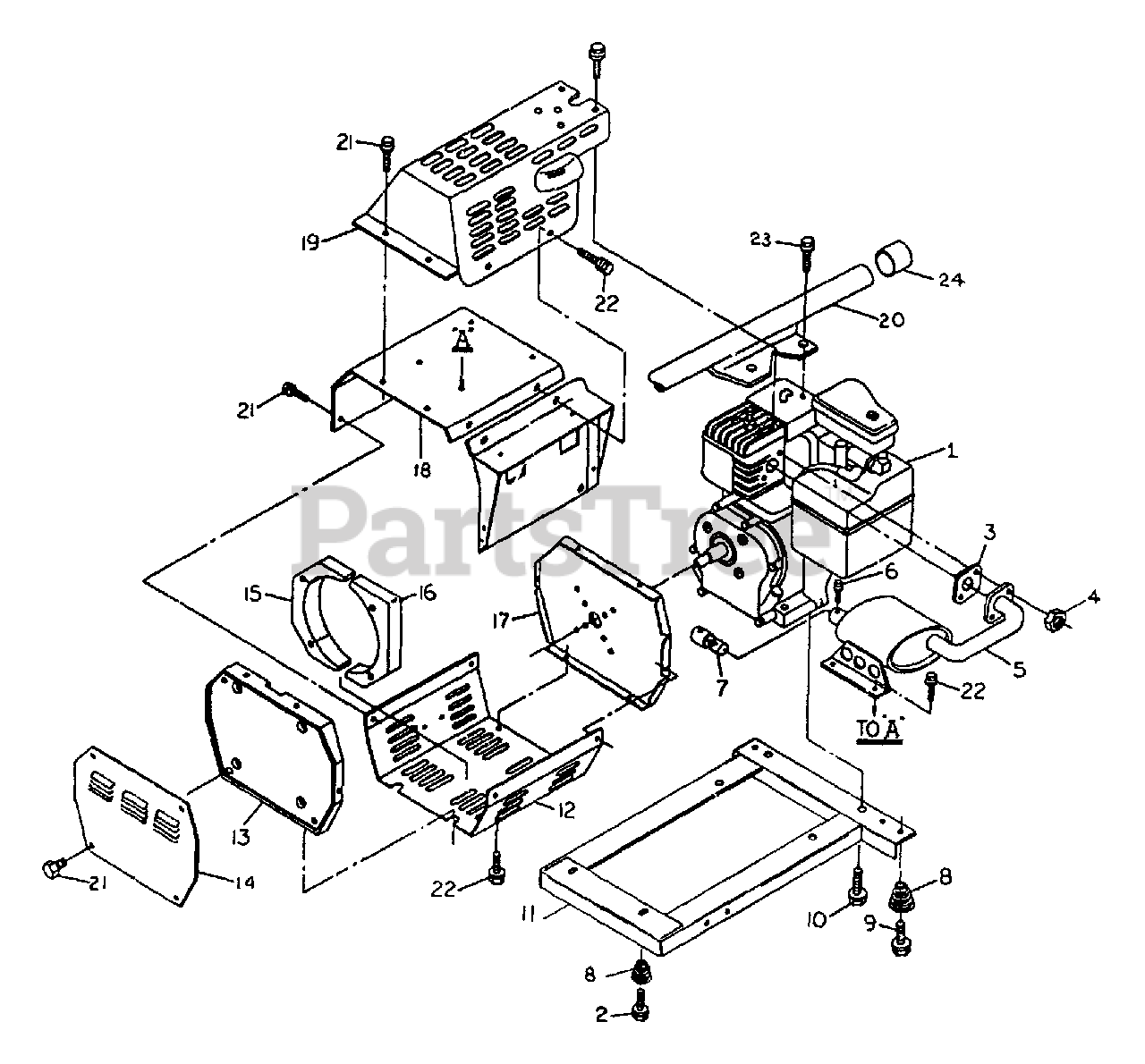

Sheet Metal And Base No. 63157 Parts Diagram

  • Title

1

Briggs & Stratton 62255

ENGINE - Kawasaki 5 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 59634

BOLT (Plastite) - 1/4" x 1"

$

$

Not available

3

Briggs & Stratton 63129

GASKET, Exhaust
(Superseded to 63129GS)

$

$

Not available

4

Briggs & Stratton 45771

NUT, Hex - M8-1.25

$

$

Not available

5

Briggs & Stratton 63102

MUFFLER, Exhaust

Note: (Includes Item 6, 7)

$

$

Not available

6

Briggs & Stratton 22774

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

7

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

8

Briggs & Stratton 23594

SPRING, Mounting

$

$

Currently unavailable

9

Briggs & Stratton 24979

BOLT - 5/16"-18 x 58"
(Superseded to 7024979YP)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

BOLT - 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 63160B

BASE, Mounting

$

$

Currently unavailable

12

Briggs & Stratton 58876

WRAPPER, Lower Generator
(Superseded to 7058876YP)

$

$

Not available

13

Briggs & Stratton 61762

PANEL, End

$

$

Currently unavailable

14

Briggs & Stratton 61771

COVER, End Panel

$

$

Currently unavailable

15

Briggs & Stratton 58887B

BAFFLE, Generator Air - Left

$

$

Currently unavailable

16

Briggs & Stratton 58887C

BAFFLE, Generator Air - Right

$

$

Currently unavailable

17

Briggs & Stratton 60209A

ADAPTER, Sheet Metal

$

$

Currently unavailable

18

Briggs & Stratton 61763A

WRAPPER, Upper Generator

$

$

Currently unavailable

19

Briggs & Stratton 63103

COVER, Muffler and Head

$

$

Not available

20

Briggs & Stratton 63105

HANDLE, Carrying

$

$

Currently unavailable

21

Briggs & Stratton 59635

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

22

Briggs & Stratton 56892

SCREW - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 51730

BOLT - M10-1.50 x 60 mm
(Superseded to 51730GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 46476

CAP, Square Plastic
(Superseded to 46476GS)

$

$

Not available
