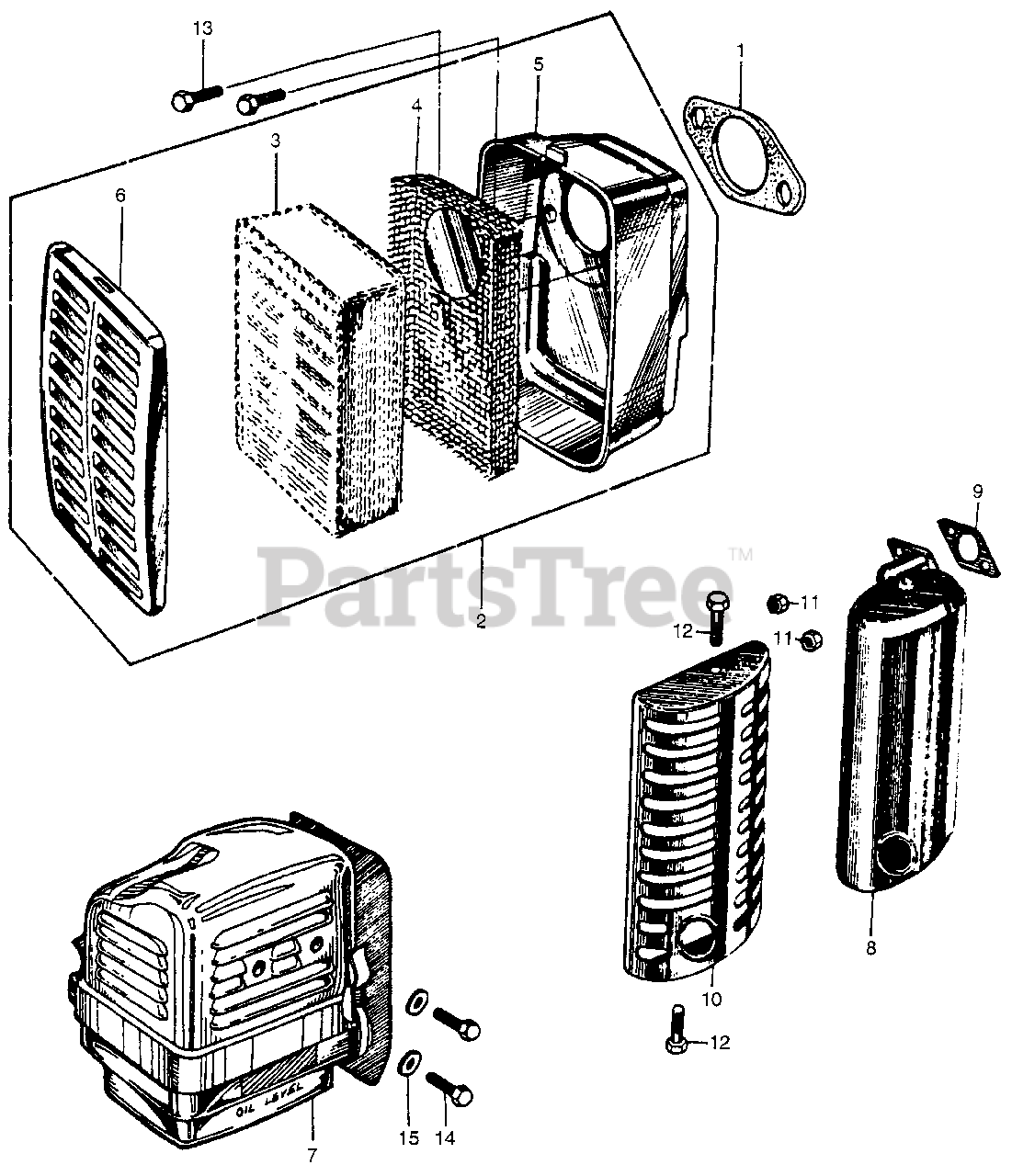

G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) AIR CLEANER Parts Diagram

Engine, Made in Japan

AIR CLEANER Parts Diagram

  • Title

1

Honda 16269-805-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 17200-807-641

AIR CLEANER ASSY. (N/A: SEE COMPONENTS)

$106.99

$

Usually ships in 3-6 days

0

3

Honda 17211-865-630

ELEMENT, AIR CLEANER

$

$

Not available

4

Honda 17212-807-641

GRID, AIR CLEANER (NOT AVAILABLE)

$

$

Not available

5

Honda 17221-807-642C

HOUSING, AIR CLEANER *R2* (SCARLET)

$

$

Currently unavailable

6

Honda 17231-807-641

COVER, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17400-807-810C

CLEANER ASSY., OIL BATH TYPE *R2* (SCARLET)

$

$

Not available

8

Honda 18300-805-811

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 18351-805-000

GASKET, MUFFLER

$

$

Not available

10

Honda 18361-805-010

PROTECTOR, MUFFLER

$

$

Not available

11

Honda 90381-703-000

NUT, HEX. (6MM) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 92000-06010-02

BOLT, HEX. (6X10) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 92101-06090-0A

BOLT, HEX. (6X90)

$

$

Not available

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
