G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) FUEL TANK Parts Diagram

Engine, Made in Japan

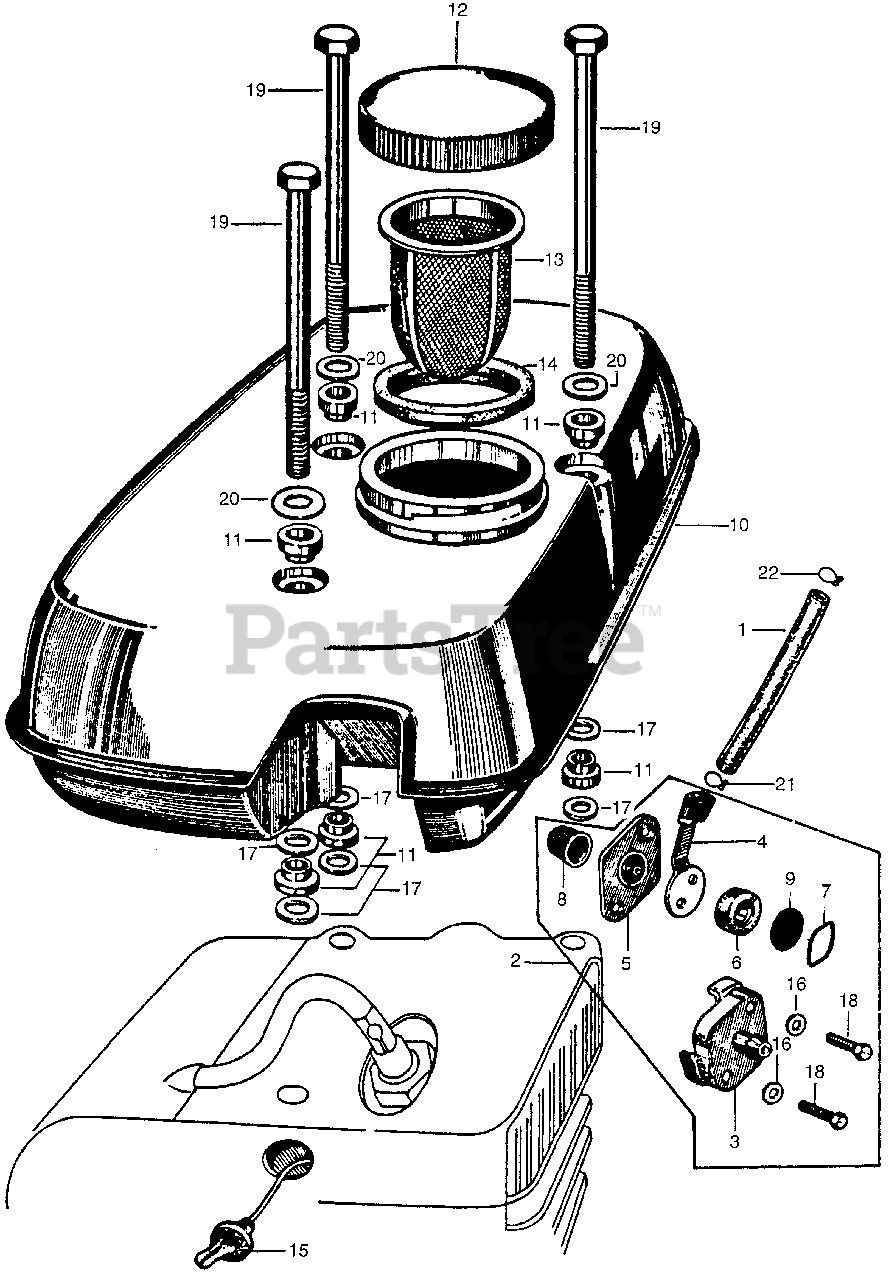

FUEL TANK Parts Diagram

  • Title

1

Honda 16851-805-010

TUBE, FUEL (NOT AVAILABLE)

Note: Use from Engine SN 1000130 to 1140820.

$

$

Currently unavailable

1

Honda 16851-805-020

TUBE, FUEL

Note: Use from Engine SN 1140830.

$

$

Not available

2

Honda 16950-805-305

SEE PART DETAILS - PRI; PETCOCK ASSY. (N/A: SEE COMPONENTS)

$29.99

$

Usually ships in 3-6 days

0

3

Honda 16961-806-000

BODY, PETCOCK

$

$

Not available

4

Honda 16972-806-000

LEVER, PETCOCK

$

$

Not available

5

Honda 16973-805-000

GASKET A, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16974-805-000

GASKET B, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16975-805-000

SPRING, PETCOCK LEVER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16981-805-000

FILTER A, CHECK (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16982-805-000

FILTER B, CHECK

$

$

Currently unavailable

10

Honda 17500-805-020N

TANK, FUEL *PB1* (DARK BLUE)

$

$

Not available

11

Honda 17638-805-000

INSULATOR, TANK

$

$

Not available

12

Honda 17650-805-750

CAP, FUEL TANK

$

$

Not available

13

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

14

Honda 17673-703-010

GASKET, FILTER

$

$

Not available

15

Honda 36100-811-000

SWITCH ASSY., ENGINE

$

$

Currently unavailable

16

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.49

$

In Stock, only 2 left!

0

17

Honda 90503-805-000

WASHER A, INSULATOR

$

$

Not available

18

Honda 92101-06022-0A

BOLT, HEX. (6X22)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 92030-10160

BOLT, HEX. (10X160) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 94101-10000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 13

0

22

Honda 95002-80000

CLIP, TUBE (C12)

$0.99

$

In Stock, only 4 left!

0
