G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) MAGNETO Parts Diagram

Engine, Made in Japan

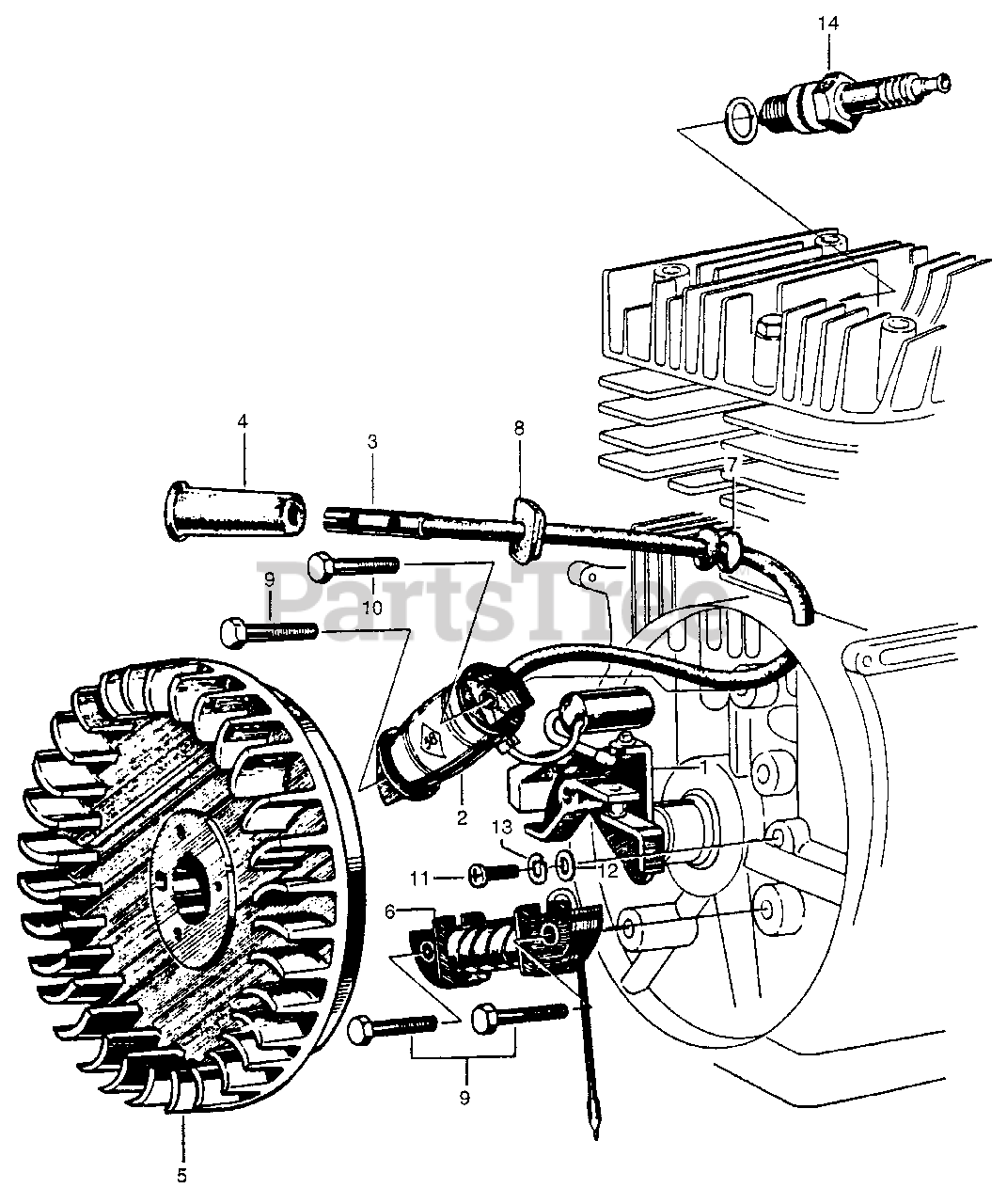

MAGNETO Parts Diagram

  • Title

1

Honda 30280-805-014

SEE PART DETAILS - PRI; CONDENSER, BREAKER (NOT AVAILABLE)

Note: Use from Engine SN 1000130 to 1020780.

$

$

Not available

1

Honda 30280-805-024

CONDENSER, BREAKER

Note: Use from Engine SN 1020781.

$

$

Not available

2

Honda 30560-805-020

COIL, IGNITION

Note: Use from Engine SN 1035755.

$

$

Not available

2

Honda 30560-805-315

COIL, IGNITION (NOT AVAILABLE)

Note: Use from Engine SN 1020748 to 1035754.

$

$

Not available

2

Honda 30560-809-013

COIL, IGNITION

Note: Use from Engine SN 1000130 to 1020747.

$

$

Not available

3

Honda 30600-805-000

TERMINAL, IGNITION

Note: Use from Engine SN 1000130 to 1035754.

$

$

Not available

3

Honda 30600-805-010

TERMINAL, IGNITION

Note: Use from Engine SN 1035755.

$

$

Not available

4

Honda 30611-805-000

CAP, IGNITION TERMINAL

Note: Use from Engine SN 1000130 to 1035754.

$

$

Not available

4

Honda 30611-805-010

CAP, IGNITION TERMINAL (NOT AVAILABLE)

Note: Use from Engine SN 1035755.

$

$

Currently unavailable

5

Honda 31121-805-040

SEE PART DETAILS - PRI; FLYWHEEL, MAGNETO (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31501-805-812

COIL, LAMP (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 32952-805-010

GROMMET, WIRE

Note: Use from Engine SN 1000130 to 1035754.

$

$

Not available

7

Honda 32952-805-020

GROMMET, WIRE (NOT AVAILABLE)

Note: Use from Engine SN 1035755.

$

$

Currently unavailable

8

Honda 32957-805-000

GROMMET, IGNITION WIRE

Note: Use from Engine SN 1035755.

$

$

Not available

9

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 92101-06035-0A

BOLT, HEX. (6X35)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 92300-05014

BOLT, RECESSED (5X14) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

13

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 98076-56710

SEE PART DETAILS - SUP; SPARK PLUG (B6HS) (NGK)

$

$

Not available

14

Honda 98076-56740

SEE PART DETAILS - PRI; SPARK PLUG (B6HS) (NGK)

$3.49

$

Usually ships in 3-6 days

0
