G300 HQB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) REDUCTION (1/6) Parts Diagram

Engine, Made in Japan

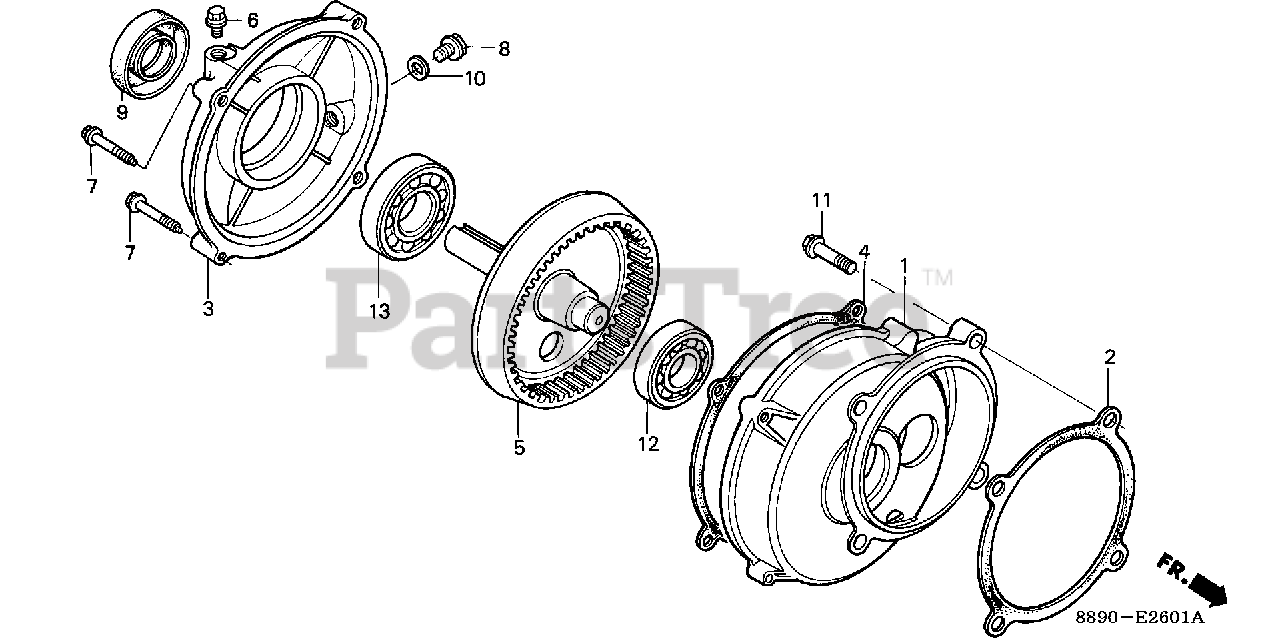

REDUCTION (1/6) Parts Diagram

  • Title

1

Honda 21521-889-305

CASE, REDUCTION

Note: Use up to Engine SN 1148826.

$

$

Not available

1

Honda 21521-889-741

CASE, REDUCTION

Note: Use from Engine SN 1148827.

$

$

Not available

2

Honda 21591-889-740

GASKET, REDUCTION CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 21621-889-740

COVER, REDUCTION

Note: Use up to Engine SN 1148826.

$

$

Not available

3

Honda 21621-889-741

COVER, REDUCTION

Note: Use from Engine SN 1148827.

$

$

Not available

4

Honda 21692-ZH8-800

GASKET, REDUCTION COVER

Note: Use from Engine SN 1148827.

$10.99

$

In Stock, Qty 10

0

4

Honda 21692-883-740

GASKET, REDUCTION COVER (NOT AVAILABLE)

Note: Use up to Engine SN 1148826.

$

$

Currently unavailable

5

Honda 23710-889-740

SHAFT, P.T.O. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 90002-883-740

BOLT, BREATHING

$5.49

$

Usually ships in 3-6 days

0

7

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

Note: Use up to Engine SN 1148826.

$3.49

$

In Stock, only 2 left!

0

7

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note: Use from Engine SN 1148827.

$2.99

$

In Stock, only 3 left!

0

8

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

8

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, Qty 9

0

9

Honda 91201-890-003

OIL SEAL (30X46X8)

$10.99

$

In Stock, Qty 7

0

10

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 96100-62040-00

BEARING, RADIAL BALL (6204)

$15.99

$

In Stock, only 2 left!

0

13

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$28.99

$

Usually ships in 3-6 days

0
