G300 SZC2 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) POINTS + IGNITION COIL Parts Diagram

Engine, Made in Japan

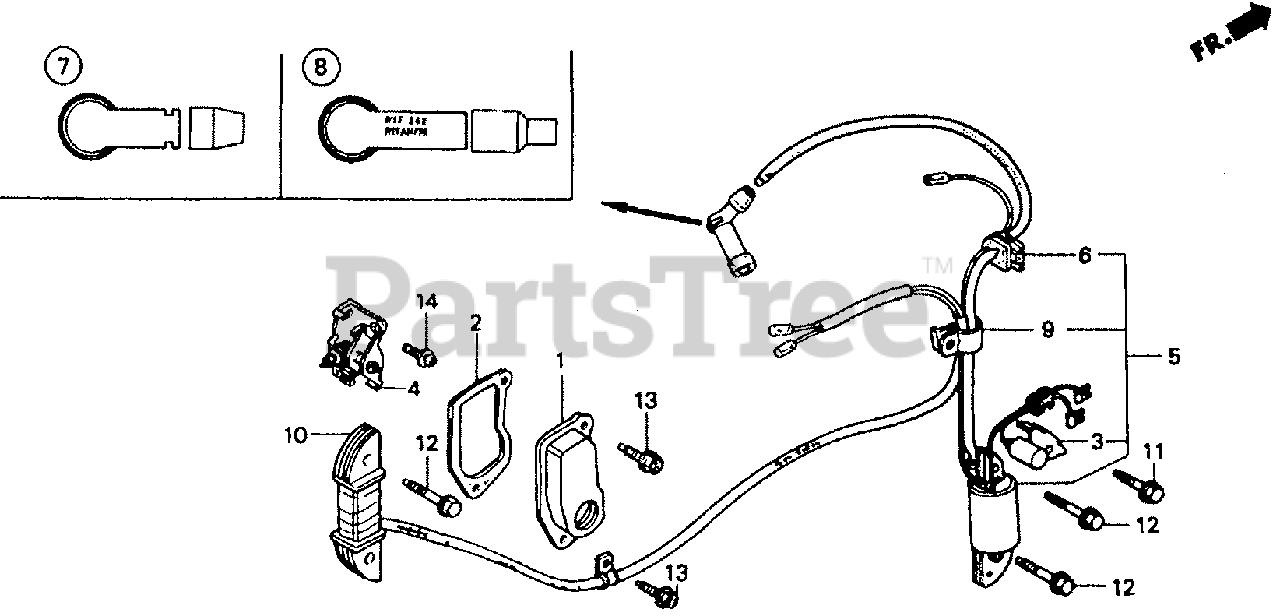

POINTS + IGNITION COIL Parts Diagram

  • Title
1

Honda 30211-889-000

COVER, POINTS (Honda Code 0755926).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 30215-889-306

SEE PART DETAILS - PRI; GASKET, COVER (Honda Code 4543161).

Note: (Optional).

$

$

Not available

3

Honda 30251-883-003

CONDENSER (Honda Code 1002237).

Note: (Optional).

$19.99

$

In Stock, only 1 left!

0

4

Honda 30280-883-005

POINTS ASSY. (Honda Code 0636746).

Note: (Optional).

$31.99

$

In Stock, only 1 left!

0

5

Honda 30560-889-801

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (LAMP COIL) (Honda Code 0760785).

Note: (Optional).

$

$

Not available

6

Honda 30563-890-003

GROMMET, WIRE (Honda Code 0755983).

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

7

Honda 30600-841-000

TERMINAL ASSY., IGNITION (Honda Code 0181289).

Note: (Optional). Use up to Engine SN 1440678.

$

$

Not available

7

Honda 30600-889-003

TERMINAL ASSY., IGNITION (Honda Code 4614251).

Note: Use from Engine SN 1440679.

$20.99

$

Usually ships in 3-6 days

0

8

Honda 30700-865-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3637048).

Note: (Optional).

$

$

Not available

9

Honda 30702-890-000

CLAMP, IGNITION WIRE (Honda Code 0756007).

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

10

Honda 31630-890-801

COIL ASSY., CHARGE (SILICON RECTIFIER) (Honda Code 0756197).

Note: (Optional).

$

$

Not available

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0

12

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0
