G3000 (9072-0) - Generac 2,250 Watt Portable Generator Generator Parts Diagram

2,250 Watt Portable Generator

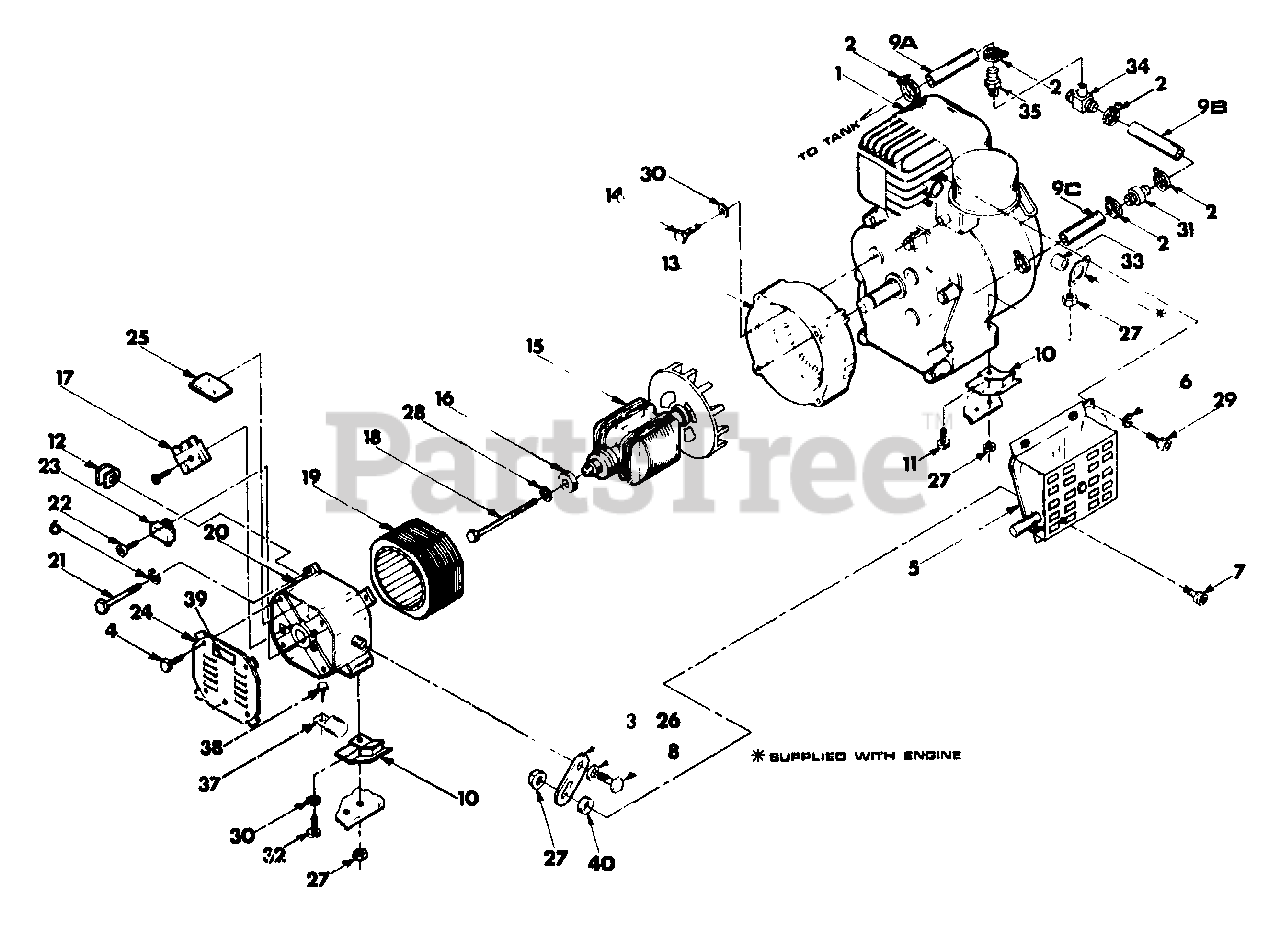

Generator Parts Diagram

  • Title

1

Briggs & Stratton 71393

ENGINE-Briggs & Stratton 5 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 48031C

CLAMP, Fuel Line

$

$

Not available

3

Briggs & Stratton 75448

BRACKET, Exhaust Muffler Support
(Superseded to 7075448YP)

$34.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 74908

SCREW (Taptite)- M5-0.80 x 8mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72083

MUFFLER, Spark Arrestor Type

$

$

Not available

6

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 76222

CAPSCREW, Socket Head- M8-1.25 x 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 51755

CAPSCREW, Hex Head- M10-1.50 x 16mm

$

$

Currently unavailable

9A

Briggs & Stratton 47662V

HOSE, Fuel- 13-1/4" long

$

$

Currently unavailable

9B

Briggs & Stratton 47662AE

HOSE, Fuel- 12" long

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE, Fuel-3" long

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 39414

SCREW- M8-1.25 x 35mm
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22336

CAPSCREW, Hex Head-5/16"-24 x 3/4"

$

$

Not available

15

Briggs & Stratton 74713

ROTOR ASSY

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

18

Briggs & Stratton 24420

BOLT, Rotor-5/16"-24 x 5.5" long

$

$

Not available

19

Briggs & Stratton 74706

STATOR ASSY
(Superseded to 5020884SM)

$25.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

21

Briggs & Stratton 66449C

BOLT, Stator- M6-1.00 x 80mm

$

$

Currently unavailable

22

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.80 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

25

Briggs & Stratton 66850

BOARD, Bridge Rectifier Circuit
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 46526

LOCKWASHER- M10

$

$

Not available

27

Briggs & Stratton 52858

NUT, Flanged Hex- M8
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 67451

FLATWASHER (Special)- M8

$

$

Currently unavailable

29

Briggs & Stratton 39974

CAPSCREW, Socket Head- 1/4"-20 x 1/2"

$

$

Currently unavailable

30

Briggs & Stratton 22129

LOCKWASHER- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 70644

SCREW, Pan Head- M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 60211

LINER, Port

$

$

Currently unavailable

34

Briggs & Stratton 71384

VALVE, Fuel Shutoff

$

$

Not available

35

Briggs & Stratton 28414

FITTING, Barbed- 1/4"

$

$

Currently unavailable

37

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

38

Briggs & Stratton 24489

SCREW (Taptite)- No. 10-32 x 5/8"

$

$

Currently unavailable

39

Briggs & Stratton 76247

DECAL- Grounded Neutral
(Superseded to 76247GS)

$9.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 22625C

SPACER

$

$

Currently unavailable
