G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) CARBURETOR Parts Diagram

Engine, Made in Japan

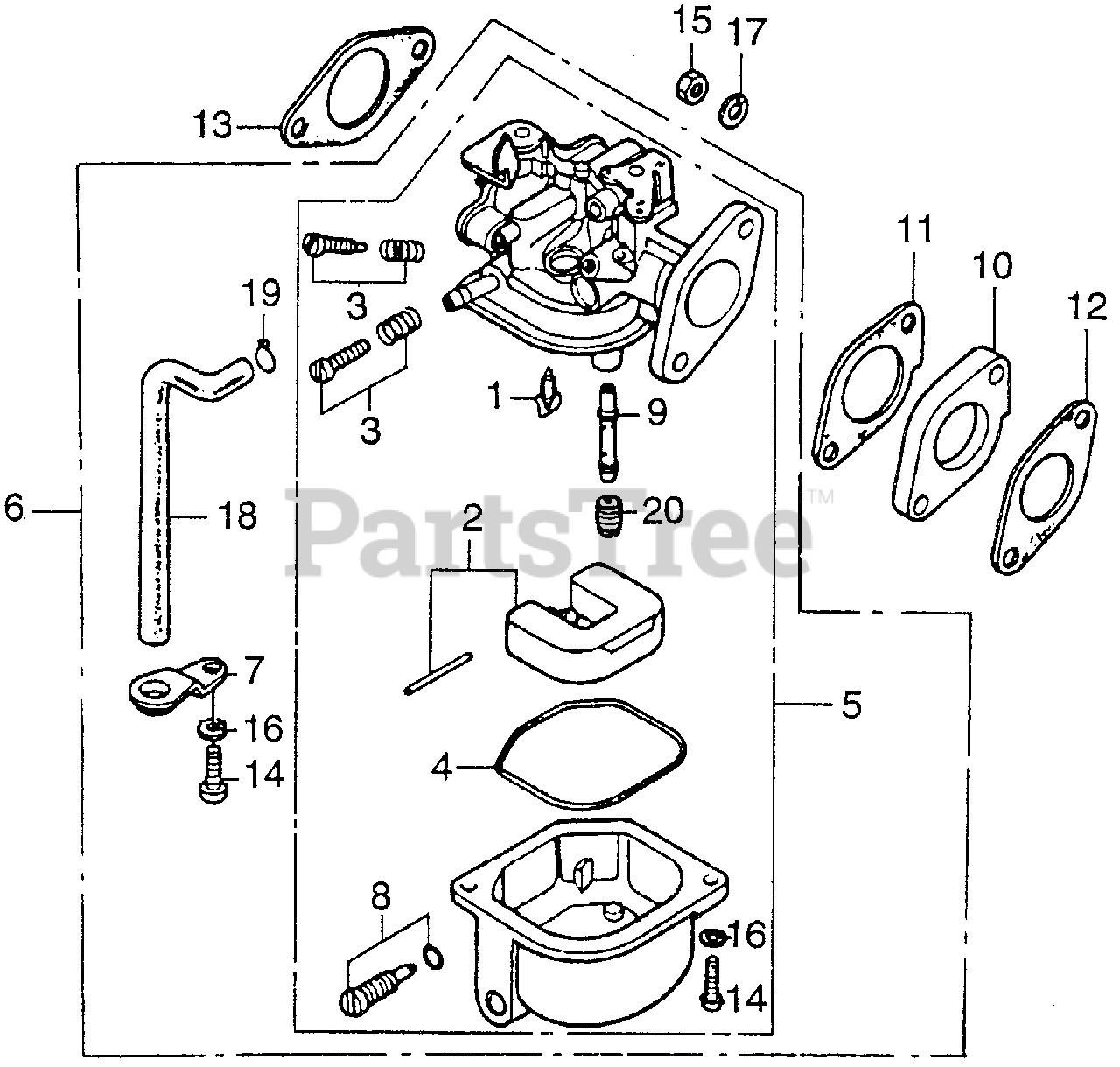

CARBURETOR Parts Diagram

  • Title

1

Honda 16011-721-004

VALVE SET, FLOAT (NOT AVAILABLE) (Honda Code 0441378).

$

$

Not available

2

Honda 16013-721-014

SEE PART DETAILS - PRI; FLOAT SET (Honda Code 0661595).

Note: Use up to Engine SN BB04AA.

$

$

Not available

2

Honda 16013-721-014

SEE PART DETAILS - PRI; FLOAT SET (Honda Code 0661595).

Note: Use from Engine SN BB04AB.

$

$

Not available

3

Honda 16016-721-004

SCREW SET (Honda Code 0441394).

Note: Use up to Engine SN BB04AA.

$

$

Not available

3

Honda 16016-721-305

SCREW SET (Honda Code 1039361).

Note: Use from Engine SN BB04AB.

$

$

Not available

4

Honda 16075-878-004

O-RING (NOT AVAILABLE) (Honda Code 0441402).

$

$

Currently unavailable

5

Honda 16100-878-325

SEE PART DETAILS - PRI; CARBURETOR ASSY. (NOT AVAILABLE) (Honda Code 0916205).

Note: Use up to Engine SN 1050516.

$

$

Currently unavailable

6

Honda 16100-878-425

SEE PART DETAILS - PRI; CARBURETOR ASSY. (N/A: USE COMPONENT PARTS) (Honda Code 0950972).

Note: Use from Engine SN 1050517.

$

$

Currently unavailable

7

Honda 16119-878-700

PLATE, STAY (Honda Code 0488882).

Note: Use from Engine SN 1050517.

$

$

Not available

8

Honda 16162-878-004

SCREW, DRAIN (Honda Code 0441428).

$

$

Currently unavailable

9

Honda 16166-878-004

NOZZLE, MAIN (Honda Code 0441436).

$

$

Currently unavailable

10

Honda 16211-878-000

INSULATOR, CARBURETOR (NOT AVAILABLE) (Honda Code 0441444).

$

$

Currently unavailable

11

Honda 16221-878-000

SEE PART DETAILS - SUP; GASKET A, CARBURETOR INSULATOR (Honda Code 0441451).

$

$

Currently unavailable

12

Honda 16222-878-000

SEE PART DETAILS - SUP; GASKET B, CARBURETOR INSULATOR (Honda Code 0441469).

$

$

Currently unavailable

13

Honda 17481-878-000

SEE PART DETAILS - SUP; GASKET, AIR CLEANER ELBOW (Honda Code 0441683).

$

$

Currently unavailable

14

Honda 93500-04012-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0169466).

$0.99

$

Usually ships in 3-6 days

0

15

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 0590455).

$1.99

$

In Stock, Qty 6

0

16

Honda 94111-04000

WASHER, SPRING (4MM) (Honda Code 0058958).

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95001-35003-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (3.5X3000) (3.5X120) (Honda Code 4260329).

Note: Use from Engine SN 1050517.

$29.99

$

In Stock, only 1 left!

0

19

Honda 95002-02070

CLIP, TUBE (B7) (Honda Code 0250639).

Note: Use from Engine SN 1050517.

$2.49

$

In Stock, Qty 6

0

20

Honda 99105-663-0700

JET, AIR (#70) (NOT AVAILABLE) (Honda Code 0442095).

$

$

Currently unavailable
