G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) CARBURETOR Parts Diagram

Engine, Made in Japan

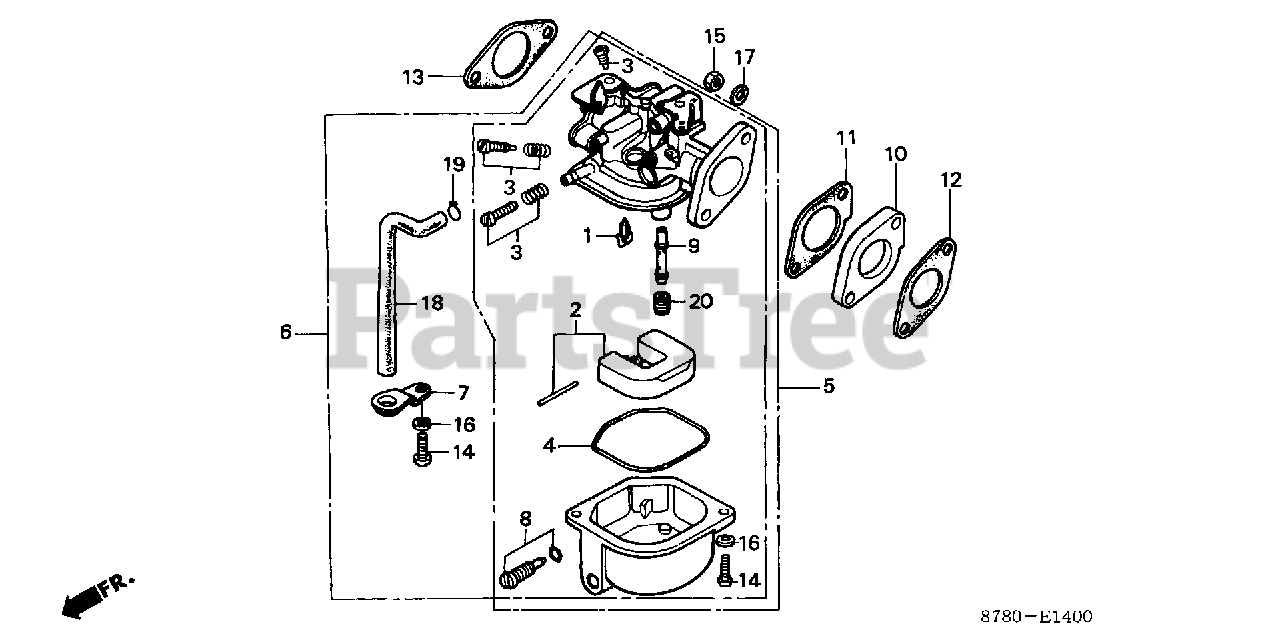

CARBURETOR Parts Diagram

  • Title

1

Honda 16011-721-004

VALVE SET, FLOAT (NOT AVAILABLE)

$

$

Not available

2

Honda 16013-721-004

FLOAT SET (CARBURETOR NO.)

Note: Use up to Engine SN BB01A A.

$

$

Currently unavailable

2

Honda 16013-721-014

FLOAT SET (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use from Engine SN BB04A B.

$

$

Not available

3

Honda 16016-721-004

SCREW SET (CARBURETOR NO.)

Note: Use up to Engine SN BB04A B.

$

$

Not available

3

Honda 16016-721-305

SCREW SET (CARBURETOR NO.)

Note: Use from Engine SN BB04A C.

$

$

Not available

4

Honda 16075-878-004

O-RING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16100-878-004

CARBURETOR ASSY. (BB01A A)

Note: Use up to Engine SN 1050516.

$

$

Currently unavailable

6

Honda 16100-878-425

CARBURETOR ASSY. (BB04A C) (N/A: USE COMPONENT PARTS)

Note: Use from Engine SN 1050517.

$

$

Currently unavailable

7

Honda 16119-878-700

PLATE, STAY (CARBURETOR NO.)

Note: Use from Engine SN BB04A C.

$

$

Not available

8

Honda 16162-878-004

SCREW, DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16166-878-004

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16211-878-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16221-878-000

GASKET A, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16222-878-000

GASKET B, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 17481-878-000

GASKET, AIR CLEANER ELBOW (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 93500-04012-0A

SCREW, PAN (4X12)

$0.99

$

Usually ships in 3-6 days

0

15

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

16

Honda 94111-04000

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X120) (CARBURETOR NO.)

Note: Use from Engine SN BB04A B.

$29.99

$

Usually ships in 3-6 days

0

19

Honda 95002-02070

CLIP, TUBE (B7) (CARBURETOR NO.)

Note: Use from Engine SN BB04A B.

$2.49

$

In Stock, Qty 6

0

20

Honda 99105-663-0700

JET, AIR (#70) (NOT AVAILABLE)

$

$

Currently unavailable
