G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) CRANKSHAFT + PISTON (1) Parts Diagram

Engine, Made in Japan

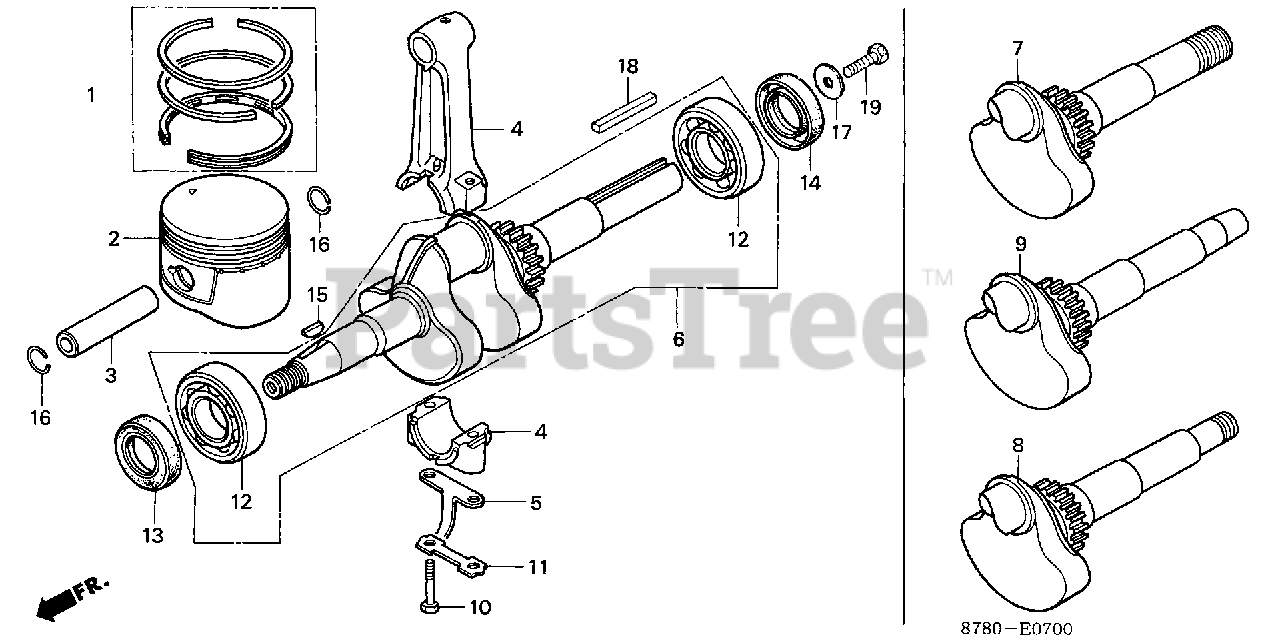

CRANKSHAFT + PISTON (1) Parts Diagram

  • Title

1

Honda 13010-878-000

RING SET, PISTON (STD)

$32.99

$

Usually ships in 3-6 days

0

1

Honda 13010-887-000

RING SET, PISTON (STD)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-878-000

RING SET, PISTON (0.25)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

1

Honda 13012-878-000

RING SET, PISTON (0.50)

Note: (Optional).

$

$

Currently unavailable

1

Honda 13013-887-000

RING SET, PISTON (0.75)

Note: (Optional).

$

$

Not available

2

Honda 13101-878-000

PISTON (STD)

$

$

Not available

2

Honda 13102-878-000

PISTON (0.25) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

2

Honda 13103-878-000

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-878-000

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-300-000

PIN, PISTON

$

$

Not available

4

Honda 13210-878-000

ROD, CONNECTING

$

$

Not available

4

Honda 13210-878-305

ROD, CONNECTING (UNDER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 13281-878-000

DIPPER

$

$

Not available

6

Honda 13310-878-660

CRANKSHAFT

$

$

Not available

10

Honda 90001-878-000

BOLT, HEX. (6X37)

$

$

Not available

11

Honda 90431-878-000

WASHER, TONGUED

$

$

Not available

12

Honda 91001-878-003

BEARING, RADIAL BALL (62/22)

$34.99

$

In Stock, only 1 left!

0

13

Honda 91202-878-003

OIL SEAL (22X35X6)
(Superseded to 91202-ZE6-013)

$9.49

$

Usually ships in 3-6 days

0

14

Honda 91203-ZE0-003

SEE PART DETAILS - SUP; OIL SEAL (22X41X6)
(Superseded to 91203-ZE0-013)

$9.99

$

In Stock, only 1 left!

0

14

Honda 91203-ZE0-013

SEE PART DETAILS - PRI; OIL SEAL (22X41X6)

$9.99

$

In Stock, only 1 left!

0

15

Honda 94401-25140

KEY, WOODRUFF (25X14)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
