G400 K1 QJ0 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) STARTER MOTOR (2) Parts Diagram

Engine, Made in Japan

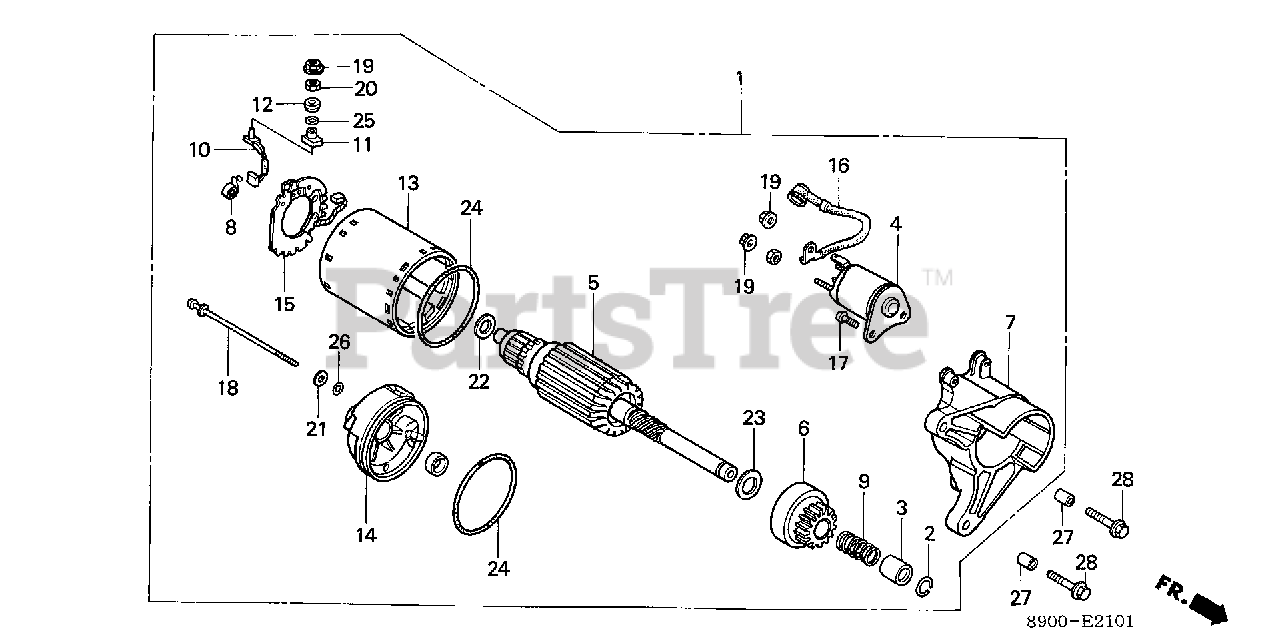

STARTER MOTOR (2) Parts Diagram

  • Title

1

Honda 31200-ZA1-003

STARTER MOTOR ASSY.

Note: (Optional). Use from Engine SN 1294568.

$837.99

$

Usually ships in 3-6 days

0

2

Honda 31201-ZA1-003

RING, SNAP

Note: (Optional). Use from Engine SN 1294568.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH STOP

Note: (Optional). Use from Engine SN 1294568.

$21.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY.

Note: (Optional). Use from Engine SN 1294568.

$160.99

$

In Stock, only 2 left!

0

4

Honda 31204-ZA1-003

SEE PART DETAILS - SUP; CONTACTOR ASSY.
(Superseded to 31204-ZA0-003)

Note: (Optional). Use from Engine SN 1294568 to 1401992.

$160.99

$

In Stock, only 2 left!

0

5

Honda 31206-ZA1-003

ARMATURE

Note: (Optional). Use from Engine SN 1294568.

$237.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZA1-003

CLUTCH ASSY., OVERRUNNING

Note: (Optional). Use from Engine SN 1294568.

$205.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZA1-003

HOUSING, DRIVE SIDE

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Not available

7

Honda 31208-ZA1-013

HOUSING, DRIVE SIDE

Note: (Optional). Use from Engine SN 1388993.

$139.99

$

Usually ships in 3-6 days

0

8

Honda 31212-ZA0-700

SPRING, BRUSH

Note: (Optional). Use from Engine SN 1401993.

$11.99

$

In Stock, only 1 left!

0

9

Honda 31212-ZA1-003

SPRING

Note: (Optional). Use from Engine SN 1294568.

$6.99

$

Usually ships in 3-6 days

0

10

Honda 31215-ZA1-003

BRUSH

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Not available

10

Honda 31215-ZA1-013

BRUSH

Note: (Optional). Use from Engine SN 1388993.

$14.99

$

In Stock, only 2 left!

0

11

Honda 31216-ZA1-003

BUSH, INSULATION

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Currently unavailable

11

Honda 31216-ZA1-013

BUSH, INSULATION

Note: (Optional). Use from Engine SN 1388993.

$9.49

$

Usually ships in 3-6 days

0

12

Honda 31217-ZA1-003

BUSH, INSULATION (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Not available

12

Honda 31217-ZA1-013

BUSH, INSULATION

Note: (Optional). Use from Engine SN 1388993.

$14.99

$

Usually ships in 3-6 days

0

13

Honda 31218-ZA1-003

YOKE (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Currently unavailable

13

Honda 31218-ZA1-013

YOKE

Note: (Optional). Use from Engine SN 1388993.

$173.99

$

Usually ships in 3-6 days

0

14

Honda 31219-ZA1-003

FRAME, STARTER END

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Not available

14

Honda 31219-ZA1-013

FRAME, STARTER END

Note: (Optional). Use from Engine SN 1388993.

$72.99

$

Usually ships in 3-6 days

0

15

Honda 31231-ZA1-003

SEE PART DETAILS - PRI; PLATE, BRUSH HOLDER

Note: (Optional). Use from Engine SN 1294568.

$36.99

$

Usually ships in 3-6 days

0

16

Honda 31232-ZA1-003

WIRE, WATER COVER (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1294568 to 1401992.

$

$

Currently unavailable

16

Honda 31232-ZA1-013

WIRE, WATER COVER

Note: (Optional). Use from Engine SN 1401993.

$79.99

$

Usually ships in 3-6 days

0

17

Honda 90101-ZA1-003

SEE PART DETAILS - SUP; BOLT

Note: (Optional). Use from Engine SN 1294568.

$

$

Not available

17

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14)

Note: (Optional). Use from Engine SN 1294568.

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90102-ZA1-003

BOLT, THROUGH (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1294568 to 1516911.

$

$

Not available

18

Honda 90102-ZA1-013

BOLT, THROUGH

Note: (Optional). Use from Engine SN 1516912.

$13.99

$

Usually ships in 3-6 days

0

19

Honda 90201-ZA1-003

NUT

Note: (Optional). Use from Engine SN 1294568.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90202-ZA1-003

NUT

Note: (Optional). Use from Engine SN 1294568.

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90401-ZA1-003

WASHER, STEEL PLATE (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1294568 to 1516911.

$

$

Currently unavailable

22

Honda 90402-ZA1-003

SEE PART DETAILS - SUP; WASHER

Note: (Optional). Use from Engine SN 1294568.

$

$

Currently unavailable

23

Honda 90403-ZA1-003

WASHER

Note: (Optional). Use from Engine SN 1294568.

$3.99

$

Usually ships in 3-6 days

0

24

Honda 31212-HA0-682

O-RING

Note: (Optional). Use from Engine SN 1294568 to 1516911.

$4.99

$

Usually ships in 3-6 days

0

24

Honda 31212-HA0-682

O-RING

Note: (Optional). Use from Engine SN 1516912.

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91302-ZA1-003

O-RING

Note: (Optional). Use from Engine SN 1294568 to 1388992.

$

$

Not available

25

Honda 91302-ZA1-013

O-RING

Note: (Optional). Use from Engine SN 1388993.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 91303-ZA1-003

O-RING

Note: Use from Engine SN 1294568 to 1516911.

$3.99

$

Usually ships in 3-6 days

0

27

Honda 94301-10160

PIN, DOWEL (10X16)

Note: (Optional). Use from Engine SN 1294568.

$3.49

$

In Stock, only 3 left!

0

28

Honda 95701-08035-08

BOLT, FLANGE (8X35)

Note: (Optional). Use from Engine SN 1294568.

$2.49

$

Usually ships in 3-6 days

0
