G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

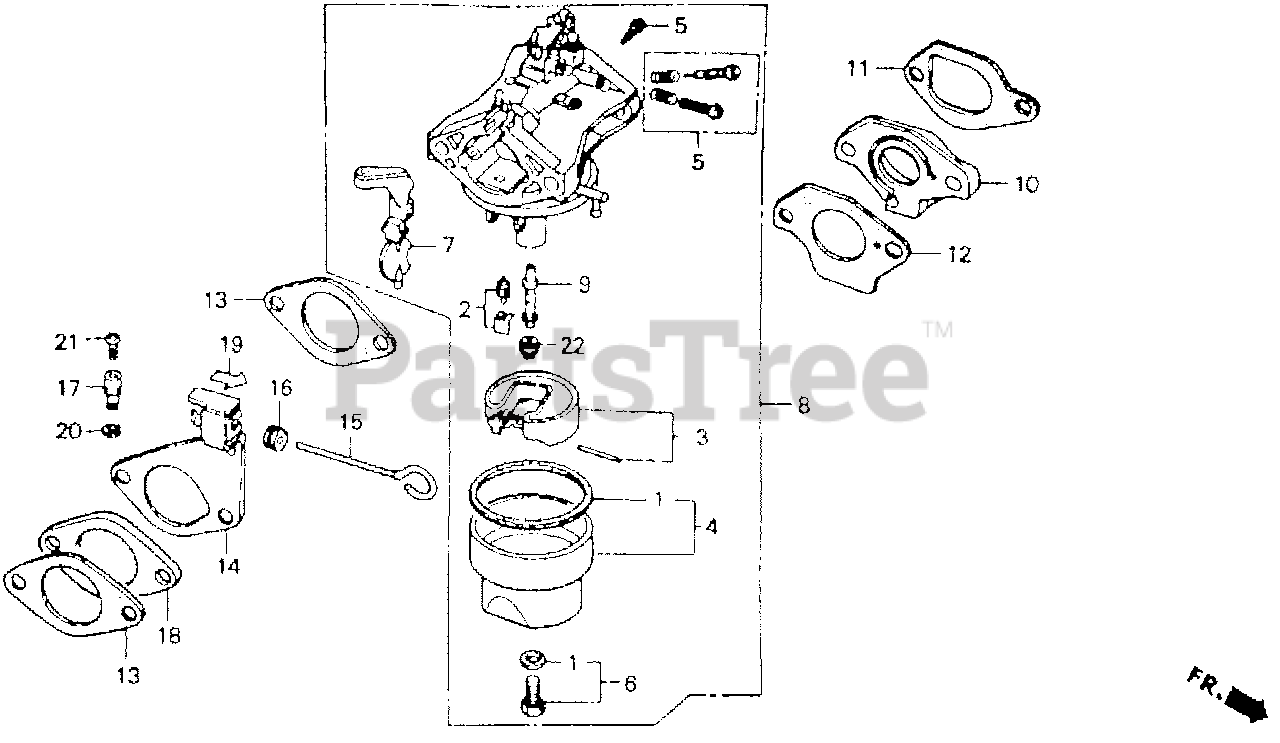

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

Note: Use up to Engine SN BB35D D.

$12.99

$

In Stock, Qty 20+

0

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

Note: (Optional). Use from Engine SN BB35D E.

$12.99

$

In Stock, Qty 20+

0

2

Honda 16011-382-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT (Honda Code 0714436).
(Superseded to 16011-KCK-910)

$40.99

$

In Stock, Qty 5

0

3

Honda 16013-890-015

SEE PART DETAILS - PRI; FLOAT SET (Honda Code 1303072).

Note: Use up to Engine SN BB35D A.

$

$

Not available

3

Honda 16013-890-015

SEE PART DETAILS - PRI; FLOAT SET (Honda Code 1303072).

Note: Use from Engine SN BB35D B.

$

$

Not available

4

Honda 16015-891-003

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT (Honda Code 3476744).

Note: (Optional). Use from Engine SN BB35D E.

$

$

Currently unavailable

4

Honda 16015-891-003

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT (Honda Code 3476744).

Note: Use up to Engine SN BB35D D.

$

$

Currently unavailable

5

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A (Honda Code 1007442).

Note: Use up to Engine SN BB35D D.

$

$

Currently unavailable

5

Honda 16016-ZA1-701

SCREW SET A (Honda Code 3476769).

Note: (Optional). Use from Engine SN BB35D E.

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB35D D.

$12.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB35D C.

$12.99

$

In Stock, only 3 left!

0

6

Honda 16028-883-005

SEE PART DETAILS - SUP; SCREW SET B (Honda Code 0636274).

Note: Use up to Engine SN BB35D C.

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16044-890-005

CHOKE SET (Honda Code 0760363).

$

$

Not available

8

Honda 16100-890-075

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3045960).

Note: Use up to Engine SN 1367859.

$

$

Not available

8

Honda 16100-890-075

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3045960).

Note: Use from Engine SN 1367860 to 1487041.

$

$

Not available

8

Honda 16100-890-075

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3045960).

Note: (Optional). Use from Engine SN 1487042.

$

$

Not available

8

Honda 16100-890-664

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB35D E) (Honda Code 3040508).

Note: Use up to Engine SN 1367859.

$

$

Currently unavailable

8

Honda 16100-890-664

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB35D E) (Honda Code 3040508).

Note: Use from Engine SN 1367860 to 1487041.

$

$

Currently unavailable

8

Honda 16100-890-664

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB35D E) (Honda Code 3040508).

Note: (Optional). Use from Engine SN 1487042.

$

$

Currently unavailable

9

Honda 16166-890-731

NOZZLE, MAIN (Honda Code 0942052).

$

$

Not available

10

Honda 16211-890-000

INSULATOR, CARBURETOR (Honda Code 0755157).

$

$

Not available

11

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR (Honda Code 4420493).
(Superseded to 16212-890-800)

$

$

Not available

11

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4421954).

$

$

Not available

12

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4425021).
(Superseded to 16221-890-800)

$2.49

$

In Stock, Qty 10

0

12

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4428330).

$2.49

$

In Stock, Qty 10

0

13

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER (Honda Code 4434916).
(Superseded to 16269-890-800)

$1.99

$

In Stock, Qty 7

0

13

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 4435285).

$1.99

$

In Stock, Qty 7

0

14

Honda 16598-889-731

STAY, CHOKE CONTROL (Honda Code 0760439).

$

$

Not available

15

Honda 16611-889-000

ROD, CHOKE CONTROL (Honda Code 0760447).

$

$

Not available

16

Honda 16613-890-000

GROMMET, CHOKE ROD (Honda Code 0755413).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 16617-890-010

SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462).

$7.99

$

In Stock, only 1 left!

0

18

Honda 17229-890-690

SPACER, AIR CLEANER (Honda Code 1010347).

$

$

Currently unavailable

19

Honda 87528-883-661

SEE PART DETAILS - PRI; MARK, CHOKE (Honda Code 0761163).

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90605-230-000

CIRCLIP (5MM) (Honda Code 0138768).

$3.99

$

In Stock, only 4 left!

0

21

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

22

Honda 99101-124-0880

JET, MAIN (#88) (Honda Code 0648170).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0900

JET, MAIN (#90) (Honda Code 0761379).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0920

JET, MAIN (#92) (Honda Code 0761387).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0950

JET, MAIN (#95) (Honda Code 0761395).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0980

JET, MAIN (#98) (Honda Code 0761403).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-1000

JET, MAIN (#100) (Honda Code 0810218).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-1020

JET, MAIN (#102) (Honda Code 0942060).

$10.99

$

Usually ships in 3-6 days

0
