G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CONTROL Parts Diagram

Engine, Made in Japan

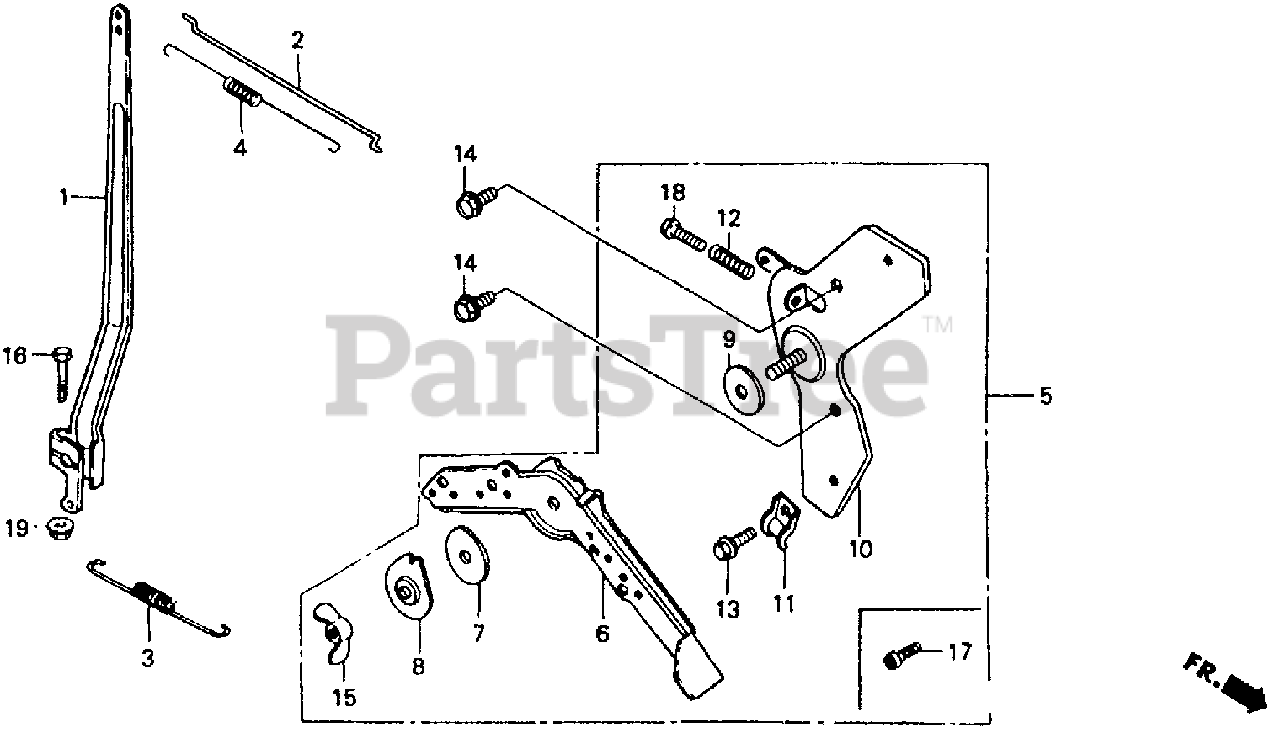

CONTROL Parts Diagram

  • Title

1

Honda 16551-890-010

SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 0803759).

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16555-889-010

SEE PART DETAILS - PRI; ROD, GOVERNOR (Honda Code 1008309).

$4.49

$

In Stock, only 1 left!

0

3

Honda 16561-890-020

SPRING, GOVERNOR (Honda Code 1010289).

$4.99

$

Usually ships in 3-6 days

0

4

Honda 16562-889-010

SPRING, THROTTLE RETURN (Honda Code 0813360).

$

$

Not available

5

Honda 16570-883-W10

SEE PART DETAILS - PRI; CONTROL ASSY. (Honda Code 6880348).

$47.99

$

Usually ships in 3-6 days

0

6

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL (Honda Code 0636373).

$23.99

$

Usually ships in 3-6 days

0

7

Honda 16574-883-300

SPRING, LEVER (Honda Code 0636381).

$3.99

$

In Stock, only 1 left!

0

8

Honda 16575-883-300

WASHER, CONTROL LEVER (Honda Code 0636399).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16576-883-300

SPACER, CONTROL LEVER (Honda Code 0636407).

$5.49

$

Usually ships in 3-6 days

0

10

Honda 16581-883-320

SEE PART DETAILS - PRI; BASE, CONTROL LEVER (Honda Code 0724484).

$

$

Not available

11

Honda 16582-883-300

HOLDER, CONTROL CABLE (Honda Code 0636423).

$3.99

$

In Stock, only 1 left!

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING (Honda Code 0636431).

$4.99

$

In Stock, only 1 left!

0

13

Honda 90002-892-000

BOLT, FLANGE (5X10) (Honda Code 0928051).

Note: Use from Engine SN 1200801.

$1.99

$

In Stock, Qty 5

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90352-883-003

WINGNUT (6MM) (Honda Code 0724492).

$

$

Not available

16

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

17

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

Note: Use up to Engine SN 1200800.

$1.49

$

In Stock, Qty 9

0

18

Honda 93500-05022-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X22) (Honda Code 0171801).

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, Qty 12

0
