G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CYLINDER HEAD + CYLINDER BARREL Parts Diagram

Engine, Made in Japan

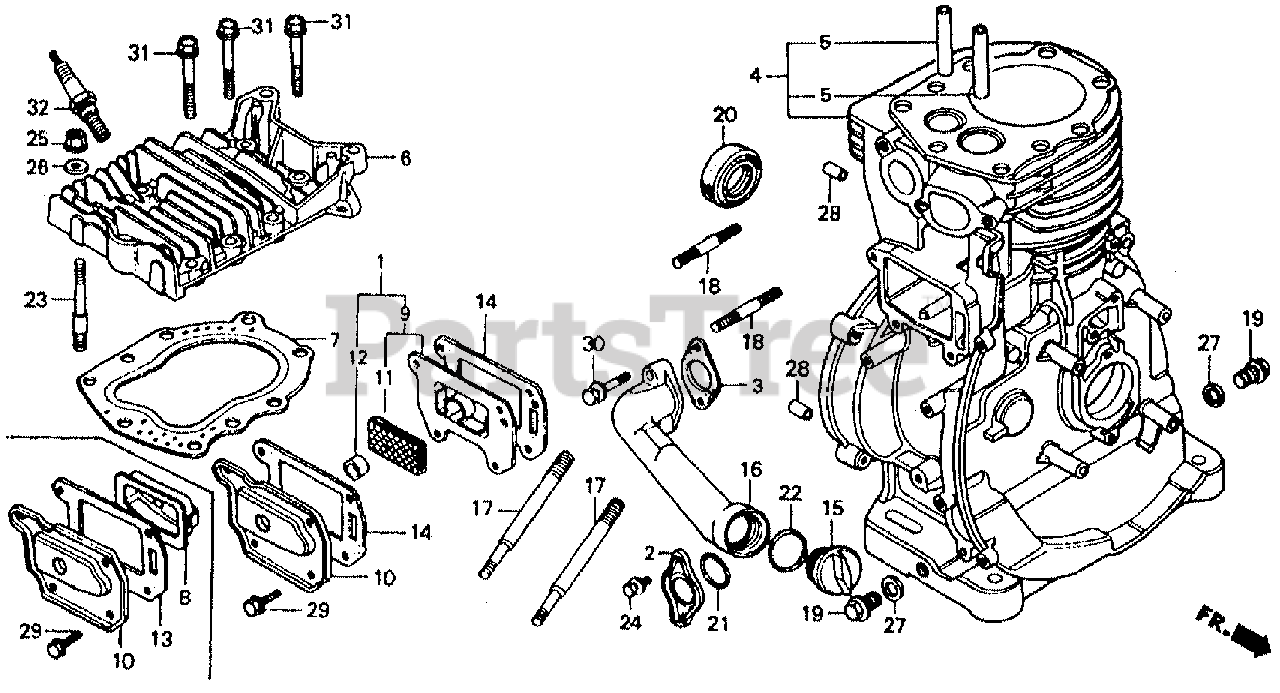

CYLINDER HEAD + CYLINDER BARREL Parts Diagram

  • Title

1

Honda 06123-890-305

CASE KIT, BREATHER (NOT AVAILABLE) (Honda Code 1070473).

Note: (Optional). Use up to Engine SN 1213314.

$13.99

$

Usually ships in 3-6 days

0

2

Honda 11210-822-010

COVER, OIL PAN (Honda Code 0397539).

$3.99

$

Usually ships in 3-6 days

0

3

Honda 11211-822-306

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 4574539).

Note: (Optional).

$

$

Not available

4

Honda 12100-890-335

SEE PART DETAILS - PRI; CYLINDER (CRANKSHAFT P.T.O.) (NOT AVAILABLE) (Honda Code 1049493).

Note: Use up to Engine SN 1350779.

$

$

Currently unavailable

4

Honda 121A0-890-040

CYLINDER (CRANKSHAFT P.T.O.) (Honda Code 1961846).

Note: Use from Engine SN 1350780.

$

$

Not available

5

Honda 12134-890-305

GUIDE, VALVE (Honda Code 0760082).

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

6

Honda 12221-890-305

CYLINDER HEAD (NOT AVAILABLE) (Honda Code 0760108).

$

$

Not available

7

Honda 12281-890-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4212957).

$33.99

$

Usually ships in 3-6 days

0

7

Honda 12281-891-610

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 2427466).

$

$

Not available

8

Honda 12360-889-000

CASE, BREATHER (Honda Code 0754556).

Note: Use up to Engine SN 1213314.

$

$

Currently unavailable

8

Honda 12360-889-010

CASE, BREATHER (Honda Code 1083476).

Note: Use up to Engine SN 1213314.

$

$

Not available

9

Honda 12360-890-000

CASE, BREATHER (Honda Code 1070499).

Note: Use from Engine SN 1213315.

$15.99

$

Usually ships in 3-6 days

0

10

Honda 12361-890-000

COVER, TAPPET (Honda Code 0754572).

$9.49

$

Usually ships in 3-6 days

0

11

Honda 12367-890-003

FILTER, BREATHER (Honda Code 1202183).

Note: Use from Engine SN 1213315.

$

$

Not available

12

Honda 12369-883-000

SEAL, BREATHER (Honda Code 1037910).

Note: Use from Engine SN 1213315.

$3.99

$

Usually ships in 3-6 days

0

13

Honda 12375-ZA1-000

SEE PART DETAILS - PRI; GASKET, TAPPET COVER (Honda Code 1237734).

Note: Use up to Engine SN 1213314.

$2.99

$

Usually ships in 3-6 days

0

14

Honda 12375-ZA1-000

SEE PART DETAILS - PRI; GASKET, TAPPET COVER (Honda Code 1237734).

Note: Use from Engine SN 1278931.

$2.99

$

Usually ships in 3-6 days

0

14

Honda 12375-ZA1-000

SEE PART DETAILS - PRI; GASKET, TAPPET COVER (Honda Code 1237734).

Note: Use from Engine SN 1213315 to 1278930.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 15632-890-010

SEE PART DETAILS - PRI; PIPE, OIL (Honda Code 0964916).

Note: (Optional).

$

$

Not available

17

Honda 90042-890-680

BOLT, STUD (8X104) (Honda Code 1009067).

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90047-883-000

BOLT, STUD (8X35) (Honda Code 0636894).

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (Honda Code 0636902).

$

$

Not available

19

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 9

0

20

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$10.99

$

In Stock, Qty 7

0

21

Honda 91301-028-000

O-RING (27X2.0) (Honda Code 0013284).

$3.99

$

Usually ships in 3-6 days

0

22

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

23

Honda 90045-890-000

BOLT, STUD (10X70) (Honda Code 1500545).

Note: Use from Engine SN 1297698.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 92700-10060-0B

BOLT, STUD (10X60) (Honda Code 1216175).

Note: Use from Engine SN 1269742 to 1297697.

$

$

Currently unavailable

23

Honda 92900-10040-0B

BOLT, STUD (10X40) (Honda Code 2073112).

Note: Use from Engine SN 1269742 to 1297697.

$10.99

$

Usually ships in 3-6 days

0

24

Honda 93412-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12) (Honda Code 3811023).

$

$

Currently unavailable

24

Honda 93482-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12) (Honda Code 0995845).

$

$

Currently unavailable

25

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

Note: Use from Engine SN 1269742 to 1297697.

$1.99

$

In Stock, Qty 5

0

25

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

Note: Use from Engine SN 1297698.

$3.99

$

In Stock, Qty 20+

0

26

Honda 90401-437-000

WASHER, PLAIN (10MM) (Honda Code 0768051).

Note: Use from Engine SN 1297698.

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94102-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM) (Honda Code 0172551).

Note: Use from Engine SN 1269742 to 1297697.

$0.99

$

In Stock, only 2 left!

0

27

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0

29

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

29

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 2 left!

0

30

Honda 95700-06025-08

BOLT, FLANGE (6X25) (Honda Code 0258731).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06025-08

BOLT, FLANGE (6X25) (Honda Code 2259711).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95730-10055-08

BOLT, FLANGE (10X55) (Honda Code 0761320).

Note: Use up to Engine SN 1269741.

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95730-10055-08

BOLT, FLANGE (10X55) (Honda Code 0761320).

Note: Use from Engine SN 1269742.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54710

SPARK PLUG (B-4H) (Honda Code 0316927).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54716

SEE PART DETAILS - PRI; SPARK PLUG (BR-4HS) (NGK) (Honda Code 0649830).

Note: (Optional).

$3.49

$

In Stock, Qty 6

0

32

Honda 98076-54911

SPARK PLUG (BP-4HS-10) (NGK) (Honda Code 0761338).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK) (Honda Code 0761346).
(Superseded to 98076-54917)

Note: (Optional).

$3.49

$

In Stock, only 2 left!

0

32

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK) (Honda Code 4161691).

Note: (Optional).

$3.49

$

In Stock, only 2 left!

0

32

Honda 98076-54919

SPARK PLUG (BP4HS-10) (NGK) (Honda Code 4161659).

$3.49

$

In Stock, only 1 left!

0

32

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO) (Honda Code 1325307).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54757

SEE PART DETAILS - PRI; SPARK PLUG (W14FR-U) (DENSO) (Honda Code 1106988).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54921

SPARK PLUG (W14FP-UL10) (DENSO) (Honda Code 1325315).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54954

SEE PART DETAILS - PRI; SPARK PLUG (W14FPR-UL10) (DENSO) (Honda Code 1107002).

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

32

Honda 98076-56724

SPARK PLUG (W20FS-U) (DENSO) (Honda Code 1325323).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-56921

SPARK PLUG (W20FP-U10) (DENSO) (Honda Code 1325349).

Note: (Optional).

$

$

Currently unavailable
