G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) EXCITER UNIT + C.D.I. UNIT Parts Diagram

Engine, Made in Japan

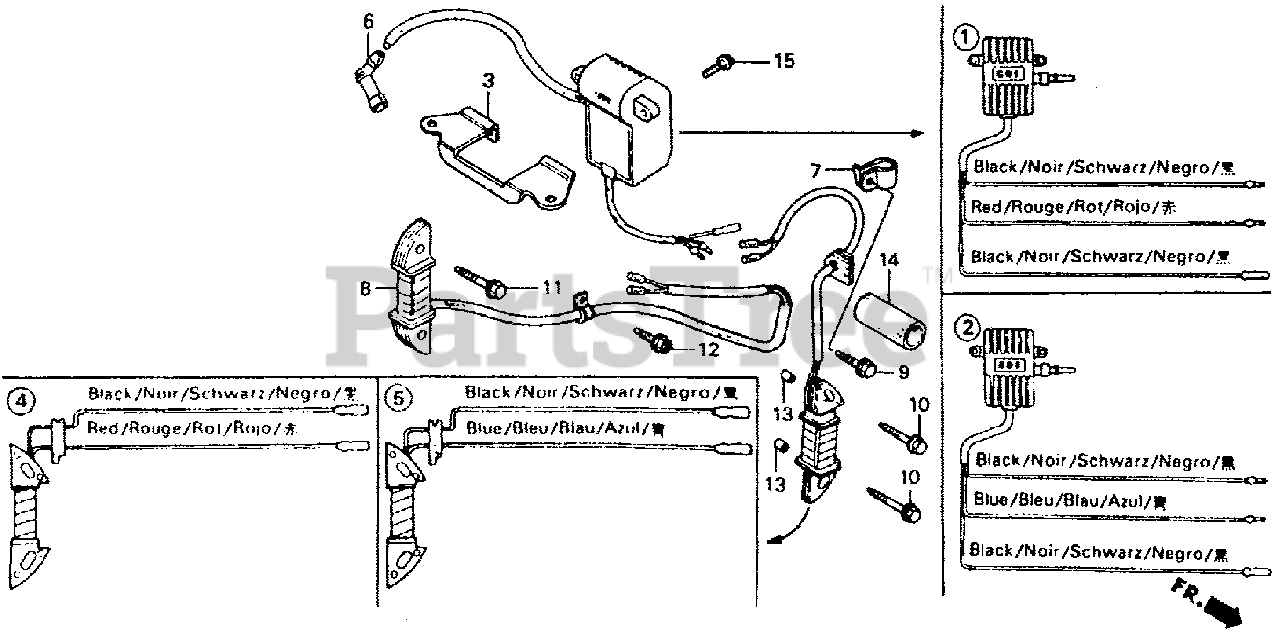

EXCITER UNIT + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 30580-890-732

SEE PART DETAILS - PRI; MODULE, IGNITION CONTROL (CDI) (Honda Code 0801878).

$

$

Not available

3

Honda 30586-889-730

STAY, IGNITION CONTROL MODULE (Honda Code 0760843).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 30590-889-732

SEE PART DETAILS - PRI; COIL ASSY., EXCITER (Honda Code 0925214).

$

$

Not available

6

Honda 30700-890-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3719606).

Note: Use up to Engine SN 1508724.

$

$

Not available

6

Honda 30700-890-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3719606).

Note: (Optional). Use from Engine SN 1508725.

$

$

Not available

7

Honda 30702-890-000

CLAMP, IGNITION WIRE (Honda Code 0756007).

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

10

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.49

$

In Stock, only 3 left!

0

13

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0

14

Honda 95003-60006-20

TUBE, VINYL (22X27X60) (NOT AVAILABLE) (Honda Code 0761296).

$

$

Currently unavailable

15

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 2 left!

0
