G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) FLYWHEEL Parts Diagram
Engine, Made in Japan

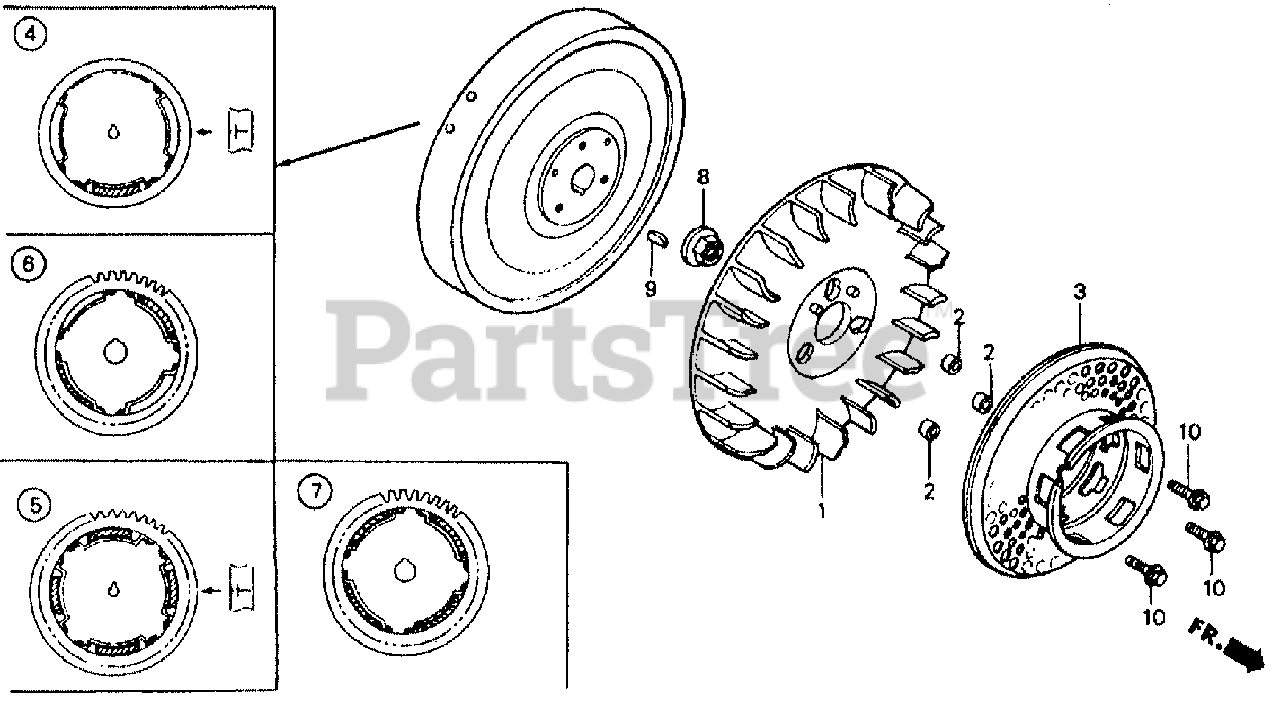

FLYWHEEL Parts Diagram
Honda 19511-890-020
SEE PART DETAILS - PRI; FAN, COOLING (Honda Code 1837293).
$
$
Not available
Honda 19512-883-000
COLLAR, FAN (Honda Code 0636589).
$2.49
$
In Stock, Qty 5
3
28451-890-010
SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 1029024).
$
$
Not available
Honda 31100-890-731
FLYWHEEL (C.D.I.) (Honda Code 0760926).
$
$
Not available
Honda 31100-890-803
SEE PART DETAILS - PRI; FLYWHEEL (BREAKER+STARTER) (Honda Code 3965670).
Note: (Optional).
$
$
Not available
$
$
Currently unavailable
Honda 31100-890-901
SEE PART DETAILS - PRI; FLYWHEEL (STARTER+RECTIFIER) (Honda Code 3916699).
Note: (Optional).
$
$
Not available
Honda 90201-ZE3-790
NUT, SPECIAL (16MM) (Honda Code 2326908).
$10.99
$
Usually ships in 3-6 days
Honda 13331-357-000
KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).
$4.49
$
In Stock, Qty 15
Honda 95701-06016-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).
$1.99
$
In Stock, Qty 5
