G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) MUFFLER Parts Diagram

Engine, Made in Japan

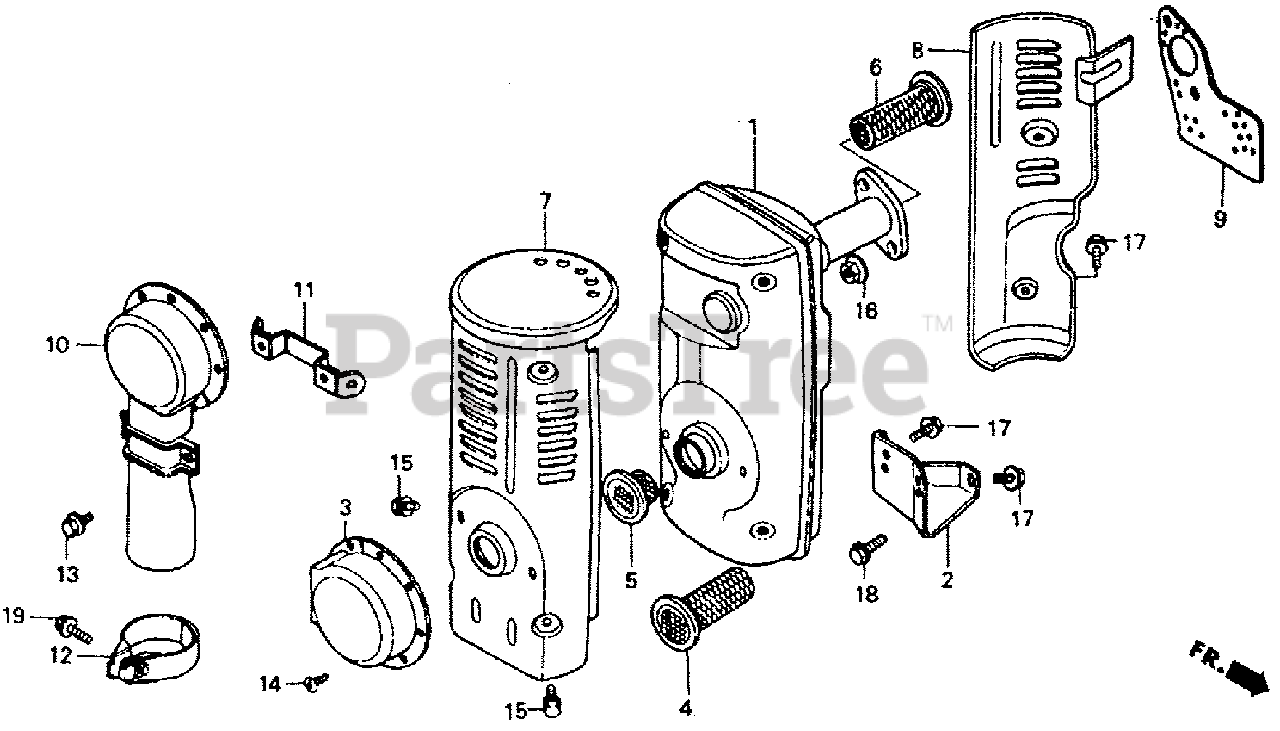

MUFFLER Parts Diagram

  • Title

1

Honda 18310-890-735

SEE PART DETAILS - PRI; MUFFLER (Honda Code 1012525).

$

$

Not available

2

Honda 18320-890-731

SEE PART DETAILS - PRI; STAY, MUFFLER (Honda Code 1008432).

$

$

Not available

3

Honda 18331-889-010

SEE PART DETAILS - PRI; DEFLECTOR, MUFFLER (Honda Code 0943266).

$15.99

$

Usually ships in 3-6 days

0

4

Honda 18335-890-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 0923219).

Note: (Optional).

$

$

Not available

5

Honda 18336-890-000

FLANGE, BAFFLE (Honda Code 1010479).

Note: (Optional).

$

$

Not available

7

Honda 18361-890-730

PROTECTOR A, MUFFLER (Honda Code 0755538).

$

$

Not available

8

Honda 18365-890-730

PROTECTOR B, MUFFLER (Honda Code 0755546).

Note: (Optional).

$

$

Not available

9

Honda 18381-890-306

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4434510).
(Superseded to 18381-890-800)

$

$

Not available

9

Honda 18381-890-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4646170).

$

$

Not available

10

Honda 18390-890-810

PIPE, MUFFLER (Honda Code 1440122).

Note: (Optional). Use from Engine SN 1219281.

$

$

Not available

11

Honda 18392-890-810

HOLDER, TAIL PIPE (Honda Code 1440130).

Note: (Optional). Use from Engine SN 1219281.

$

$

Not available

12

Honda 18393-890-810

BAND, TAIL PIPE (Honda Code 1440148).

Note: (Optional). Use from Engine SN 1219281.

$

$

Not available

13

Honda 90011-896-000

BOLT, FLANGE (6X8) (Honda Code 0928077).

Note: (Optional). Use from Engine SN 1219281.

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90183-671-003

SCREW, TAPPING (4X8) (Honda Code 0752345).
(Superseded to 90002-ZG0-003)

Note: Use up to Engine SN 1436948.

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (Honda Code 1431121).

Note: Use from Engine SN 1436949.

$0.99

$

In Stock, Qty 20+

0

15

Honda 90003-890-000

BOLT-WASHER (6X10) (Honda Code 0943274).

$

$

Currently unavailable

16

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

17

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.49

$

In Stock, Qty 20+

0

18

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 4 left!

0

19

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: (Optional). Use from Engine SN 1219281.

$2.49

$

In Stock, only 4 left!

0
