G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

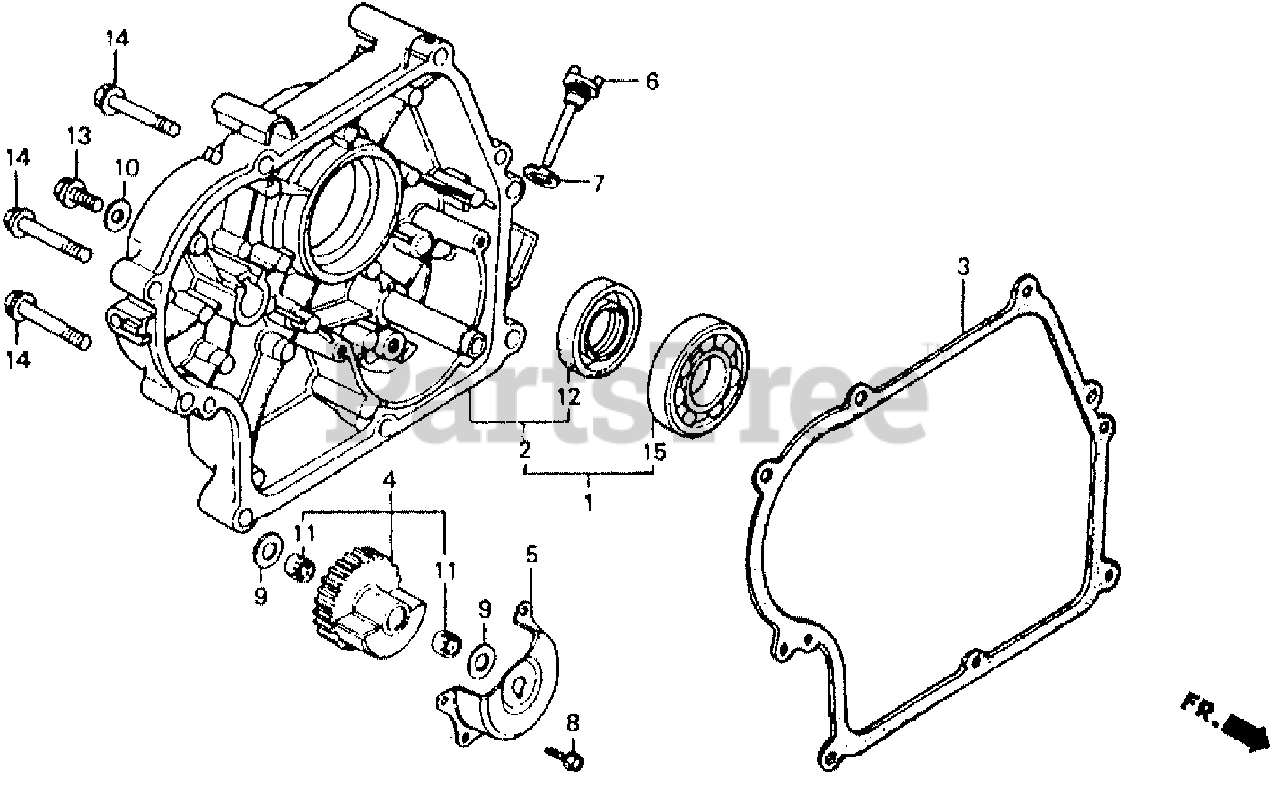

CRANKCASE COVER (1) Parts Diagram

  • Title

1

Honda 11300-890-720

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (V-TYPE) (Honda Code 0759993).

Note: Use up to Engine SN 1085859.

$

$

Currently unavailable

2

Honda 11300-890-721

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE (V-TYPE) (Honda Code 1010156).

Note: Use from Engine SN 1085860.

$

$

Not available

3

Honda 11381-890-850

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 4510061).

$

$

Not available

4

Honda 13350-890-010

SEE PART DETAILS - PRI; WEIGHT, BALANCER (Honda Code 1008044).

$118.99

$

Usually ships in 3-6 days

0

5

Honda 13354-890-000

COVER, BALANCER (Honda Code 0754879).

$

$

Currently unavailable

6

Honda 15620-890-000

CAP, OIL FILLER (Honda Code 0755025).

$

$

Not available

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 1039236.

$1.99

$

In Stock, Qty 20+

0

8

Honda 90061-161-000

BOLT, FLANGE (6X16) (Honda Code 0810069).

Note: Use from Engine SN 1039237.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90451-166-000

WASHER, THRUST (15MM) (Honda Code 0913970).

$

$

Not available

9

Honda 90454-360-000

WASHER, THRUST (15MM) (Honda Code 0341164).

$

$

Currently unavailable

10

Honda 90488-700-000

WASHER A (8MM) (Honda Code 0130534).

$1.49

$

Usually ships in 3-6 days

0

11

Honda 91021-890-000

BEARING, NEEDLE (Honda Code 0756486).

$23.99

$

Usually ships in 3-6 days

0

12

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$10.99

$

In Stock, Qty 7

0

13

Honda 95701-08012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2647428).

Note: Use from Engine SN 1086090.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

Note: Use up to Engine SN 1086089.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95700-08045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 0583633).
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 3 left!

0

14

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$2.99

$

In Stock, only 3 left!

0

15

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

Note: Use up to Engine SN 1085859.

$28.99

$

Usually ships in 3-6 days

0
