G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) MUFFLER (1) Parts Diagram

Engine, Made in Japan

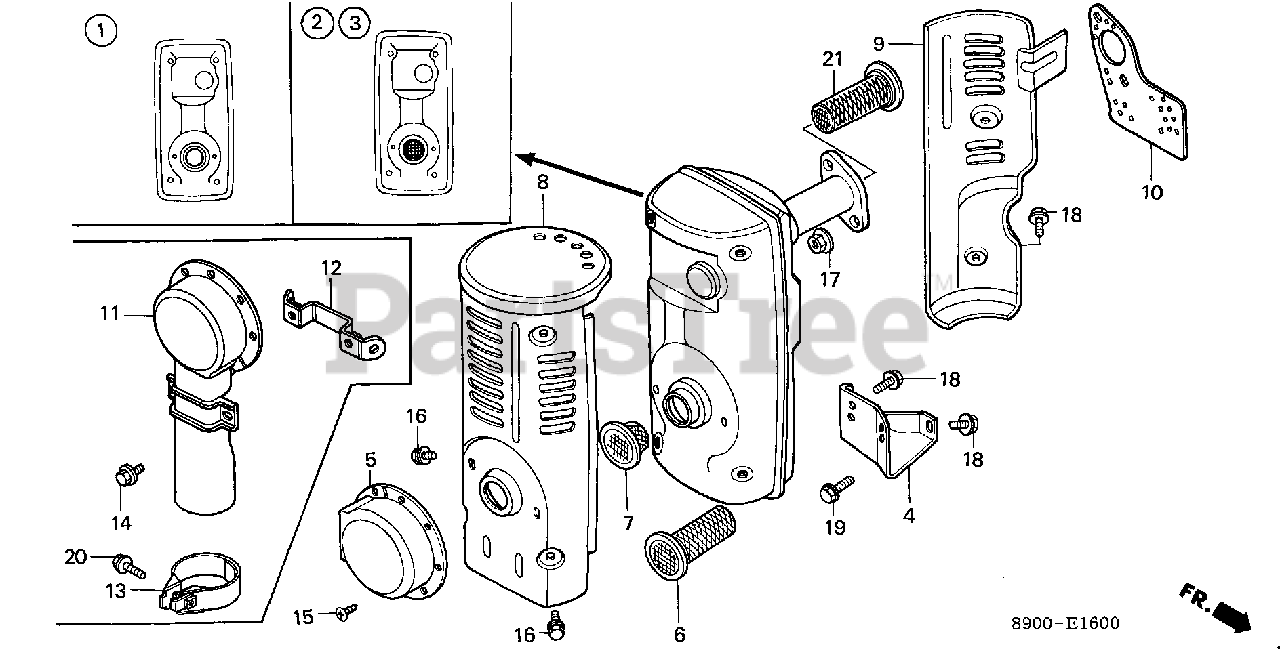

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-890-600

MUFFLER

Note: (Optional). Use up to Engine SN 1017681.

$

$

Currently unavailable

1

Honda 18310-890-602

MUFFLER

Note: Use from Engine SN 1017682 to 1086381.

$

$

Currently unavailable

1

Honda 18310-890-735

SEE PART DETAILS - SUP; MUFFLER

Note: Use from Engine SN 1086382.

$

$

Not available

4

Honda 18320-890-731

STAY, MUFFLER

Note: (Optional). Use up to Engine SN 1086381.

$

$

Not available

4

Honda 18320-890-731

STAY, MUFFLER

Note: Use from Engine SN 1086382.

$

$

Not available

5

Honda 18331-889-010

DEFLECTOR, MUFFLER

Note: (Optional). Use up to Engine SN 1062543.

$15.99

$

Usually ships in 3-6 days

0

5

Honda 18331-889-010

DEFLECTOR, MUFFLER

Note: Use from Engine SN 1062544.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 18335-890-000

ARRESTER, SPARK

Note: (Optional). Use from Engine SN 1071060.

$

$

Not available

7

Honda 18336-890-000

FLANGE, BAFFLE

Note: (Optional). Use from Engine SN 1086918.

$

$

Not available

8

Honda 18361-890-730

PROTECTOR A, MUFFLER (NOT AVAILABLE)

$

$

Not available

9

Honda 18365-890-730

PROTECTOR B, MUFFLER

Note: (Optional).

$

$

Not available

10

Honda 18381-890-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$

$

Not available

15

Honda 90183-671-003

SCREW, TAPPING (4X8)
(Superseded to 90002-ZG0-003)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90003-890-000

BOLT-WASHER (6X10) (NOT AVAILABLE)

Note: Use from Engine SN 1095940.

$

$

Currently unavailable

16

Honda 92101-06008-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

Note: (Optional). Use up to Engine SN 1095939.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

18

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

19

Honda 95701-08014-08

BOLT, FLANGE (8X14)

Note: Use up to Engine SN 1086831.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08016-08

BOLT, FLANGE (8X16)

Note: Use from Engine SN 1086832.

$2.49

$

In Stock, only 4 left!

0

21

Honda 18335-890-000

ARRESTER, SPARK

Note: (Optional). Use up to Engine SN 1071059.

$

$

Not available
