G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) PISTON + CONNECTING ROD Parts Diagram

Engine, Made in Japan

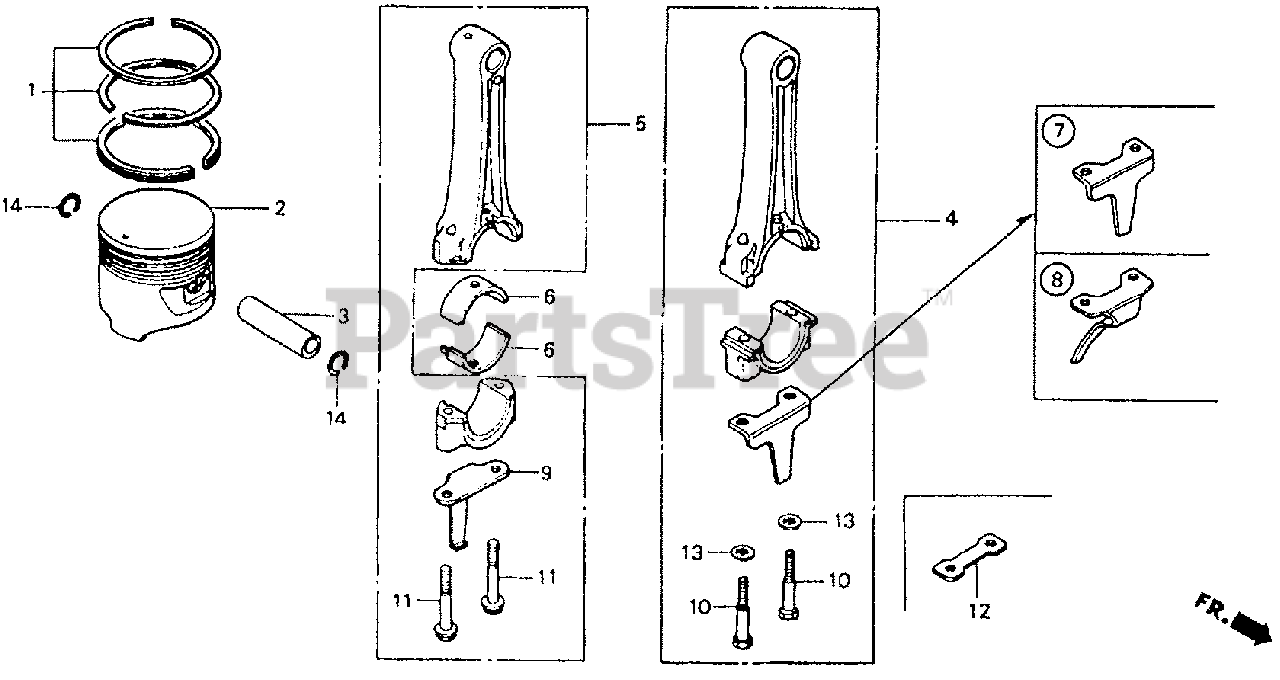

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-YA2-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3091485).

$

$

Not available

1

Honda 13010-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NOT AVAILABLE) (Honda Code 0760132).

$

$

Not available

1

Honda 13011-YA2-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3130978).

Note: (Optional).

$

$

Not available

1

Honda 13011-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 0764225).

Note: (Optional).

$78.99

$

Usually ships in 3-6 days

0

1

Honda 13012-YA2-003

SEE PART DETAILS - PRI; RING, PISTON (OS 0.50) (Honda Code 3109626).

Note: (Optional).

$84.99

$

Usually ships in 3-6 days

0

1

Honda 13012-890-010

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) (Honda Code 0764233).

Note: (Optional).

$84.99

$

Usually ships in 3-6 days

0

1

Honda 13013-890-010

RING SET, PISTON (0.75) (NOT AVAILABLE) (Honda Code 0764241).

Note: (Optional).

$

$

Not available

2

Honda 13101-890-010

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 0760181).

$128.99

$

In Stock, only 1 left!

0

2

Honda 13102-890-010

SEE PART DETAILS - PRI; PISTON (OS 0.25) (Honda Code 0796862).

Note: (Optional).

$107.99

$

Usually ships in 3-6 days

0

2

Honda 13103-890-010

SEE PART DETAILS - PRI; PISTON (OS 0.50) (Honda Code 0760223).

Note: (Optional).

$

$

Not available

2

Honda 13104-890-010

SEE PART DETAILS - PRI; PISTON (0.75) (Honda Code 0760249).

Note: (Optional).

$102.99

$

Usually ships in 3-6 days

0

3

Honda 13111-890-000

PIN, PISTON (Honda Code 0754762).

$10.99

$

Usually ships in 3-6 days

0

4

Honda 13200-890-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0754796).

Note: Use up to Engine SN 1016894.

$

$

Currently unavailable

4

Honda 13200-890-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0808949).

Note: Use from Engine SN 1016895 to 1041378.

$

$

Currently unavailable

4

Honda 13200-890-030

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (NOT AVAILABLE) (Honda Code 0877985).

Note: Use from Engine SN 1041379 to 1050927.

$

$

Not available

4

Honda 13200-890-040

ROD ASSY., CONNECTING (Honda Code 0920082).

Note: Use from Engine SN 1050928 to 1086089.

$

$

Currently unavailable

4

Honda 13200-890-305

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (UNDER SIZE) (Honda Code 0754804).

Note: (Optional). Use up to Engine SN 1016894.

$

$

Currently unavailable

4

Honda 13200-890-315

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (UNDER SIZE) (Honda Code 0801837).

Note: (Optional). Use from Engine SN 1016895 to 1041378.

$

$

Currently unavailable

4

Honda 13200-890-335

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (UNDER SIZE) (NOT AVAILABLE) (Honda Code 0918441).

Note: (Optional). Use from Engine SN 1041379 to 1050927.

$116.99

$

Usually ships in 3-6 days

0

4

Honda 13200-890-345

ROD ASSY., CONNECTING (UNDER SIZE) (NOT AVAILABLE) (Honda Code 0920090).

Note: (Optional). Use from Engine SN 1050928 to 1086089.

$

$

Currently unavailable

5

Honda 13200-890-070

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 1899871).

Note: Use from Engine SN 1086090.

$

$

Not available

6

Honda 13225-890-003

BEARING A, CONNECTING ROD (BLACK) (Honda Code 0999425).

Note: (Optional). Use from Engine SN 1086090.

$

$

Not available

6

Honda 13226-890-003

BEARING B, CONNECTING ROD (BROWN) (Honda Code 0999433).

Note: (Optional). Use from Engine SN 1086090.

$17.99

$

In Stock, only 1 left!

0

6

Honda 13227-890-003

BEARING C, CONNECTING ROD (GREEN) (Honda Code 0999441).

Note: (Optional). Use from Engine SN 1086090.

$16.99

$

In Stock, only 2 left!

0

6

Honda 13228-890-003

BEARING D, CONNECTING ROD (YELLOW) (Honda Code 0999458).

Note: (Optional). Use from Engine SN 1086090.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 13229-890-003

BEARING E, CONNECTING ROD (PINK) (Honda Code 0997783).

Note: (Optional). Use from Engine SN 1086090.

$

$

Not available

7

Honda 13281-890-000

SEE PART DETAILS - SUP; DIPPER, CONNECTING ROD (Honda Code 0754820).

Note: Use up to Engine SN 1041378.

$

$

Currently unavailable

7

Honda 13281-890-020

SEE PART DETAILS - PRI; DIPPER, CONNECTING ROD (NOT AVAILABLE) (Honda Code 0918458).

Note: Use from Engine SN 1041379 to 1050927.

$

$

Currently unavailable

8

Honda 13281-890-030

DIPPER, CONNECTING ROD (NOT AVAILABLE) (Honda Code 0920108).

Note: Use from Engine SN 1050928 to 1086089.

$

$

Currently unavailable

9

Honda 13281-890-040

DIPPER, CONNECTING ROD (Honda Code 1008010).

Note: Use from Engine SN 1086090.

$

$

Not available

10

Honda 90001-890-000

BOLT, CONNECTING ROD (8MM) (NOT AVAILABLE) (Honda Code 0756437).

Note: Use up to Engine SN 1016894.

$

$

Currently unavailable

10

Honda 90001-890-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (8MM) (NOT AVAILABLE) (Honda Code 0823419).

Note: Use from Engine SN 1016895 to 1086089.

$

$

Currently unavailable

11

Honda 90001-890-040

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (8MM) (Honda Code 1001106).

Note: Use from Engine SN 1086090.

$

$

Not available

12

Honda 90501-947-000

SEE PART DETAILS - PRI; WASHER, CONNECTING ROD (Honda Code 0422964).

Note: Use up to Engine SN 1016894.

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90501-947-000

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0422964).

Note: Use from Engine SN 1016895 to 1086089.

$0.99

$

Usually ships in 3-6 days

0

14

Honda 94601-19000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (19MM) (Honda Code 0294264).

$0.99

$

Usually ships in 3-6 days

0
