G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) RECOIL STARTER Parts Diagram

Engine, Made in Japan

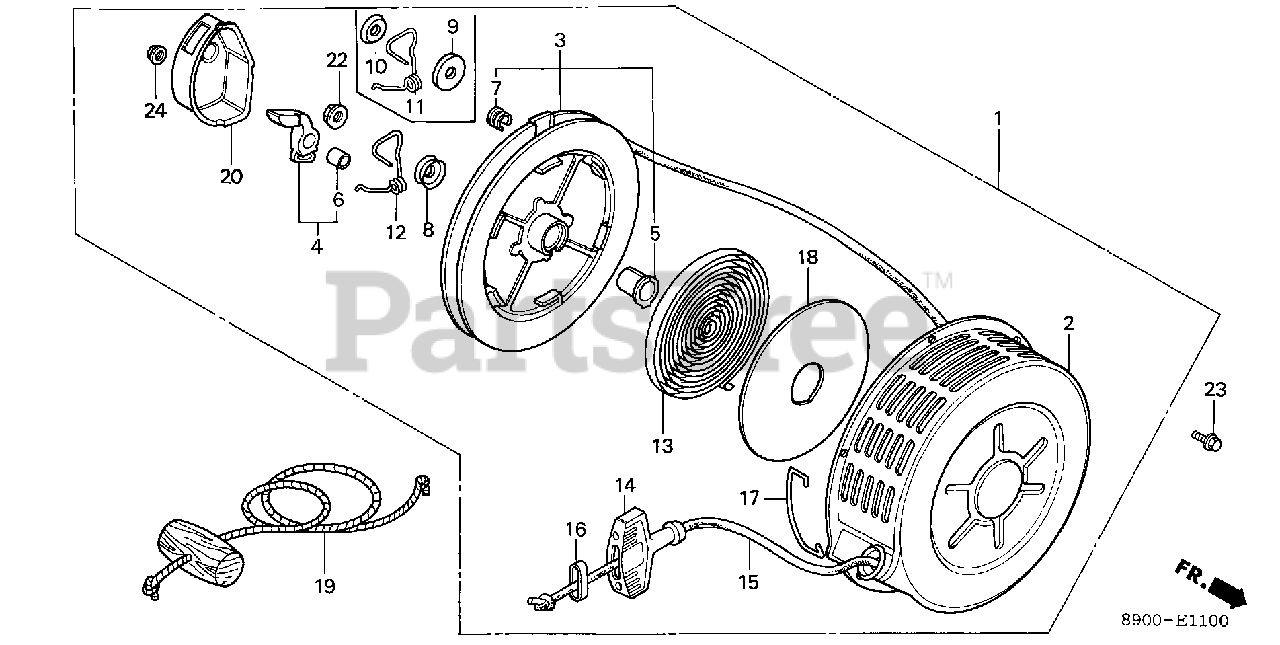

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-890-030ZC

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-890-505)

$

$

Not available

1

Honda 28400-890-030ZD

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$125.99

$

Usually ships in 3-6 days

0

2

Honda 28410-890-000H

CASE, STARTER

$

$

Currently unavailable

3

Honda 28420-890-010

REEL, STARTER

Note: (Optional).

$

$

Currently unavailable

4

Honda 28422-890-003

RATCHET (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

5

Honda 28424-890-300

BOSS, REEL

Note: (Optional).

$

$

Currently unavailable

6

Honda 28425-890-300

BUSH, RATCHET (NOT AVAILABLE)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 28427-883-300

BUSH, REEL STARTER

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 28431-890-000

PLATE A, FRICTION

Note: (Optional).

$

$

Currently unavailable

10

Honda 28432-890-000

PLATE B, FRICTION

Note: (Optional).

$

$

Currently unavailable

11

Honda 28441-890-020

SPRING, FRICTION

Note: (Optional).

$

$

Not available

13

Honda 28442-890-000

SPRING, RETURN

Note: (Optional).

$

$

Not available

14

Honda 28461-883-000

GRIP, STARTER

Note: (Optional).

$8.99

$

In Stock, only 1 left!

0

15

Honda 28462-890-000

ROPE, STARTER

Note: (Optional). Use up to Engine SN 1006330.

$11.99

$

Usually ships in 3-6 days

0

15

Honda 28462-890-010

ROPE, STARTER

Note: Use from Engine SN 1006331.

$11.99

$

Usually ships in 3-6 days

0

16

Honda 28463-883-000

SUPPORT, GRIP

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

17

Honda 28466-890-010

HOLDER, ROPE (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

18

Honda 28467-890-000

PLATE, SIDE

Note: (Optional).

$

$

Currently unavailable

20

Honda 28474-890-010

COVER, STARTER REEL

Note: (Optional).

$

$

Currently unavailable

22

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (CLINCH)

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

23

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

Note: (Optional).

$1.99

$

In Stock, Qty 5

0

24

Honda 94050-06080

NUT, FLANGE (6MM)

Note: (Optional).

$0.99

$

In Stock, Qty 12

0
