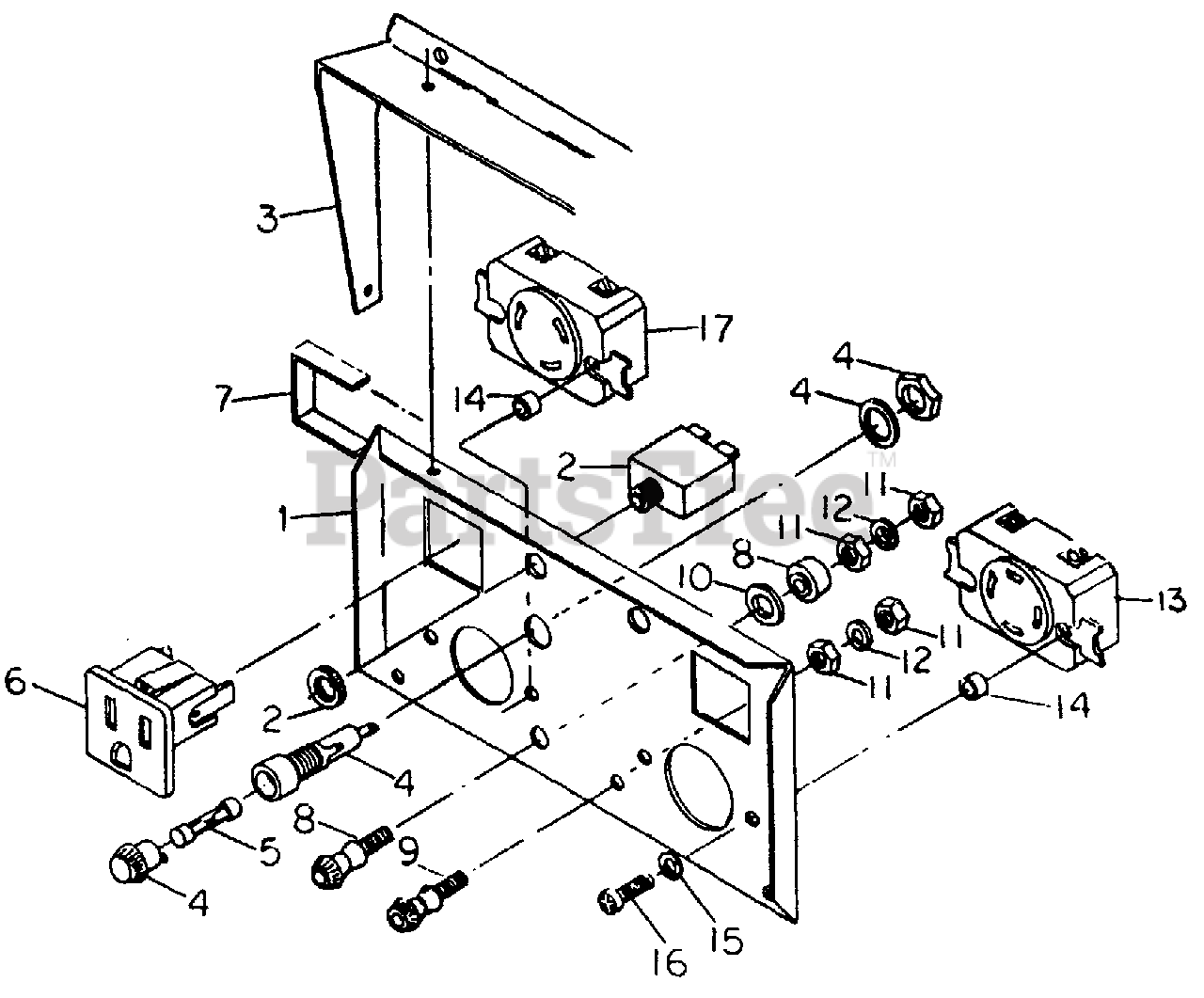

G4050 (8751-2) - Generac 4,000 Watt Portable Generator Panel Manual Start Units Parts Diagram

4,000 Watt Portable Generator

Panel Manual Start Units Parts Diagram

  • Title

1

Briggs & Stratton 61794B

PANEL

$

$

Currently unavailable

2

Briggs & Stratton 56286

BREAKER, Circuit - 15 Ampere

$

$

Not available

3

Briggs & Stratton 61485B

HOOD, Panel

$

$

Currently unavailable

4

Briggs & Stratton 22669

HOLDER, Fuse

$

$

Currently unavailable

5

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

6

Briggs & Stratton 22693

RECEPTACLE - 120 Volts AC
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 27272

RETAINER, Receptacle

$

$

Currently unavailable

8

Briggs & Stratton 25367

POST, Battery Charge (Red)
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27368

POST, Battery Charge (Black)

$

$

Currently unavailable

10

Briggs & Stratton 30798

WASHER (Fiber)

$

$

Currently unavailable

11

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

13

Briggs & Stratton 43482

RECEPTACLE - 240 Volts AC, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 25909

SPACER (Nylon)
(Superseded to 25909GS)

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22155

WASHER, Lock - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 36901

SCREW - No. 6-32 x 3/8"

$

$

Currently unavailable

17

Briggs & Stratton 37807

RECEPTACLE - 120 Volts, 30 Ampere

$

$

Currently unavailable

Briggs & Stratton A25383

CABLE ASSEMBLY, Battery Charging

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, Connector - 120 Volts AC, 30 Ampere
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector - 240 Volts AC, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
