G42 K1 RD (G42) - Honda Engine, Made in Japan (SN: G42-2103869 - G42-2191278) FUEL TANK Parts Diagram

Engine, Made in Japan

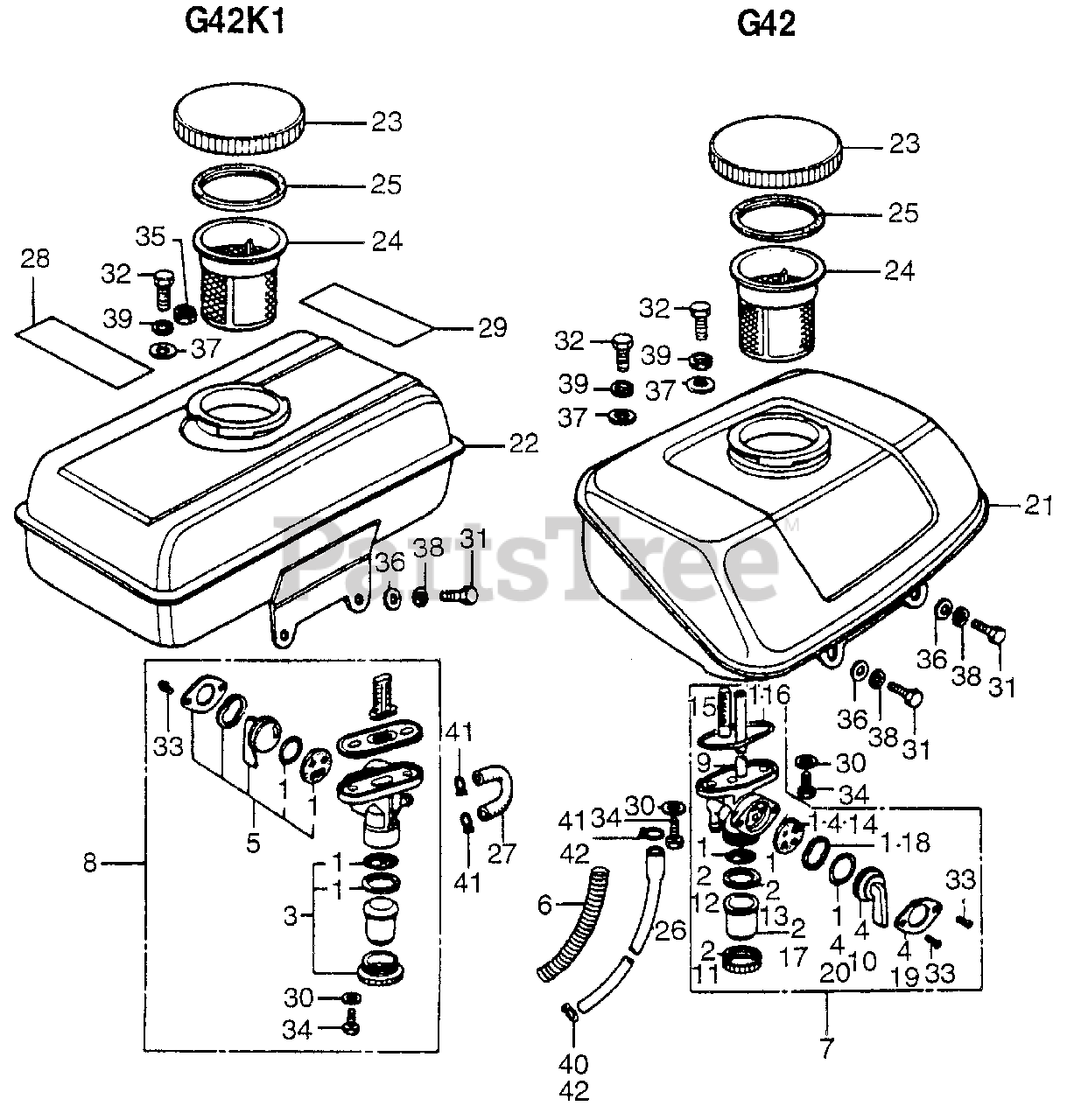

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-865-005

GASKET SET, VALVE

Note: Use from Engine SN 1076268.

$36.99

$

In Stock, only 1 left!

0

3

Honda 16081-865-015

SEE PART DETAILS - SUP; CUP SET, STRAINER
(Superseded to 16081-865-305)

$32.99

$

Usually ships in 3-6 days

0

5

Honda 16082-843-005

LEVER SET, VALVE (NOT AVAILABLE)

$

$

Not available

6

Honda 16236-865-020

SPRING, FUEL TUBE (NOT AVAILABLE)

Note: Use up to Engine SN 1117087.

$

$

Currently unavailable

8

Honda 16950-865-701

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

22

Honda 17500-865-663XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 17650-805-750

CAP, FUEL TANK (NOT AVAILABLE)

$

$

Not available

24

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

25

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

27

Honda 17685-865-030

TUBE, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

29

Honda 87561-880-600

MARK, CAUTION (CO)(ENGLISH/FRENCH)(SPANISH)

Note: Use from Engine SN 2165921.

$4.99

$

In Stock, Qty 7

0

30

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.49

$

In Stock, only 2 left!

0

31

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

32

Honda 92101-08020-0A

BOLT, HEX. (8X20)

Note: Use up to Engine SN 2001782.

$1.99

$

Usually ships in 3-6 days

0

33

Honda 93500-03008-0A

SCREW, PAN (3X8)

$0.99

$

In Stock, only 1 left!

0

34

Honda 93500-06016-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X16)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94030-08000

NUT, HEX. (8MM)

Note: Use from Engine SN 2001783.

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

37

Honda 94101-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

38

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0
