G42 K1 RD (G42) - Honda Engine, Made in Japan (SN: G42-2103869 - G42-2191278) G42 1/2 REDUCTION CLUTCH II K1 Parts Diagram

Engine, Made in Japan

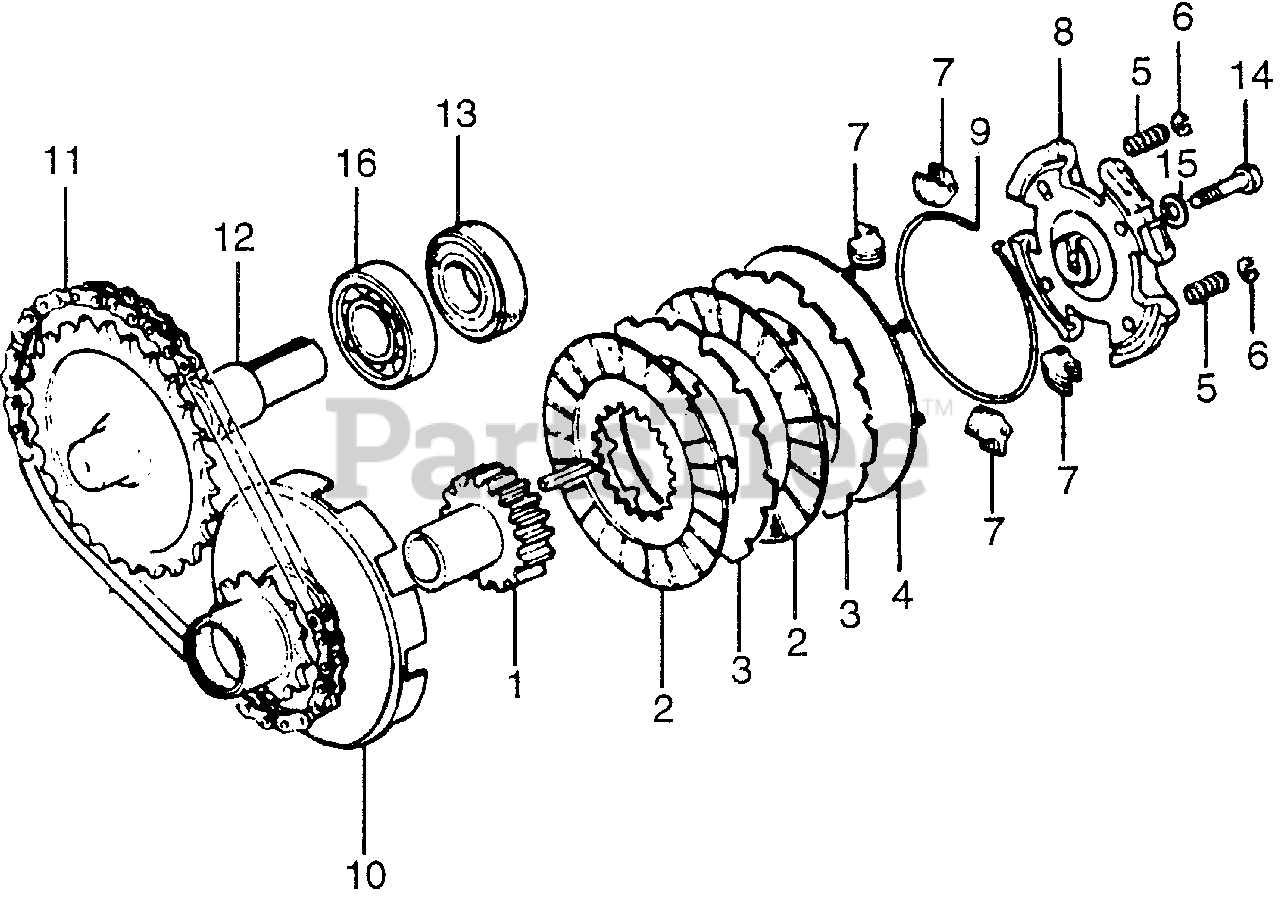

G42 1/2 REDUCTION CLUTCH II K1 Parts Diagram

  • Title
1

Honda 22121-822-610

CENTER, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 22201-822-306

DISK, CLUTCH FRICTION

$37.99

$

In Stock, Qty 5

0

3

Honda 22311-822-610

PLATE, CLUTCH

$21.99

$

In Stock, Qty 5

0

4

Honda 22350-822-610

PLATE, CLUTCH PRESSURE

$27.99

$

In Stock, only 2 left!

0

5

Honda 22411-822-611

SPRING, CLUTCH FREE

$3.99

$

Usually ships in 3-6 days

0

6

Honda 22421-822-610

HOLDER, CLUTCH SPRING

$1.99

$

In Stock, only 1 left!

0

7

Honda 22521-822-610

WEIGHT, CLUTCH

$4.49

$

Usually ships in 3-6 days

0

8

Honda 22531-822-612

HOLDER, CLUTCH WEIGHT (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 22535-822-610

CENTER, CLUTCH WEIGHT

$2.99

$

Usually ships in 3-6 days

0

10

Honda 23120-822-610

SPROCKET, DRIVE

$

$

Currently unavailable

11

Honda 23161-822-611

CHAIN, DRIVE (RK428SH-36LE)

$57.99

$

Usually ships in 3-6 days

0

12

Honda 23711-822-610

SHAFT, P.T.O. (28T)

$63.99

$

Usually ships in 3-6 days

0

13

Honda 91202-805-610

SEE PART DETAILS - SUP; OIL SEAL (PJ30507)
(Superseded to 91202-Z2F-801)

$10.99

$

In Stock, Qty 20+

0

14

Honda 92101-08035-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X35)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 96100-62050-10

BEARING, RADIAL BALL (6205)

$24.99

$

Usually ships in 3-6 days

0
