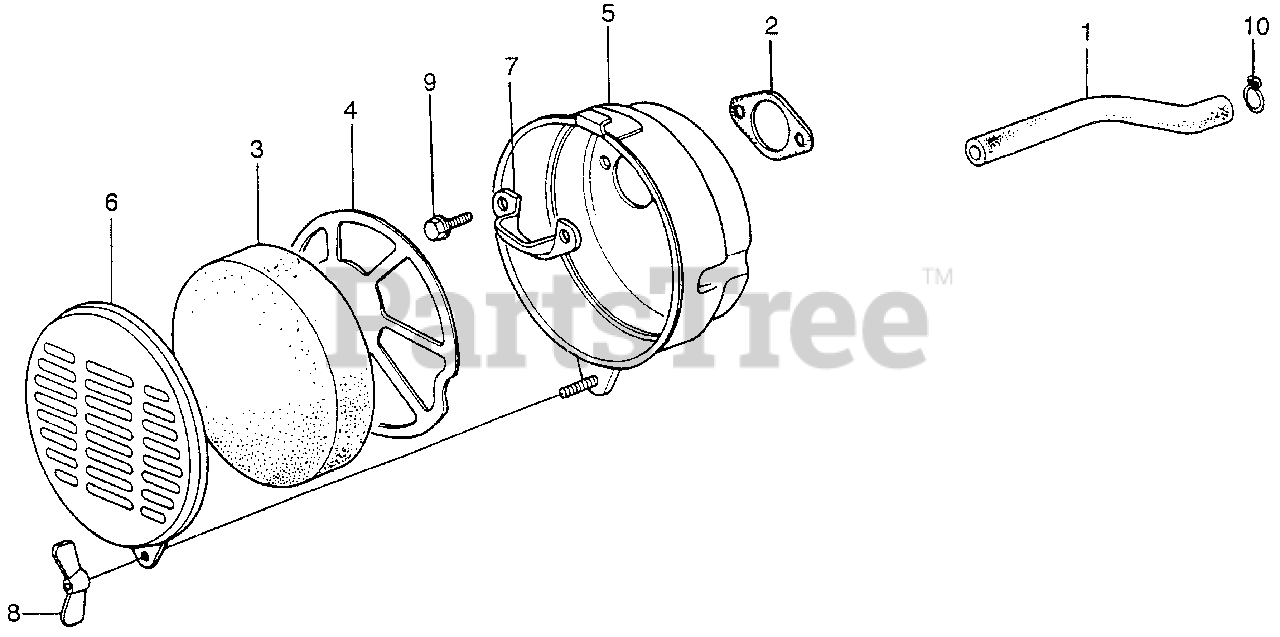

G65 K2 RD1 (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) GK2/SK2 ADVANCER Parts Diagram

Engine, Made in Japan

GK2/SK2 ADVANCER Parts Diagram

  • Title

1

Honda 12381-873-000

TUBE, BREATHER

$

$

Not available

2

Honda 16269-823-000

SEE PART DETAILS - SUP; GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 17211-823-680

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$

$

Not available

4

Honda 17212-810-000

GRID, CLEANER (NOT AVAILABLE)

$22.99

$

Usually ships in 3-6 days

0

5

Honda 17220-873-000H

HOUSING, AIR CLEANER *R8* (BRIGHT RED) (NOT AVAILABLE)

$44.99

$

Usually ships in 3-6 days

0

6

Honda 17231-873-000H

COVER, AIR CLEANER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17235-873-000

PLATE, BAFFLE

$

$

Currently unavailable

8

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

$5.99

$

In Stock, Qty 12

0

9

Honda 92000-06012

SEE PART DETAILS - SUP; BOLT, HEX. (6X12)

Note: Use up to Engine SN 3081455.

$

$

Currently unavailable

9

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

Note: Use up to Engine SN 3081455.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Engine SN 3081456.

$2.49

$

In Stock, only 4 left!

0

10

Honda 95002-02130

CLIP, TUBE (B12.5)

$1.99

$

In Stock, Qty 10

0
