G65 Q (G65) - Honda Engine, Made in Japan (SN: G65-1000025 - G65-1115197) G65/GS65CARBURETOR Parts Diagram

Engine, Made in Japan

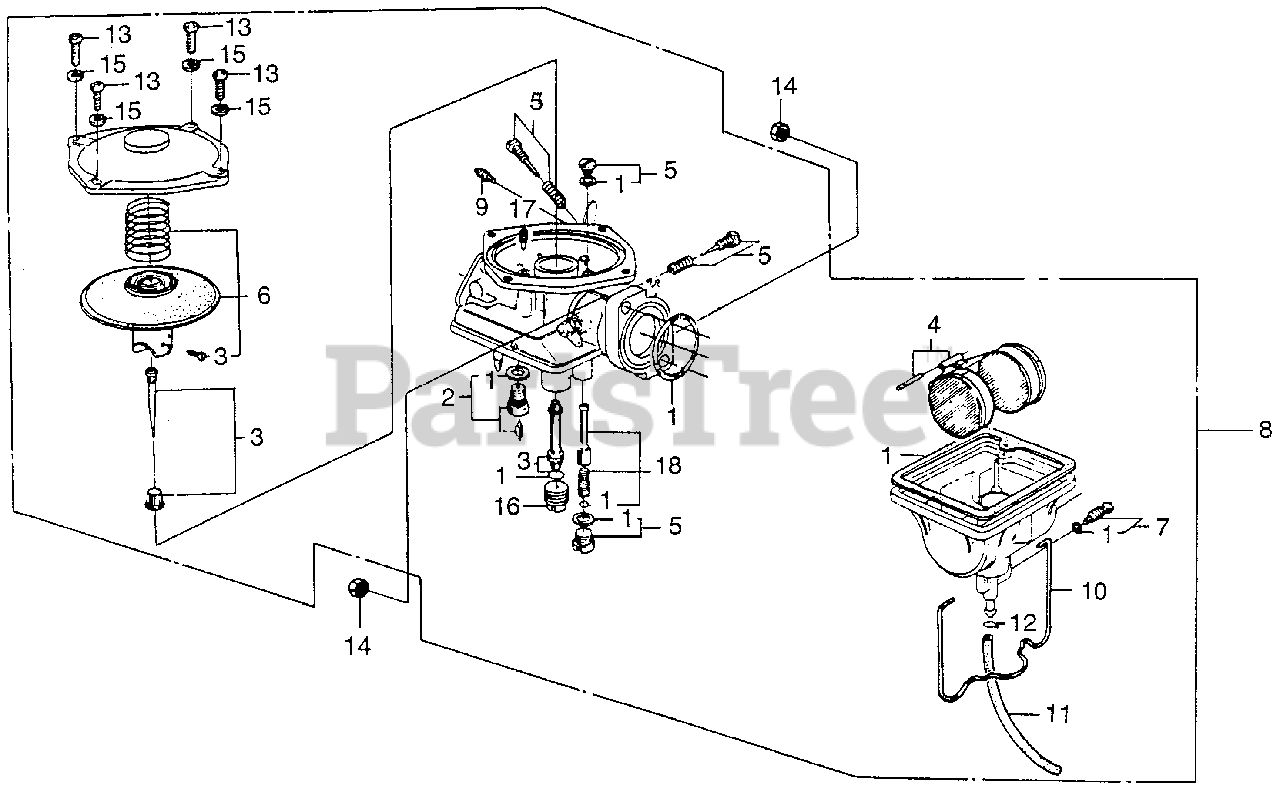

G65/GS65CARBURETOR Parts Diagram

  • Title

1

Honda 16010-822-004

GASKET SET

$

$

Not available

2

Honda 16011-355-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$24.99

$

Usually ships in 3-6 days

0

3

Honda 16012-823-004

NEEDLE SET, JET (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16013-822-004

SEE PART DETAILS - PRI; FLOAT SET (NOT AVAILABLE)

$

$

Not available

5

Honda 16016-823-000

SCREW SET

$

$

Currently unavailable

6

Honda 16022-823-004

VALVE SET, THROTTLE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16024-707-004

SCREW SET, DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16100-823-000

CARBURETOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16169-823-004

SCREW

$

$

Not available

10

Honda 16187-822-004

CLIP, FLOAT CHAMBER SET

$

$

Not available

11

Honda 16235-805-000

PIPE, OVERFLOW

Note: Use up to Engine SN 1066000.

$

$

Currently unavailable

11

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X150)

Note: Use from Engine SN 1066001.

$29.99

$

Usually ships in 3-6 days

0

12

Honda 90605-921-000

CLIP B7, TUBE

$1.49

$

In Stock, only 2 left!

0

13

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

14

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

14

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 99114-822-0820

JET, MAIN (#82)

$

$

Currently unavailable

16

Honda 99114-822-0850

JET, MAIN (#85)

$

$

Not available

16

Honda 99114-823-0900

JET, MAIN (#85)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 99114-823-0920

JET, MAIN (#92)

$

$

Not available

16

Honda 99114-823-0950

JET, MAIN (#95)

$

$

Not available

16

Honda 99114-823-0980

JET, MAIN (#98)

$

$

Not available

16

Honda 99114-823-1000

JET, MAIN (#100)

$

$

Not available

17

Honda 99134-548-0700

JET, AIR

$

$

Not available

18

Honda 99204-822-0400

JET SET, PILOT (#40)

$

$

Currently unavailable
