G80 HD1 (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) 1/6 REDUCTION (HD1 TYPE) Parts Diagram

Engine, Made in Japan

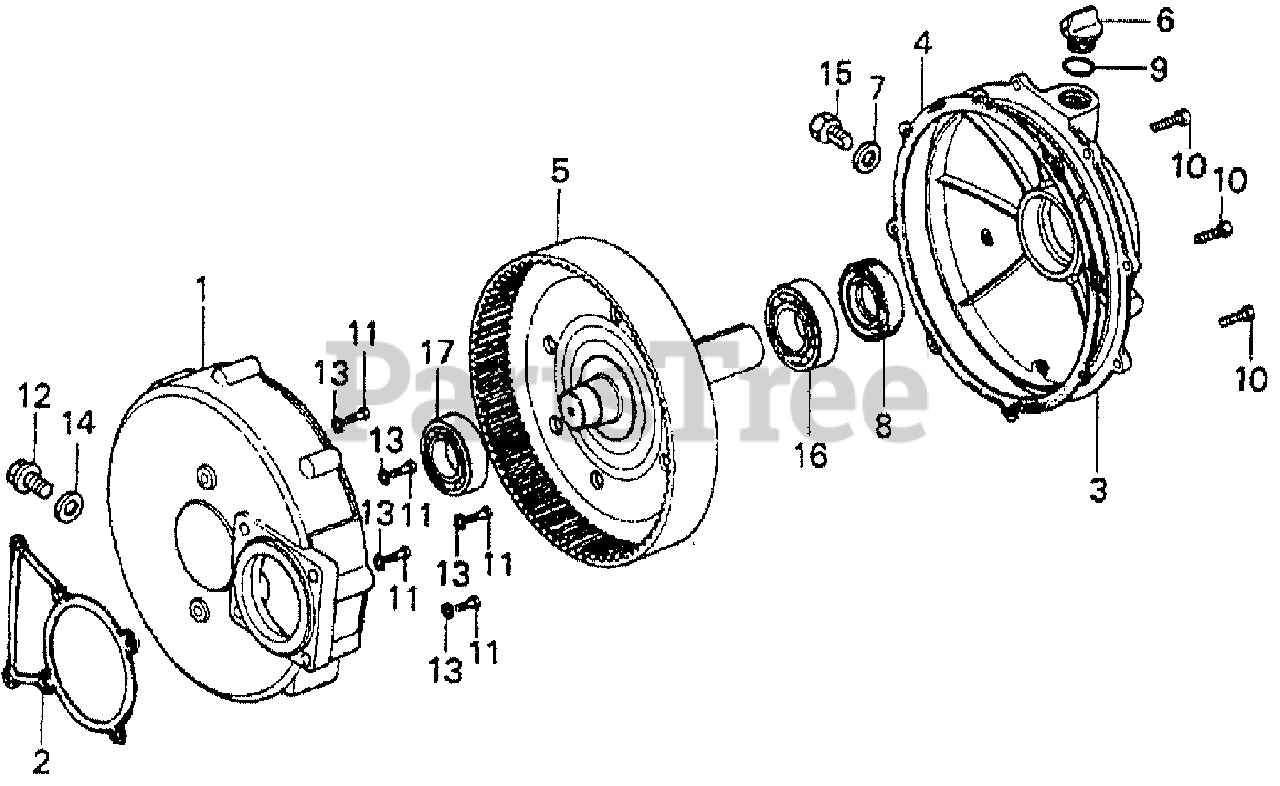

1/6 REDUCTION (HD1 TYPE) Parts Diagram

  • Title

1

Honda 21521-811-660

CASE, REDUCTION

$

$

Not available

2

Honda 21591-809-610

GASKET, REDUCTION CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 21621-811-660

COVER, REDUCTION

$

$

Not available

4

Honda 21692-811-660

GASKET, REDUCTION COVER

$

$

Not available

5

Honda 23710-811-660

SHAFT, P.T.O.

$

$

Not available

6

Honda 25621-807-730

CAP, OIL

$

$

Not available

7

Honda 90478-700-000

WASHER A (6MM)

$0.99

$

Usually ships in 3-6 days

0

8

Honda 91202-805-610

SEE PART DETAILS - SUP; OIL SEAL (PJ30507)
(Superseded to 91202-Z2F-801)

$10.99

$

In Stock, Qty 20+

0

9

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

10

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 92101-08032-0B

BOLT, HEX. (8X32)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$4.99

$

In Stock, only 3 left!

0

13

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

16

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$22.99

$

In Stock, only 3 left!

0

17

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$28.99

$

Usually ships in 3-6 days

0
